WYBOTICS WY350 User Manual

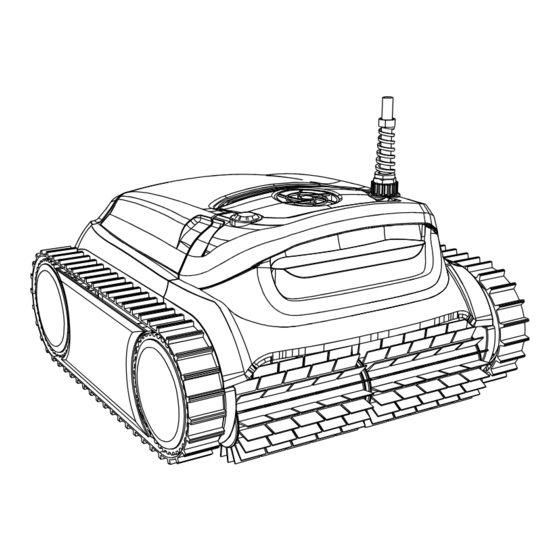

Automatic swimming pool cleanerr
Hide thumbs Also See for WY350:

Advertisement

Quick Links

Download this manual
EN
AUTOMATIC SWIMMING POOL
CLEANERR
User Manual
WY350

Advertisement

loading
Need help?

Need help?

Do you have a question about the WY350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WYBOTICS WY350

Summary of Contents for WYBOTICS WY350

  • Page 1 AUTOMATIC SWIMMING POOL CLEANERR User Manual WY350...
  • Page 2 READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Thank you for purchasing WYBOTICS Robotic Pool Cleaner. If you have any question or issue, please contact us for customer service.

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions ...........01 1. Brief introduction to product ..........03 2. Packing List ................04 3. Schematic diagram of product ..........05 4. Specifications and parameters ..........06 5. Instructions for use ...............07 LIMITED WARRANTY ..............15...

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. When the cleaner is placed on shore or is taken out from the pool, please make sure to turn off the power supply, otherwise it will easily cause serious damage to the cleaner. 2. The power cord of the cleaner must be plugged into the socket with leakage protection device.
  • Page 5 8. Non-professionals shall not disassemble the main machine body of the cleaner and the power supply control box at will, to avoid danger or avoid damage to the cleaner. 9. To prevent accidents, it is recommended that the power supply box should be connected to the fixtures beside the pool with safety ropes before use.

  • Page 6: Brief Introduction To Product

    1. Brief introduction to product WY350 is a high-end series product, which integrates the most advanced technology of swimming pool cleaning robot, including sensor integration, intelligent path planning, self-adaption to swimming pool, super obstacle-surmounting capacity, high-efficiency dirt suction, remote control and upgrade functions. It is suitable for large/medium swimming pools.

  • Page 7: Packing List

    2. Packing List Name Specifications Quantity (pieces) Main machine body of the cleaner WY350 Power supply box Power I 130 User Manual Quick guide manual Certificates of conformity...

  • Page 8: Schematic Diagram Of Product

    3. Schematic diagram of product Roller Handle Filter basket Swivel Floating Cord Power Supply Unit...

  • Page 9: Specifications And Parameters

    4. Specifications and parameters 1. Model WY350 2. Rated input voltage 100~240VAC, 50Hz/60Hz 3. Rated output voltage DC 28V 4. Rated power 100W Pool bottom mode/wall mode/whole 5. Working modes pool mode/waterline mode 6. Cable length 7. Filtration volume About 15m³/h 8.

  • Page 10: Instructions For Use

    5. Instructions for use 5.1 Setup a. Attach the blue cable to the power supply by inserting it with the notch on the connector, lined up to the groove in the socket on the power supply, turn it clockwise. b. The power supply control box must be placed in a suitable position to ensure that the cleaner can reach every corner of the swimming pool.
  • Page 11 5.2 When putting the cleaner into the swimming pool, the bottom of the cleaner shall face the pool wall a. Hold the handle and put the cleaner into the water. And the cleaner will slowly discharge the gas (the gas in the cleaner must be completely discharged, otherwise it will affect the normal operation of the machine).
  • Page 12 b. Turn the power supply on, wait for 15 seconds, the robot will begin working. 5.3 Acquisition of mobile App and connection 5.3.1 Scan the QR code to download the APP...
  • Page 13 5.3.2 Download the App in app store 1. In case of Android phones, search google play for WYBOT, and download it. 2. In case of iPhone, searches the app store for WYBOT, download it. 5.3.3 After the connection between the APP and the machine is successful, the APP will give a "Success"...
  • Page 14 5.4.1 Power button: press it long: start-up/shutdown Press it short: (after startup) standby/automatic operation. Optional Configuration button: it is used with APP, the default function is WIFI configuration. Press the button long, and the function will take effect. And connect with the Bluetooth according to the user name and password sent by APP.
  • Page 15 5.5 Remove the pool cleaner from the water a. Turn off the power supply. b. When taking out the cleaner from the pool, you only can hold the handle, do not pull the cable.
  • Page 16 5.5 Clean the filter a. After cleaning is completed, take out the cleaner from the swimming pool, press the button at the tail, the upper cover will automatically bounce off, lift the upper cover, take out the filter basket, pour out the sundries inside it.
  • Page 17 b. Clean the filter basket. c. Re-install the filter basket. Pay attention to the installation position and close the top cover.

  • Page 18: Limited Warranty

    LIMITED WARRANTY WYBOTICS ROBOT, owned by WYBOTICS CO., LTD, makes products at the best quality we can offer. All WYBOTICS products have been inspected against defects in materials and workmanship prior to leaving factory. WYBOTICS is happy to offer warranty for the repair or replacement of pool products for two (2) years on motor and PCB from the date of purchase.
  • Page 19 This Limited Warranty is not extended to close-outs, factory seconds, or resold products (i.e., garage sales, online auctions, or online retailers not purchased directly from WYBOTICS). Any issue with items purchased from these types of vendors/sellers will need to be addressed through these stores.
