- Page 1 USER MANUAL WT1 – V1.3 Updates INDEX DATE (MM/YYYY) MODIFIED PAGES NOTES 06/2020 All pages WT1 V1.3 initial release 04/2022 All pages Certification adaptation + rebranding WT1 V1.3 - User Manual 1 /33...
- Page 2 WT1 V1.3 - User Manual 2 /33...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SAFETY INFORMATIONS COPYRIGHT WARRANTY UTILITES AND FEATURES General view of the ELLONA WT1 ELLONA WT1 specifications ELLONA WT1 diagram and dimensions Assistance INSTALLATION PROCEDURE Unboxing the system Installation 6.2.1 Preparation before installation ........................13 6.2.2 Installation of the device ..........................14 Electrical supply of the device 6.3.1... -
Page 4: Introduction
Attention, biological risk Warning, harmful or irritating See the documentation Wear protective goggles Wear protective gloves Unplug the device. Do not dispose of this electronic equipment with household waste, contact a sorting center. WT1 V1.3 - User Manual 4 /33... - Page 5 When using the WT1 system, follow the generally accepted procedure in the field of quality control and method development. It is the user's responsibility to inform Ellona maintenance personnel before any intervention when the instrument has been used in air containing harmful, toxic, radioactive or biological products.
- Page 6 Do not turn on the instrument if you think it has suffered electrical damage. Instead, unplug the power cord and contact a ELLONA representative for a product evaluation. Do not attempt to use the instrument until it has been evaluated.
-
Page 7: Copyright
ELLONA. 4 WARRANTY ELLONA warrants this product, parts and labor, for one year from the date of dispatch. If the product appears defective during the warranty period, ELLONA, at its discretion, undertakes either to repair the parts with free labor or to exchange the defective part. -
Page 8: Utilites And Features

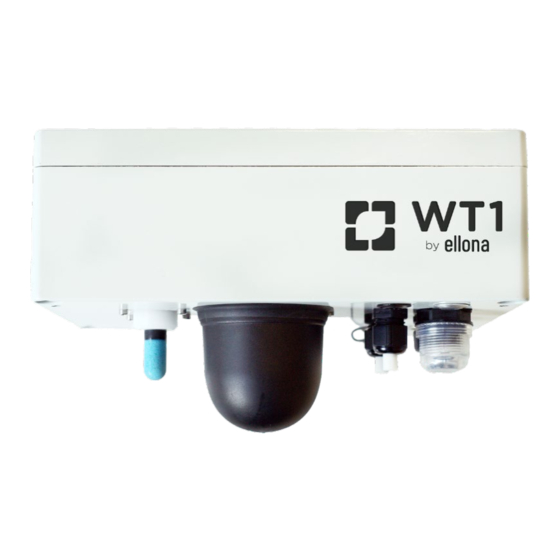

5 UTILITES AND FEATURES General view of the ELLONA WT1 The ELLONA WT1 is an outdoor device for the monitoring of odors, particles, air pollutants and gases. The instrument is based on a network of sensors: it is equipped with 4 MOS sensors and several electrochemical cells to choose according to the need. - Page 9 Figure 1 For maximum measurement quality, we strongly advise you to change the air filter every 2 months. The WT1 is originally delivered with another filter. WT1 V1.3 - User Manual 9 /33...
-
Page 10: Ellona Wt1 Specifications
4-20 mA signal “4-20 output” current Environmental specifications Typical Unit Commentaries Optimal operating °C See optimal temperature temperature range in 6.2.1 Optimal humidity See optimal humidity conditions range in 6.2.1 Altitude 4000 WT1 V1.3 - User Manual 10 /33... -
Page 11: Ellona Wt1 Diagram And Dimensions
ELLONA WT1 diagram and dimensions Note: dimensions are measured in mm. Also, depending on the version of the WT1, the position of the air outlet, sockets and modules may vary. Figure 2 Figure 3 WT1 V1.3 - User Manual 11 /33... -
Page 12: Assistance
Figure 4 Assistance You can download and print the WT1 user guide (PDF) from the Partners Repository. For any questions, we invite you to contact us by e-mail: service@ellona.io or via our website: www.ellona.io/contact. WT1 V1.3 - User Manual 12 /33... -
Page 13: Installation Procedure
Use the list provided to make sure that everything is available. Installation Before starting the installation of the Ellona WT1, verify that the safety standards, rules and procedures are well respected. This includes obtaining permissions to install the device and viewing the safety data sheets. -
Page 14: Installation Of The Device
There are 4 fixing screws with a maximum diameter of 6 mm. See figures (Figure 5 to Figure 8). First screw the fixing piece onto the wall and then mount the WT1 on it (using 4 5mm Allen head screws). Figure 5 WT1 V1.3 - User Manual 14 /33... - Page 15 Use flanges of 55 or 60 mm wide and 6mm in diameter with appropriate washers. It is advisable to first install the flanges and the support on the pole and then the WT1 on the support. WT1 V1.3 - User Manual 15 /33...
- Page 16 Figure 9 Use of the protective shelter A protective shelter for the WT1 is available as an option. Ellona recommends its use. The protective shelter must be fastened directly to a wall or pole and then the WT1 is mounted inside (see figures 11 and 12).
-
Page 17: Electrical Supply Of The Device
Do not open the device. If you want to install a longer power cable, use an extension cable outside of the unit. 6.3.1 Color code of the power cables Neutral: Blue Phase/Line: Brown Figure 12 6.3.2 Main power supply WT1 V1.3 - User Manual 17 /33... -
Page 18: Solar Power Supply
The default ELLONA WT1 uses a power adapter that must be connected to an electrical source. The following features are required: Voltage: 100 to 240V AC Power: > 6W Frequency: 50-60 Hz Ellona recommends using only the power supply unit to supply the WT1. Its reference is 59RKPO-UK1201000CD-2 from IdealPower. - Page 19 Once the solar panel is installed, connect the wires as shown in figure 16: Connect the solar panel to the charger Connect the Y-cable (supplied with the unit) to the charger Connect the charger to the battery WT1 V1.3 - User Manual 19 /33...
- Page 20 6.3.2. Your system is ready to be used. BATTERY LIFE We currently recommend two battery types: 60Ah & 110Ah • 60Ah: 6 days battery life • 110Ah: 10 days battery life • WT1 V1.3 - User Manual 20 /33...
-
Page 21: Starting And Stopping The Device
Our reference: Limoges (France) Daily minimum number of sunshine hours Winter Fall Spring Summer 120W Daily minimum number of sunshine hours Winter Fall Spring Summer Starting and stopping the device 6.4.1 Starting procedure Figure 18 WT1 V1.3 - User Manual 21 /33... -
Page 22: Switching Off The Device
The WT1 requires Internet access to communicate the results obtained to the EllonaSoft platform. Different types of connection are possible: by Ethernet cable, by Wi-Fi, or by LTE- M/GPRS (if LTE-M fallback). These following steps explain how to choose the communication way of the WT1. WT1 V1.3 - User Manual 22 /33... -
Page 23: Commissioning
IP address in the address bar of an internet browser (Chrome, Firefox, Edge etc...): 192.168.4.1 6.5.4 Selecting the network configuration The page that appears allows the selection of the network configuration. All the following WT1 V1.3 - User Manual 23 /33... - Page 24 M2M SIM cards are not compatible with such data flow (1 pt./10 sec). This type of card can only be used for lower frequencies (approx. 1pt/5min). SIM card installation To install a new SIM card: WT1 V1.3 - User Manual 24 /33...
- Page 25 • Figure 22 Figure 23 LTE-M Configuration If the WT 1 is equipped with the LTE-M option, you can choose to select the WIFI mode or the LTE mode from the drop-down list. WT1 V1.3 - User Manual 25 /33...
- Page 26 Select the « LTE » option from the drop-down list. The options to manage access to the LTE- M network will be displayed. If the SIM card is provided by ELLONA, there is no need to modify these fields. Otherwise, use the information provided by the operator to fill them out.
- Page 27 Select « Apply » to validate the changes. A window will offer you to restart in the selected network configuration. Notifications The WT 1 is equipped with a status notification LED. The displayed color represents the status of the WT 1 or an alert level according to the following table: WT1 V1.3 - User Manual 27 /33...
- Page 28 Ethernet: check your cable’s connection or contact your network administrator. • During network disconnection, a data logger will store the data until the network returns and then upload the data to the Ellonasoft platform. WT1 V1.3 - User Manual 28 /33...
-
Page 29: Tedlar Bag Samples
A Tedlar bag can be connected to the WT1 with an adaptor (not included as a standard). All bag sizes are usable. You will locate the air inlet at the bottom of the WT1: Figure 31 Remove the filter by hand: Figure 32 WT1 V1.3 - User Manual 29 /33... -
Page 30: Use Of The Tedlar Bag
The analysis results of the Tedlar bag will be automatically and directly displayed on the EllonaSoft software. The data can be viewed at any time, you just need the precise time at which the Tedlar bar was plugged in. WT1 V1.3 - User Manual 30 /33... -
Page 31: Use Of An External Device
ELLONA is not responsible for the cable used to connect the 4 pins to an external device except for a single cable connected to a ELLONA sampling device. -
Page 32: On/Off Signal
Pins 1 and 2 are dedicated to the analog 4-20 mA output signal, knowing that the voltage applied for the current loop must be between 7.5 and 24 VDC. (Do not forget that this voltage must be supplied by the user). WT1 V1.3 - User Manual 32 /33... - Page 33 In the software, the analogue output will be applied to all available parameters of the WT1 (T°, electrochemical sensor, PM, CO ...) as well as the parameters of the odor unit (OU). WT1 V1.3 - User Manual 33 /33...
