Summary of Contents for FIREGAS FGS-USF27B75CC

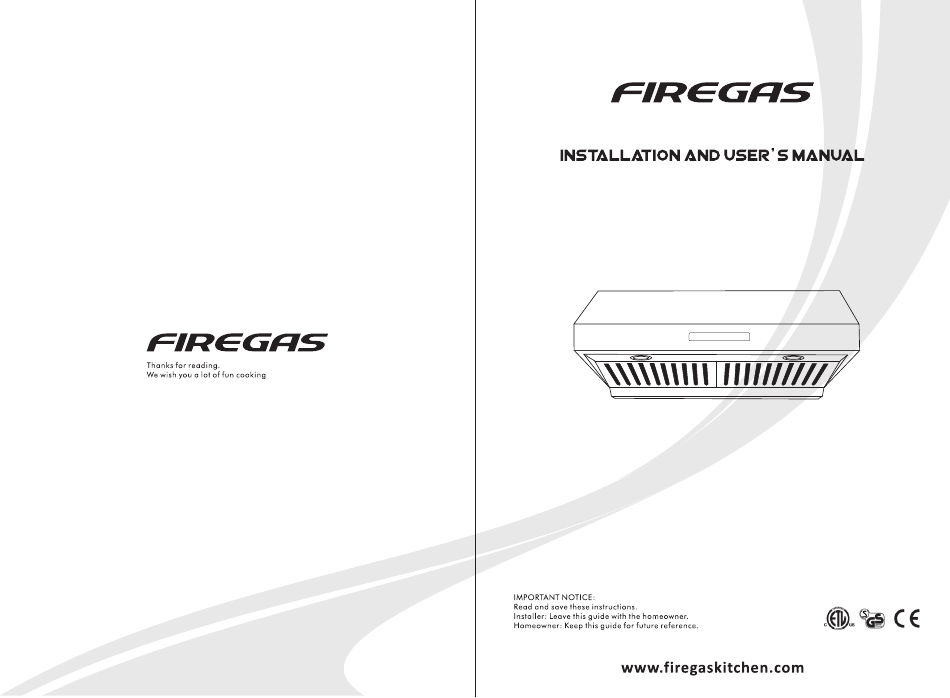

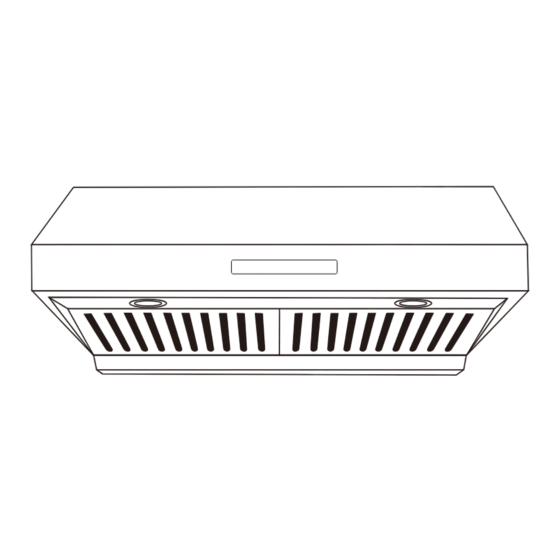

- Page 1 FGS-USF27B75CC...
- Page 2 Introduction CONTENT Thank you for choosing this cooker hood. This instruction manual is designed to provide you with all required Introduction ........................instructions related to the installation, use and maintenance of the appliance. Safety Precaution ....................
- Page 3 ToolsRequired Parts Diagram Pencil Measuring tape Hammer Core Unit Screwdriver Level Electric drill Duct Tape Installation Instructions Parts Supplied Prepare for installation: Mounting bracket 7" change to 6" Adapter Pipe DUCTED OPTION ×10 ×10 ×6 ×6 If you have an outlet to the outside, your cooker hood can be connected as above picture by means of a pipe (with an interior diameter of 150mm).
- Page 4 Installation Requirements Air Outlet Installation Method Installation method for 150mm diameter pipe: insert the one-way -value as the pic and fix the duct. φ150 Attention: The bump of the one- Adapter way-value must be upward. The pipe near the air outlet need to be fully extended.
- Page 5 Screw the anchor screws to Operation suitable location, then hook on, lock screws. Touch control Connect to the power, it access into standby mode with “Bi”sound. LED screen shows time in blue color and only light button can be Install baffle filters: operated .
- Page 6 Maintenance Trouble-Shooting Before cleaning switch the unit off and pull out the plug. Fault Cause Solution I. Regular Cleaning The fan blade is jammed. Switch off the unit and Light on,but fan repair by qualified Use a soft cloth moistened with hand-warm mildly soapy water does not work The motor is damaged.
