Technical data, Facette Star 500, Part no. W03.00000
Supply voltage
Motor power
Speed regulation
Carriage stroke
Table support surface
Chamfer height in one operation
Workpiece thickness
Workpiece weight
Machine weight
Housing and controller are earthed.
Standard equipment included
Je 1
Allen key 6 / 8 / 10
2
Keys to Emergency stop button
1
Connection cable available for CH/EU/GB/US
Instruction manual
Instruction Manual
Chamfering Machine
500
230 V 50Hz / 110V 60Hz
Input 500W, 650W, Output 500W
1'200 bis 8'000 min
500 mm
L: 760mm
B:120 x 43 mm
0.1-5 mm stepless (see 3.10)
min. 1mm
max. 20 kg
58 kg
-1
stepless
Advertisement
Summary of Contents for Helbling & Co Facette Star 500

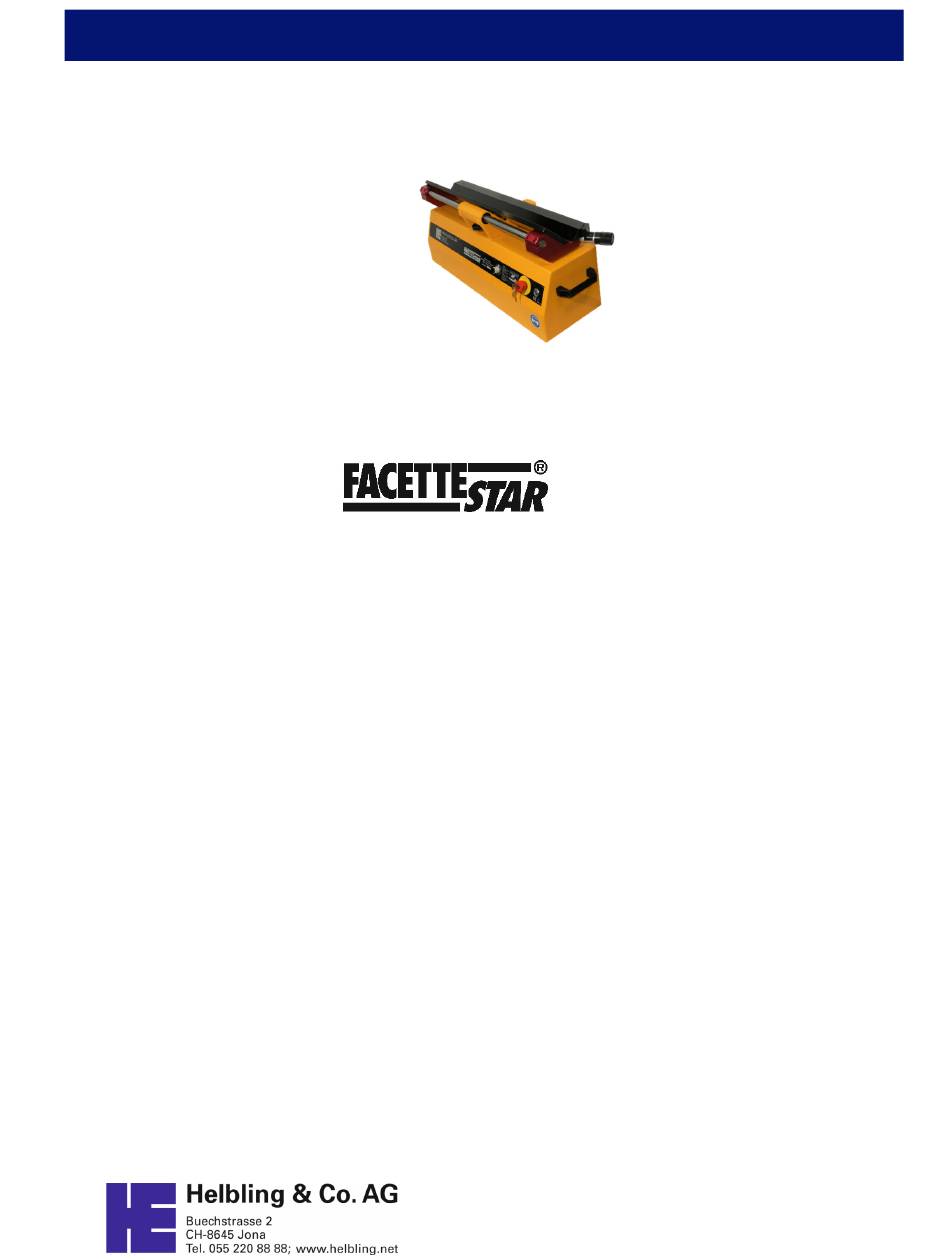

- Page 1 Instruction manual Instruction Manual Chamfering Machine Technical data, Facette Star 500, Part no. W03.00000 Supply voltage 230 V 50Hz / 110V 60Hz Motor power Input 500W, 650W, Output 500W Speed regulation 1‘200 bis 8‘000 min stepless Carriage stroke 500 mm...
- Page 2 Safety instructions Read the operating instructions before commissioning. Wear protective goggles. Wear hearing protection. Do not touch the rotating cutter. It may cause injury. Do not wear gloves when milling. Attention: If the table is folded up while the machine is running, the machine is automatically switched off by the inductive limit switch (76).
- Page 3 Intended use The chamfering machine is intended exclusively for milling bevels and edges. The parts must not weigh more than 20 kg and can be made of different materials (aluminium, steel, stainless steel, plastic, etc.). The machine may only be used in accordance with its intended purpose. Any other use beyond this is prohibited.
- Page 4 ( fig 1 Installation machine weighing approx. (110 model lbs) easily hand carried by two people. Reach for the two handles (28) to lift the machine and place it on a solid table or trolley with lockable cast. Ideal table heigt 75 cm (30").
- Page 5 Read from plate (60) the recommended position of the speed adjusting knob (55) for the material used and turn knob to this position. Move carriage fully to the right and place the piece to be chambered in the approximate center of the carriage. Push piece with both hands into the "V" formed by rail (6) and plate (7) (see fig.
- Page 6 Maintenance (fig. 1 and 2) The machine does not require any maintenance. We recommend however to lightly oil the guide bar (8) from time to time. When cleaning the machine be careful to avoid allowing chips to fall between the support ball bearings (12 and 16) and the sliding table bottom side.
- Page 7 Trouble shooting Helbling & Co. AG März 2021...
- Page 8 Spares (fig. 1 - 4) Pos. description Article-Number Housing W03.01001 Carriage holder complete W03.04100 Carriage holder, right W03.04501 Carriage holder, left W03.04502 Chamfer adjustment rail complete W03.04700 Support plate complete W03.04800 Shaft to ball bush 2.0088.00086 Base plate W03.04001 Large bearing pedestal, complete with felt wiper W03.04200 Small bearing pedestal, complete with felt wiper W03.04300...
-
Page 9: Front View
fig. 1 VIEW ON TOP FRONT VIEW Details see fig. 2 Details see fig. 2 Helbling & Co. AG März 2021... - Page 10 fig. 2 SECTIONAL DRAWINGS RELATING TO FIG. 1 SECTION B - B Workpiece SECTION A - A fig. 3 Helbling & Co. AG März 2021...
- Page 11 ASSEMBLY AND DISASSEMBLY OF TOOLINGS Wiring Diagramm fig. 4 Helbling & Co. AG März 2021...
- Page 12 Helbling & Co. AG März 2021...
