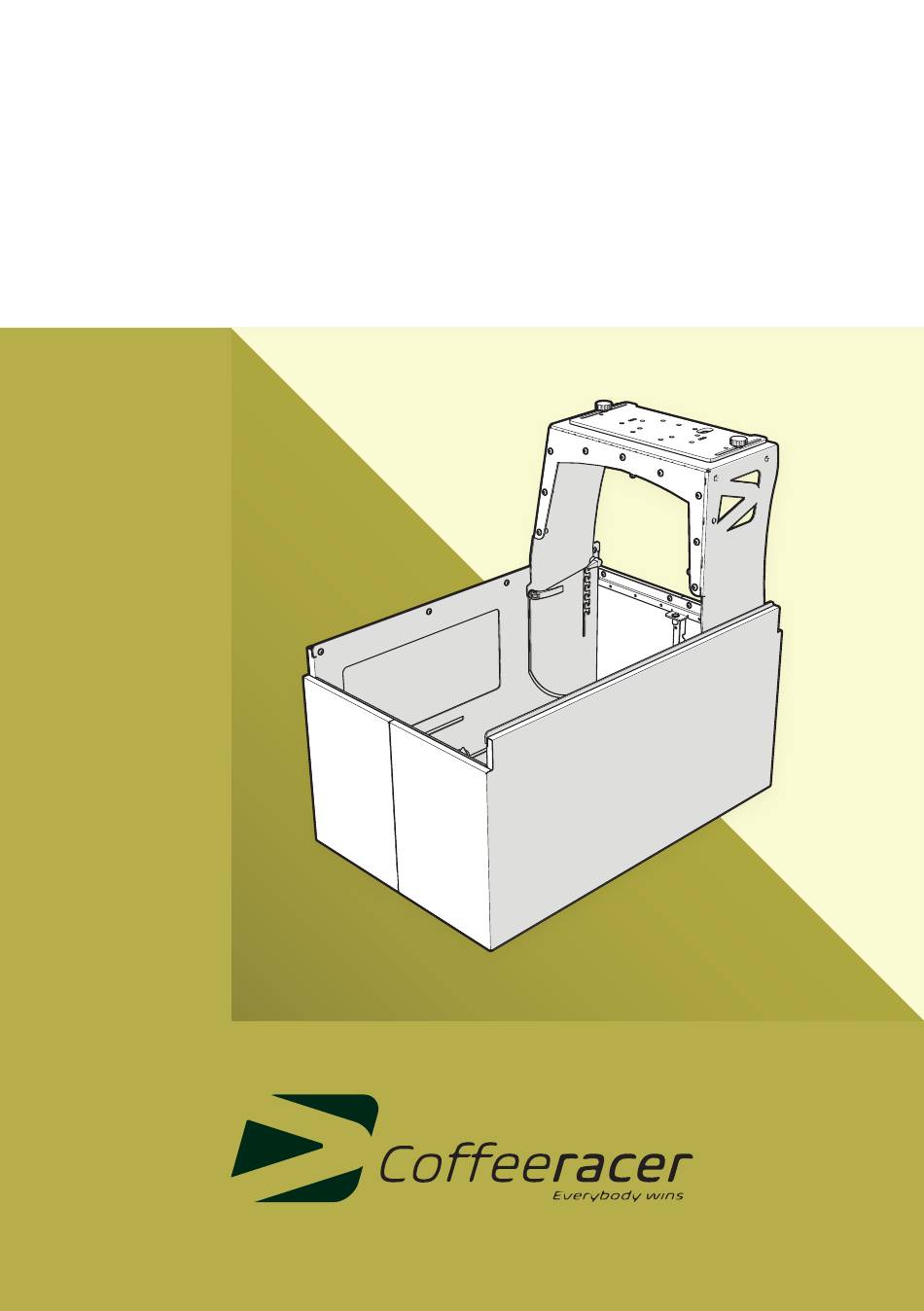

- Page 1 CoffeeRacer ‘Play’ USE R M ANUAL...
-
Page 2: Table Of Contents
After use Warranty 5.3.1 Unhook the chair mount (optional) Safety 5.3.2 Storing the pedals 5.3.3 Folding down the bridge Installation 5.3.4 Putting away the CoffeeRacer Delivery Troubleshooting Assembly 4.2.1 Installing the gusset Disposal 4.2.2 Installing the pedals 4.2.3 Installing the steering wheel Appendix I – Warranty 4.2.4... -
Page 3: Introduction
This symbol indicates a situation which, if not avoided, could result in damage to the product. Other symbols in this manual do not refer to safety. This symbol indicates information that might be useful to some users. CONTACT DETAILS Manufacturer CoffeeRacer E-mail info@CoffeeRacer.com Website CoffeeRacer.com CoffeeRacer ‘Play’ USER MANUAL... -
Page 4: Description
Adapter box Wheelbase plate Pedal plate Bridge Frame with panels SPECIFICATIONS Storage appearance File cabinet, side table Envisioned use PC racing, office / playroom Seat Desk chair, Couch & lounge chair Direct Drive wheelbases Yes, up to Simucube sport 2 (17NM) CoffeeRacer ‘Play’ USER MANUAL... -
Page 5: Warranty
1,25 mm Steel Fixings/clamps Clamping levers Exterior colour Black Metallic / White metallic Textured powder coating Interior colour Black metallic Textured powder coating Feet M10 Lockable Wheels Shipment Box 27 kg + box 21 kg Assembly Home, bolted WARRANTY The terms and conditions that apply to the CoffeeRacer can be found in Appendix I. CoffeeRacer ‘Play’ USER MANUAL... -
Page 6: Safety
Do not use sharp objects during unboxing to avoid damaging the powder coating. ● Protect the CoffeeRacer and the environment by assembling on a matt/rug. ● Make sure the screws go in straight. Do not apply force until the screw is completely in to avoid rethreading. CoffeeRacer ‘Play’ USER MANUAL... -
Page 7: Delivery
4× Black small head bolts Thumbscrews 4× Castor wheels ASSEMBLY NOTICE Wrong handling could damage the CoffeeRacer. Protect the CoffeeRacer and the environment by assembling on a matt/rug. Required tools: ● Ball end hex key 3 mm (included) ● Ball end hex key 4 mm (included) ● Spanner 17 mm (not included) CoffeeRacer ‘Play’ USER MANUAL... -
Page 8: Installing The Gusset
2. Pull up the bridge until it cannot go any further. 3. Tilt the bridge upright. 4. Pull up the bridge completely and hook the bridge in racing mode by tilting it rearwards and lowering it. 5. Fasten the bridge with the four quick releases. CoffeeRacer ‘Play’ USER MANUAL... -
Page 9: Installing The Pedals
You might need some force on the sides of the bridge to align all the holes. 2. Attach the gusset to the bridge with 9 flange bolts. 4.2.2 Installing the pedals First remove the pedal plate from the frame: 1. Remove the four hex bolts on the pedal plate. Keep the hex bolts nearby. 2. Slide the pedal plate out of the frame. CoffeeRacer ‘Play’ USER MANUAL... - Page 10 2. Place the pedal plate upside down on top of the pedal plate. 3. Insert the silver flange bolts in the pedal set through the pedal plate. Two screws on the front are tested to be sufficient. You can add more if the hole pattern allows. Finally, mount the pedal plate with the pedal set in the frame: 1. Slide the pedal plate into the frame. 2. Mount the pedal plate with the four hex bolts. CoffeeRacer ‘Play’ USER MANUAL...
-
Page 11: Installing The Steering Wheel
2. Pull the cables through the cable hole in the wheelbase plate. Don not forget to feed the pedal set cable as well. If your wheel is fitted with bottom connectors, continue. If your wheel is fitted with back connectors, start here: 1. Flip the wheelbase upside down. 2. Insert four silver countersunk bolts in the wheelbase through the wheelbase plate. CoffeeRacer ‘Play’ USER MANUAL... -
Page 12: Installing The Side Panels
● Do not tighten the bolts until they are all in place. Tightening early could warp the side panels. First, slide the pedal plate rearwards to make space. 1. Release the four quick releases on the pedal plate. 2. Slide the pedal plate rearwards. CoffeeRacer ‘Play’ USER MANUAL... - Page 13 5. Secure the side panels to each other by inserting the black small head bolts in the allocated slots. Fully tighten the bolts with the ball end of the hex key. 6. Repeat step 5 for the opposite side. 7. Fully tighten all the black flange bolts between the side plates and the frame. CoffeeRacer ‘Play’ USER MANUAL...
-
Page 14: Installing The Castors
Do not overtighten when mounting the castor wheels. 4.2.6 Installing the adapter box If the adapter is large, put the adapter in the box. Use the Velcro strap to fix the adapter into place. Then install the adapter box on the frame. 1. Slide the adapter box between the frame and the side panel. 2. Mount the adapter box to the frame with 2 flange bolts. CoffeeRacer ‘Play’ USER MANUAL... -
Page 15: Feeding The Cables
5. Secure the cable sock with cables to the hooks under the bridge with the cable ties. 6. Feed the power cable and USB cable through the cable output towards the power outlet and your gaming device. CoffeeRacer ‘Play’ USER MANUAL... -
Page 16: Installing The Desk Chair Mount (Optional)
4.2.8 Installing the desk chair mount (optional) This requires the optional desk chair mount. Mounting plates Grabbing bracket 3 Male quick release handle Arms 5 Female quick release handle Felt strip Make sure your desk chair has a flat bottom and the following hole pattern: 200 mm CoffeeRacer ‘Play’ USER MANUAL... - Page 17 3. Slide the arms with the grabbing bracket onto the mounting plates on the underside of the chair. 4. Secure the arms to the mounting plates with the four female quick release handles. 5. Ensure the arms are completely parallel by moving the mounting plate into the right position. 6. Tighten the screws you attached in step 3. CoffeeRacer ‘Play’ USER MANUAL...
-
Page 18: Finalising The Installation
Slide the pedals to the folded position. The position depends on your type of racing wheel (see Appendix II). 1. Release the four quick releases on the pedal plate. 2. Slide the pedals forwards to the folded position. Some pedal sets require moving rearwards to the folded position. See Appendix II for a list of tested wheels. CoffeeRacer ‘Play’ USER MANUAL... - Page 19 2. Pull up the bridge and push it towards the front of the CoffeeRacer. 3. Lower the bridge. 4. Tilt the bridge downwards and lower it until it cannot go further. 5. Fasten the four quick releases on the bridge. Finally, place the lid on top to close the CoffeeRacer. You may need to remove the steering wheel from the wheelbase to fit inside the CoffeeRacer. CoffeeRacer ‘Play’ USER MANUAL...
-
Page 20: Use
1. Release the four quick releases on the bridge. 2. Pull up the bridge until it cannot go any further. 3. Tilt the bridge upright. 4. Pull up the bridge completely and hook the bridge in boarding mode by tilting it forward. The wheelbase plate may have been adjusted to fit inside the CoffeeRacer. Do not forget to re-adjust this to your desired racing position. CoffeeRacer ‘Play’ USER MANUAL... -
Page 21: Setting The Pedals
3. Change the angle of the pedal plate to the desired position. 4. Fasten the four quick releases on the pedal plate. 5.1.3 Hook on the desk chair mount (optional) This requires the optional desk chair mount. CAUTION Risky of injury. Watch your fingers when hooking on the desk chair mount. 1. Release the four quick releases on the underside of the desk chair mount. 2. Slide out the desk chair mount from under the chair. 3. Tighten the four quick releases on the underside of the desk chair mount. CoffeeRacer ‘Play’ USER MANUAL... -
Page 22: Using The Coffeeracer
5. Make sure the height of the desk chair is set so the desk chair mount is above the edge of the CoffeeRacer. 6. Ride the desk chair until the front of the desk chair mount is above the edge of the CoffeeRacer and the back of the grabbing bracket sits against the CoffeeRacer. 7. Lower the desk chair until the desk chair mount is hooked on the edge of the CoffeeRacer. USING THE COFFEERACER To set the bridge from boarding mode to racing mode: CoffeeRacer ‘Play’ USER MANUAL... -
Page 23: After Use
3. Tighten the four knobs again. AFTER USE CAUTION Risk of injury. Watch your fingers when adjusting the position of the pedals or folding down the bridge. 5.3.1 Unhook the chair mount (optional) 1. Release the four quick releases on the bridge. 2. Move the CoffeeRacer to the boarding mode. 3. Unlock the tilt function of your desk chair. 4. Move your weight from the chair by pulling yourself towards the CoffeeRacer. 5. Tilt the chair backwards so the mount unhooks from the CoffeeRacer. 6. Ride the chair backwards to exit the CoffeeRacer. CoffeeRacer ‘Play’ USER MANUAL... -
Page 24: Storing The Pedals
Slide the pedals to the folded position. The position depends on your type of racing wheel (see Appendix II). 1. Release the four quick releases on the pedal plate. 2. Slide the pedals forwards to the folded position. Some pedal sets require moving rearwards to the folded position. See Appendix II for a list of tested wheels. 5.3.3 Folding down the bridge CoffeeRacer ‘Play’ USER MANUAL... -
Page 25: Putting Away The Coffeeracer
Remove the steering wheel from the blocking the lid. wheelbase and store it separately in the CoffeeRacer. The cables are stuck Check the position of the cables. when closing the Check whether the cables are long enough CoffeeRacer. for the adjustments. CoffeeRacer ‘Play’ USER MANUAL... -
Page 26: Disposal
Physical Good or 1 year from the date of replacement or repair, whichever is longer. What does this limited warranty not cover? This Limited Warranty does not cover any problem that is caused by: ● conditions, malfunctions or damage not resulting from defects in material or workmanship What do you have to do? To obtain warranty service, you must first contact us at info@CoffeeRacer.com to determine the problem and the most appropriate solution for you. CoffeeRacer ‘Play’ USER MANUAL... -
Page 27: Appendix Ii - Compatibility
Logitech Pro Put the wheel in the front position (away from the driver) to accommodate folding the wheel: ● Logitech G932 ● Logitech G25 ● Logitech G27 ● Logitech G29 ● Logitech G320 ● Thrustmaster T248 CoffeeRacer ‘Play’ USER MANUAL... - Page 28 CoffeeRacer B.V. Zuideinde 509 | 1035 PJ Amsterdam | The Netherlands info@CoffeeRacer.com | www.CoffeeRacer.com EN – original instructions Version 1.0 – 04/2023...
