AutoPolar PolarFIS PF04 Quick Start Manual

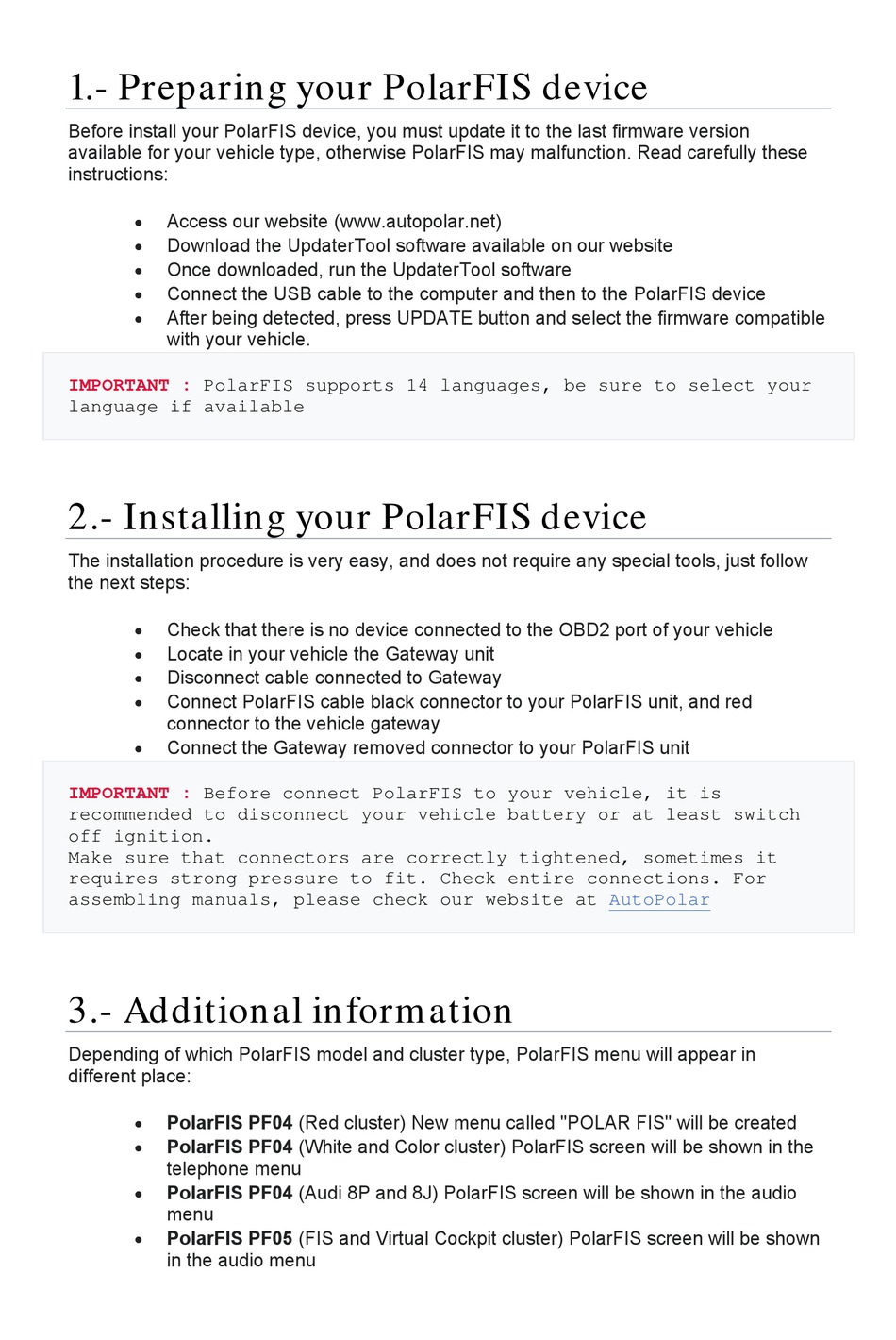

1.- Preparing your PolarFIS device

Before install your PolarFIS device, you must update it to the last firmware version
available for your vehicle type, otherwise PolarFIS may malfunction. Read carefully these
instructions:

Access our website (www.autopolar.net)

Download the UpdaterTool software available on our website

Once downloaded, run the UpdaterTool software

Connect the USB cable to the computer and then to the PolarFIS device

After being detected, press UPDATE button and select the firmware compatible
with your vehicle.
IMPORTANT : PolarFIS supports 14 languages, be sure to select your
language if available

2.- Installing your PolarFIS device

The installation procedure is very easy, and does not require any special tools, just follow
the next steps:

Check that there is no device connected to the OBD2 port of your vehicle

Locate in your vehicle the Gateway unit

Disconnect cable connected to Gateway

Connect PolarFIS cable black connector to your PolarFIS unit, and red
connector to the vehicle gateway

Connect the Gateway removed connector to your PolarFIS unit
IMPORTANT : Before connect PolarFIS to your vehicle, it is
recommended to disconnect your vehicle battery or at least switch
off ignition.
Make sure that connectors are correctly tightened, sometimes it
requires strong pressure to fit. Check entire connections. For
assembling manuals, please check our website at

3.- Additional information

Depending of which PolarFIS model and cluster type, PolarFIS menu will appear in
different place:

PolarFIS PF04 (Red cluster) New menu called "POLAR FIS" will be created

PolarFIS PF04 (White and Color cluster) PolarFIS screen will be shown in the
telephone menu

PolarFIS PF04 (Audi 8P and 8J) PolarFIS screen will be shown in the audio
menu

PolarFIS PF05 (FIS and Virtual Cockpit cluster) PolarFIS screen will be shown
in the audio menu
