Bilt TRINITY TXK-0808 Owner's Manual

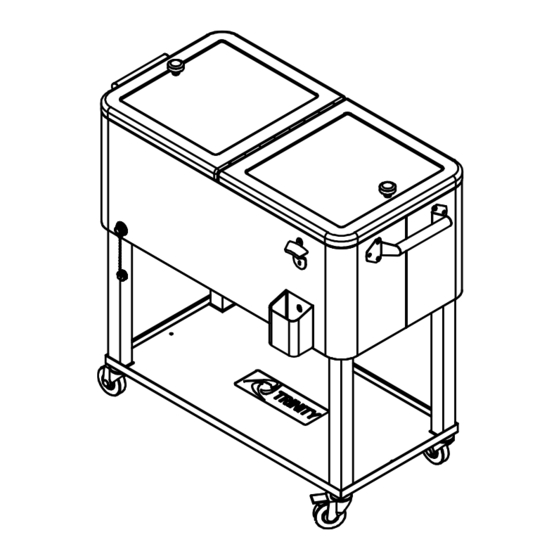

100 qt stainless steel cooler w/ shelf & cover
Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
OWNER'S MANUAL
TRINITY 100 QT STAINLESS STEEL COOLER
W/ SHELF & COVER
Model # TXK-0808
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRINITY TXK-0808 and is the answer not in the manual?

Questions and answers

Related Manuals for Bilt TRINITY TXK-0808

Summary of Contents for Bilt TRINITY TXK-0808

  • Page 1 OWNER’S MANUAL OWNER’S MANUAL TRINITY 100 QT STAINLESS STEEL COOLER W/ SHELF & COVER Model # TXK-0808 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...

  • Page 2: Parts List

    PARTS LIST Your TRINITY Stainless Steel Cooler w/ Shelf & Cover should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 Align HANDLES (F) on each side of TUB (A). Attach HANDLES (F) with LARGE SCREWS (G). Make sure to tighten securely. HANDLES (F) can be attached either angled up or down based on your preference. STEP 2 Turn TUB (A) upside down, and align LEGS (D) with holes on bottom of TUB (A).
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 3 Align holes in SHELF (C) with bottom of LEG (D), making sure SHELF Lip is facing TUB (A). Screw LOCKING CASTER (K) into bottom of LEG (D), securing SHELF (C) in between. Please make sure LOCKING CASTERS (K) are installed on the same side.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 5 Unscrew DRAIN PLUG (J) assembly. Insert DRAIN PLUG (J) through opening in TUB (A) from the inside. Make sure rubber seal is on the inside of TUB (A). From the outside, slide washer on first, then the second washer with chain attached, and Outside the tub then screw on the nut.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 7 Unfold COVER (N) and put it onto assembled cooler. Pull Velcro straps to secure COVER (N). Velcro straps © 2020 TRINITY - 800.985.5506...
  • Page 7 SERVICE PARTS LIST – TXK-0808 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description PBR-17-002-3317 Cooler Lid ZSV-99-011-3010 Non-Locking Caster AMA-05-005-0150 Lid Knob PBR-03-028-3116 Shelf XSV-01-010-0530 Knob Screw PBR-04-022-1625 XST-18-015-3317 Cooler Tub XSV-01-010-0416 Small Screw XST-02-004-0001 Bottle Opener CGL-02-003-0001...
  • Page 8 WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE • Remember to drain remaining water and remove un-melted ice after use. Wipe dry for storage. • Avoid harsh, abrasive cleaners, and other corrosive chemicals. • Do not use scouring pad for cleaning. • Keep dry and avoid damp environments. •...

  • Page 10: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY Stainless Steel Cooler w/ Shelf & Cover. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.

  • Page 11: Year Limited Warranty

    1 YEAR LIMITED WARRANTY TRINITY Stainless Steel Cooler w/ Shelf & Cover Model # TXK-0808 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY Stainless Steel Cooler w/ Shelf & Cover (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
