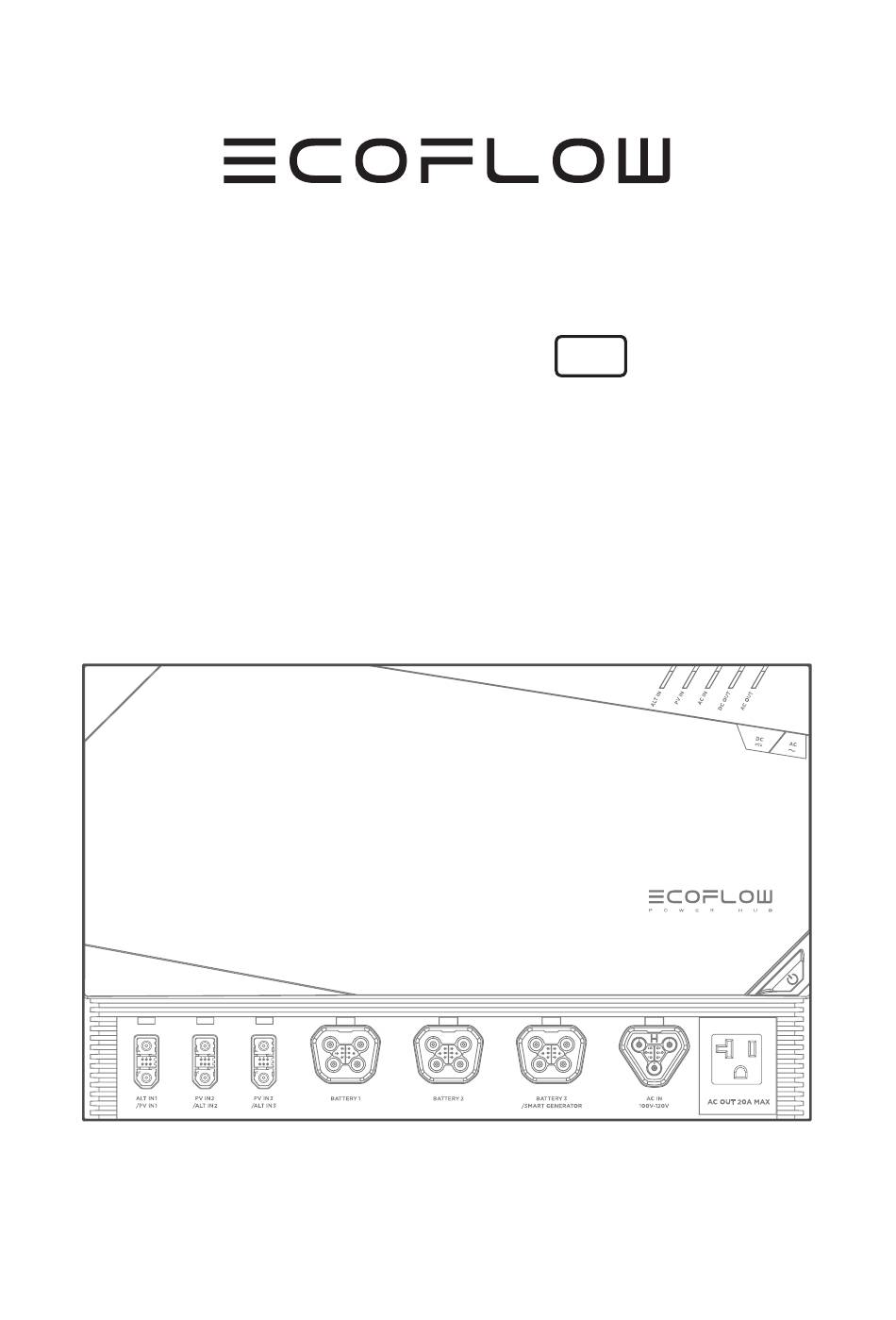

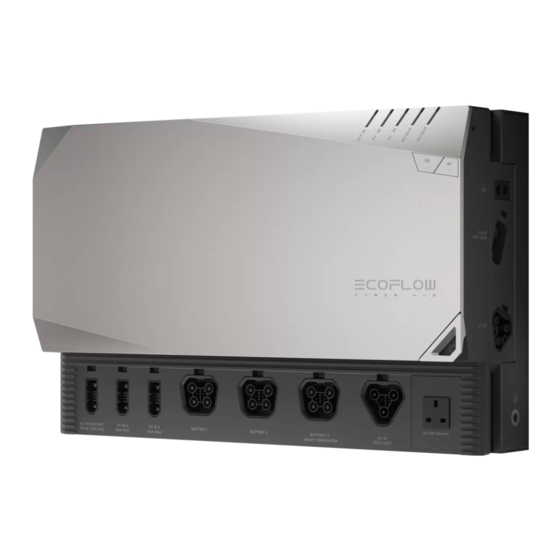

- Page 1 POWER HUB User Manual V1.5 EFM100-HUB (LV) EFM100-HUB-F (LV)
- Page 3 EcoFlow is not liable for any loss caused by the user's failure to use this product in compliance with this user manual.
-
Page 4: Table Of Contents
Table Of Contents Technical Specifications Safety Instructions EcoFlow App Getting Started System Overview Product Overview CAN Bus Connection Product Usage Power On/Off DC Output AC Output AC Charging Smart Generator Charging Solar Charging Vehicle Alternator Charging X-Boost Feature Bypass Mode... -
Page 5: Technical Specifications
26.4 V 60 A, maximum power: 1600 W Input Spec 3000 W maximum power, 30 A maximum current, supported AC Input Power by EcoFlow X-Stream Technology AC Input Voltage 100–120 V, 50 Hz/60 Hz PV Input 2/3 15–60 V 30 A, maximum power:... -
Page 6: Safety Instructions
The dried product cannot be reused, and should be properly disposed according to the method described in the EcoFlow Battery User Manual. If the product catches fire, we recommend that you use the fire extinguishers in the following order: water or water mist, sand, fire blanket, dry powder , and carbon dioxide fire extinguisher. -
Page 7: Ecoflow App
Privacy Policy By using EcoFlow Products, Applications and Services, you consent to the EcoFlow Term of Use and Privacy Policy, which you can access via the “About” section of the “User” page on the EcoFlow App or on the official EcoFlow website at https://www.ecoflow.com/policy/ terms-of-use and https://www.ecoflow.com/policy/privacy-policy... - Page 8 Recreational Vehicle (RV) Fuse-100A DC Appliance (Not included) AC Appliance > ≤ Chassis Engine Alternator Starter Battery Shore Power Inlet （Not Included） DC Appliance Off Grid Builds / Self Consumption AC Appliance > ≤...
- Page 9 Utility Meter （Not Included） 1. EcoFlow Power Hub 6. Shore Power/Grid Power Rigid/Flexible Solar Panel AC/DC Smart Distribution Panel Power Kit Console Foldable / Portable Solar Panel 4. EcoFlow 2kWh/5kWh LFP Battery Vehicle Alternator EcoFlow Smart Generator Fuse-100A (Not included)
- Page 10 Whole Home Backup This product can be connected to EcoFlow Smart Home Panel via "Power Hub Infinity Cable to Smart Home Panel". Once connected, the AC input of the Power Hub is disabled and the AC charging and discharging is controlled by the Smart Home Panel. The output of the Power Hub can be turned on/off by pressing the AC switch button (marked as "AC 1"...
-
Page 11: Product Overview
10. DC Out Indicator 17. Earth Stud 4. AC IN Port 11. AC In Indicator 18. Air Outlet 5. AC OUT Port (20A) 12. PV IN Indicator 19. Air Inlet (For EFM100-HUB only) 13. ALT IN Indicator 6. Main Power Button... -
Page 12: Can Bus Connection
CAN Bus Connection To ensure communication quality, this product comes with two RJ45 CAN Bus ports, each port can be connected to AC/DC Smart Distribution Panel, Power Kit Console, or RJ45 CAN bus terminator. Both ports MUST be connected to stabilize communication throughout the system. -
Page 13: Product Usage
Product Usage Power On / Off Status Indicators (Top right corner) Main Power Indicator Five indicators illuminated in a sequence Power-on Breathing from left to right Power-off Five indicators flash 3 times and stay off. 1. Please wait 5 seconds to let the system completely shut down before further operation after pressing the main power button. -
Page 14: Ac Output
The EcoFlow Power Hub features EcoFlow fast charging technology X-Stream . The maximum AC charging power is 3000 W and the maximum AC charging current is 30 A. User can adjust the charging current via EcoFlow App or Power Kit Console. The default charging current is 15 A. -
Page 15: Smart Generator Charging
The Power Kits can be recharged by using different cables connected to the AC or DC output of the EcoFlow Smart Generator. DC Charging Connect EcoFlow Smart Generator to the Power Hub with the Smart Generator Charging Cable (Smart Generator, DC charging cable and adapter are sold separately). AC Charging Connect EcoFlow Smart Generator to the Power Hub with the AC Charging Cable. -
Page 16: Solar Charging
For EcoFlow 100w rigid or flexible solar panel, up to 6S3P can be connected to each port, for EcoFlow 400w rigid solar panel, up to 4S1P or 2S2P can be connected to each port, for EcoFlow 400w foldable solar panel, up to 3S1P or 2S2P can be connected to each port. -
Page 17: X-Boost Feature
X-Boost Feature With EcoFlow X-Boost technology, this product can power a 5200W Max device (for heating appliances only) while the rated output power remains 3600W, avoiding operation failure due to overload protection. -
Page 18: Bypass Mode
Bypass Mode When the product is connected to external AC and the AC output is enabled, the system enters bypass mode. The AC output is provided by the external AC power supply and the LFP battery is charged by the external AC power supply. When external AC is not available, the Power Hub will automatically transfer to inverter mode, AC output will restore power within 30ms. -
Page 19: Standby Mode
The Power Hub will not enter Standby Mode during firmware update. FAQs 1. Can I connect non-ECOFLOW photovoltaic panels? Yes, the Power hub has three independent PV charging inputs, and users are free to choose any brand and model of PV panel. -
Page 20: What's In The Box
What's in the Box Mounting Kit (Back) ×1 Solar Charge Cable Power Hub ×1 (6m/20ft) ×1 Mounting Kit (Top / M4.8*25 (13 pcs) RJ-45 CAN Bus Bottom) ×2 Terminator ×2 M5*10 (8 pcs) User Manual ×1 Warranty Card ×1 Quick Start Guide ×1... -
Page 21: Care And Maintenance
Care and Maintenance 1. Use this product in an environment with a temperature ranging from -25°C (-13°F) to 60°C (140°F) and keep this product away from water sources, heat sources, and metal objects. 2. For safety reasons, do not store this product in an environment where the temperature is higher than 45°C (113°F) or lower than 0°C (32°F) for a long time.
