- Page 1 XT SERIES External/In-line pump INSTRUCTION MANUAL MODEL DATE XUV16A JUNE 2023 XUV40S XUV80S Teton Dynamics XUV120S P.O. Box 3031 San Leandro, CA 94578-0031...
-
Page 2: Technical Specifications

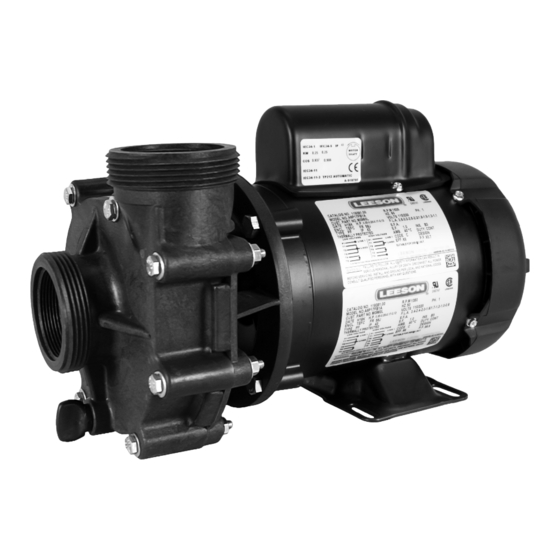

XT SERIES EXTERNAL/INLINE PUMP XT4000LH/XT3200/XT4400/XT5000/ XT6000/XT7000/XT8000 www.tetonus.com 800.752.0399 info@tetonus.com BEFORE USING THIS PRODUCT, PLEASE READ WELCOME TO THE WORLD OF TETON, THESE INSTRUCTIONS CAREFULLY AND NATURAL RELIABILITY™! FAMILIARIZE YOURSELF WITH THE UNIT. You Made The Right Choice Investing In PLEASE KEEP THESE INSTRUCTIONS IN A SAFE This Quality Product. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Please read the operating instructions and familiarize yourself with the equipment before placing it in service. Correct and safe use of the system requires strict compliance with these safety instructions. For safety reasons, persons less than 16 years of age or persons that are not familiar with these instructions, should not use this equipment. -
Page 4: Pump End Assembly
PUMP END ASSEMBLY 1. Clean and inspect all pump parts (0-ring, seal seats, motor shaft, etc.). 2. Apply sealant to the bracket bore ID wall and around the seal case - follow sealant mfg. instructions. We recommend using Gasgacinch®. Silicone sealant can also be used. 3. -
Page 5: Maintenance
ASSEMBLY (SEE PAGE 4, FIGURE 2) Place the strain relief clip (A) about 10-12cm from the eye of the earth cable (B). 2. Slide the eye of the earth cable (B) over the earth pin (C) that is fastened to the housing (D). 3. -
Page 6: Troubleshooting
TROUBLE SHOOTING SYMPTOM PROBLEM RESOLUTION Symptom Insu cient Prime Prime system with water and purge all air from suction piping No Flow Install check valve. Insu cient Power Verify power supply and connection from panel to pump. Verify proper voltage. Some models are dual voltage (115/230). Ensure valves are open. -
Page 7: Limited Product Warranty
LIMITED PRODUCT WARRANTY • CMT Group LLC, a California limited liability company d/b/a Teton™ (the “Company”) expressly warrants to the original purchaser that, for a period of two (2) years from the date of sale, the covered product (the “Product”) will be reasonably free of defects in materials and workmanship and that when property handled, will conform, within accepted tolerance to applicable manufacturing specifications.
