Airmax SolarSeries SS20-DD Owner's Manual

Aeration system direct drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SolarSeries
Aeration System
™
Direct Drive

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolarSeries SS20-DD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airmax SolarSeries SS20-DD

Summary of Contents for Airmax SolarSeries SS20-DD

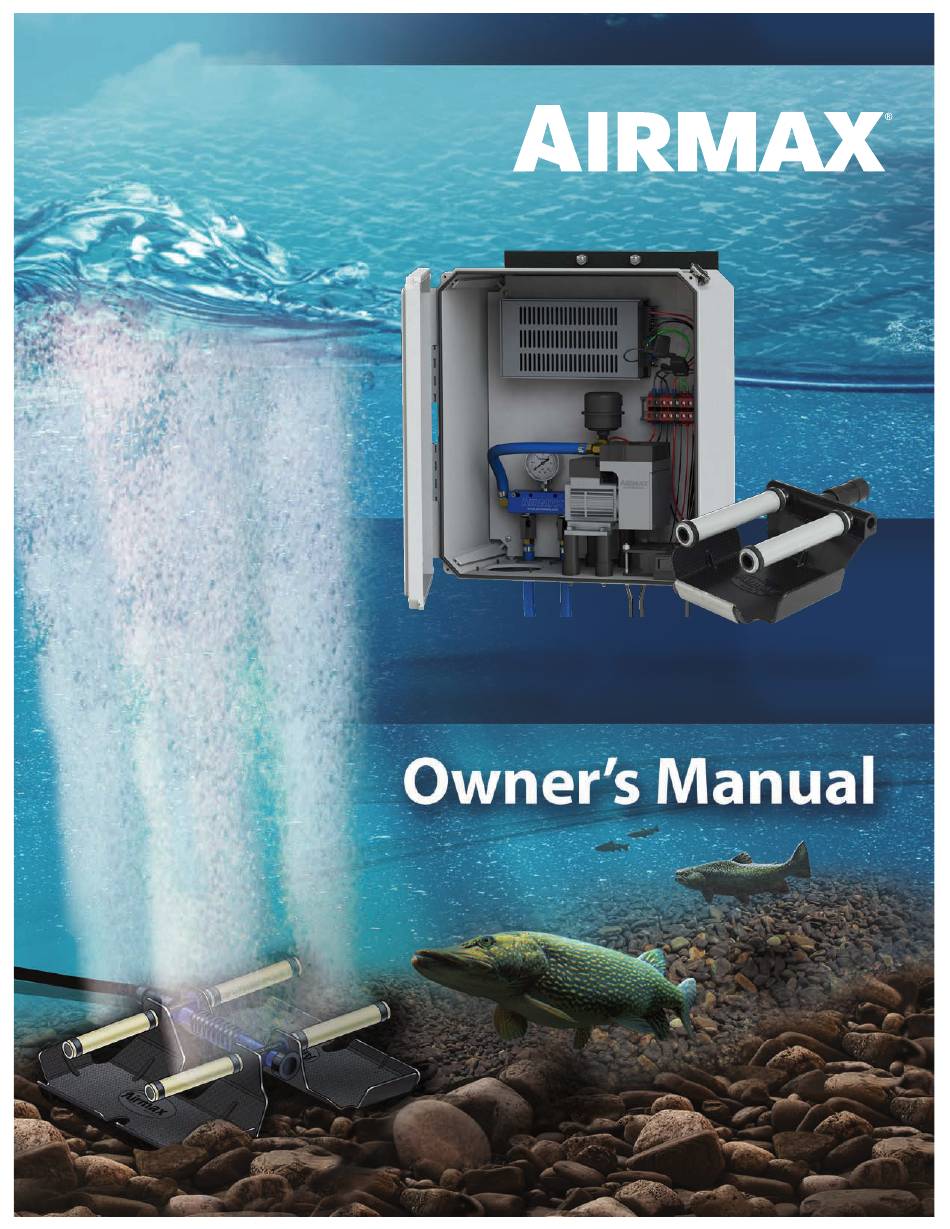

  • Page 1 SolarSeries Aeration System ™ Direct Drive...

  • Page 2: Direct Drive

    • Children should be supervised to ensure that they do not play with the appliance. • This unit has not been evaluated for use in swimming pool areas • Airmax is not responsible for equipment damage or failure, losses, injury or death resulting from failure to follow safety precautions, misuse or abuse of equipment.
  • Page 3 SolarSeries Aeration System Owner’s Manual 1. System Components SolarSeries Aeration Components ProAir 2 Weighted Diffuser ® SolarSeries Direct Drive Control Panel EasySet Airline ™ SolarSeries SilentAir Diaphragm Compressor • Self-Weighted Airline: 5/8” 100’ Roll (#510119): Lead-free weighted airline is made of durable PVC composite.

  • Page 4: Grounding Hardware

    1. System Components - Continued Airmax EasyMount™ Assembly Components 1. EasyMount Main Assembly (1) 2. Panel Support Rail Extension with Hardware (2) 3. Tilt Support Hardware (2) 4. U-Bolts with Hardware (2) 5. Solar Panel Clamp, Single-Sided (4) 6. Solar Panel Clamp, Double-Sided (2)

  • Page 5: Tech Specs

    • Cardboard/blankets/towels to block solar panel energy during installation) • 6-8 gallons of cold water (bucket or hose) B) Select a Location for the Airmax EasyMount System • Ensure that holes for the solar mounting pole will not interfere with any underground utilities.
  • Page 6 7) Plumb pole with a level and brace using 2x4 studs, clamps and stakes (recommended). Allow a minimum of 48 hours’ cure time before installing the Airmax EasyMount Assembly and solar panels. 8) Next, drive an 8’ grounding rod into the ground 6”-8” away from the edge of the concrete, leaving approximately 6”...
  • Page 7 (Fig. 5B). 26° to 30° (S.Texas – N. Florida) 40° or 45° Note: Airmax recommends leaving your tilt angle set for optimum 31° to 35° (Mid-Texas – N. Georgia) 45° or 50° performance during the winter months when daylight hours are 36°...
  • Page 8 2. System Installation - Continued 6) Next, remove the tilt support hardware from the temporary location on the support Fig. 6A Panel Support Rail rail. Align the hole on the tilt support strut with the desired hole on the support rail (Fig.
  • Page 9 2. System Installation - Continued E) Solar Panel Installation & Grounding CAUTION: To prevent possible injury, cover solar panels with either Fig. 1 cardboard, blankets, or towels to prevent any voltage transmission through solar panel cables during installation. Avoid installing solar panels on windy days to prevent possible accidental damage to equipment.

  • Page 10: Grounding Your System

    2. System Installation - Continued 5) Next, loosen the double-sided clamp from the rail on each side. Then position the Fig. 5 clamps so that they seat against the top frame of the solar panel. Secure clamps to the rail but leave the top hex bolt loose to allow for positioning of the next solar panel (Fig.
  • Page 11 2. System Installation - Continued 9) Feed one end of the 12’ copper grounding wire through each of the solar panel Fig. 9 grounding lugs and secure using a slotted screwdriver (Fig. 9). Fig. 10 10) Next, slide one ground rod clamp onto the opposite end of the 12’ copper grounding wire.
  • Page 12 OPTIONAL FINAL GRADE AND SURFACE PREP: To prevent possible damage to equipment during lawn maintenance AND to prevent shading from vegetation growth, the immediate areas beneath and around your Airmax SolarSeries assembly can be prepared with ground fabric and finished with stone or mulch.
  • Page 13 2. System Installation - Continued G) Connect Airlines 1) Connect Airlines to the Manifold Hoses Fig. 1 Option A & B: Insert one side of a 3/8” to 5/8” coupler into the 5/8” weighted or direct burial airline and secure with a hose clamp. Then insert the other side of the coupler into the manifold hose and secure with a hose clamp.
  • Page 14 Note: Diffusers should be placed equally apart or in areas of low water movement for optimum performance. If you need help choosing the correct location for your diffusers, please contact Airmax or your local dealer. 2) Assemble and Connect ProAir Diffusers Fig.
  • Page 15 2. System Installation - Continued 4) Install the ProAir Diffusers Fig. 3A Option A: Installing Diffusers From a Boat/Raft (Fig. 3A): Have one person on shore guiding the airline as a second person, using a boat or raft, extends the airline out to the area of the pond where the diffuser will be located. Gently lower the diffuser to the pond bottom using the weighted airline to ensure that the ProAir 2 diffuser remains in the upright position.

  • Page 16: Shutting Down

    3. Initial Start-Up & Seasonal Operation WHENEVER TURNING THE SYSTEM ON OR OFF, REFER TO THE STEPS BELOW TO ENSURE POWERING UP AND SHUTTING DOWN FOLLOW THE CORRECT ORDER TO AVOID DAMAGE TO SYSTEM COMPONENTS. • POWERING UP Complete installation, maintenance or troubleshooting with power OFF. Turn the INTERNAL switch to the ON position •...

  • Page 17: Maintenance

    3. Initial Start-Up & Seasonal Operation - Continued SUMMER OPERATION To reduce the risk of fish kills in hot summer months and for optimum aeration benefits, Airmax SolarSeries Aeration Systems should run for as many hours as possible through- out the summer WINTER OPERATION Owner assumes all responsibility for operating Airmax Aeration Systems during winter months.

  • Page 18: Troubleshooting

    2. #510150 – Air Filter, Complete #510151 – Air Filter Media Only (not pictured in diagram) 3. #601200 – Airmax SilentAir Compressor, 24v DC 4. #490272 – Pressure Gauge, 2” liquid filled 5. #654130 – Pressure Relief Valve, 15 PSI 6.
  • Page 19 6. Replacement Parts / Accessories - Continued SolarSeries EasyMount Assembly Replacement Parts 1. #653911 – Solar Panel 2. #654117 – EasyMount Assembly Complete 3. #654116 – EasyMount Post-Mount Assembly 4. #654119 – EasyMount Rail Extension 5. #654126 – EasyMount Support Rail & Support Strut 6.
  • Page 20 Modification or repair by an unauthorized repair facility will void the warranty. In no case will Airmax, Inc. or its dealers accept responsibility for any costs incurred by the user during installation, removal, inspection, evaluation, repair, parts replacement, or for return freight. Nor will any liability be accepted for loss of use, loss of profits, loss of goodwill, for consequential damage, or for personal injuries to the purchaser or any person.
  • Page 21 Airmax, Inc. 15425 Chets Way Street Armada, MI 48005 (866) 4-AIRMAX airmaxeco.com #652320 V1...
