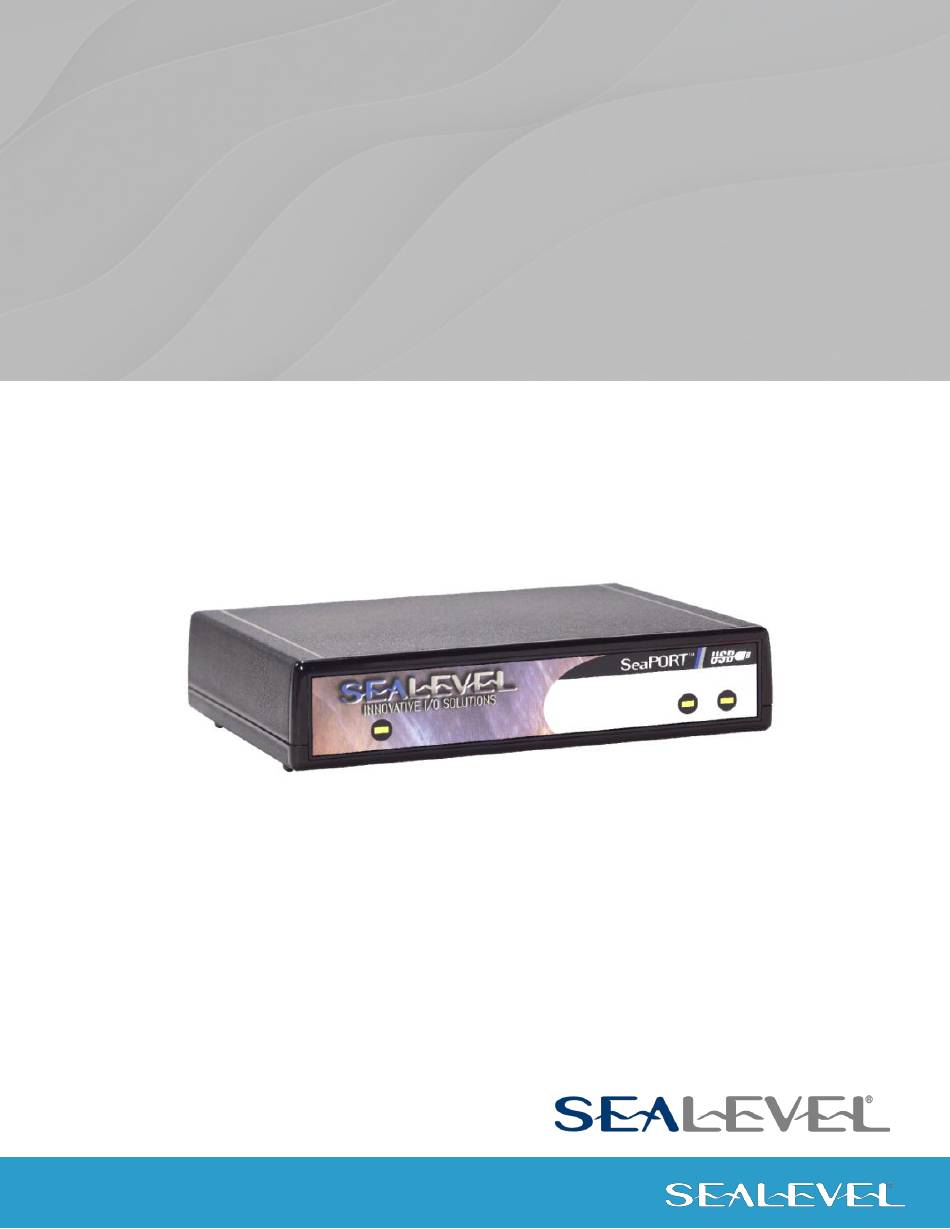

- Page 1 SeaPORT+2 User Manual | 2203 © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022...
-
Page 2: Table Of Contents
CONFIGURATION TECHNICAL DESCRIPTION SPECIFICATIONS APPENDIX A - TROUBLESHOOTING APPENDIX B – HOW TO GET ASSISTANCE APPENDIX C – ELECTRICAL INTERFACE APPENDIX D – ASYNCHRONOUS COMMUNICATIONS APPENDIX E – COMPLIANCE NOTICES WARRANTY © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022... -
Page 3: Introduction
Introduction The Sealevel Systems SeaPORT+2 equips the PC with 2 USB to RS-232/422/485 Asynchronous serial ports providing a versatile interface for common serial needs. The advantage of this product over more traditional approaches is that it does not require opening the computer case, nor does it require resources such as I/O ports or IRQ’s. -
Page 4: Before You Get Started
Before You Get Started What’s Included The SeaPORT+2 is shipped with the following items. If any of these items is missing or damaged, contact the supplier. • SeaPORT+2 USB to RS-232/422/485 Serial I/O Adapter • USB Cable Part Number CA179 for Connecting to Upstream Host/Hub... -
Page 5: Installation Instructions
An uninstall option is included to remove the driver and all registry/INI file entries from your system. 7. Proceed with the physical installation of your SeaLINK USB serial adapter. Windows NT is not USB aware and thus cannot support this device. © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022... -
Page 6: Physical Installation
Windows. The SeaPORT+2 can be connected to any upstream type “A” port either at the PC host or an upstream hub. The SeaPORT+2 is hot pluggable, meaning there is no need to power down your computer prior to installation. -
Page 7: Configuration
When reassembling please note that the top and bottom are keyed to fit in only one direction. Electrical Interface Selection Each of the two ports on the SeaPORT+2 can be individually configured as an RS-232, RS-422, or RS-485 interface. This is selectable via the DIP switches and DIP shunts. Each of the switch positions is described on the following page. - Page 8 No effect ON : Adds a 1 K ohm pull-down resistor to RX- 422 and 485 option. OFF: No effect ON : Adds a 120 ohm termination resistor between RX+ and RX- © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022...
- Page 9 The receiver is disabled when the transmitter is enabled. In a two-wire setup the receiver will not echo back transmitted data. Switch positions 1 and 2 are for port 1 and switch positions 3 and 4 for port 2. © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022...
- Page 10 Port 2: RS-485 two wire communication with no echo. The corresponding shunt is in the 422/485 position. Switches 485 2, NE 2, and Port 2 L, L, T, PU, and PD are all in the ON position. © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022...
-
Page 11: Technical Description
Technical Description The SeaPORT+2 utilizes two USB UARTs. These chips feature programmable baud rate, data format, 128- byte Dual Port TX Buffer, and 384-byte Dual Port RX Buffer. The RS-232/422/485 transceiver supports data rates up to 921.6K baud for RS-422/485 and up to 460.8K baud for RS-232. - Page 12 Mode Ground Transmit Data Output Request To Send Output Data Terminal Ready Output Receive Data Input Clear To Send Input Data Set Ready Input Data Carrier Detect Input Ring Indicator Input © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022...
-
Page 13: Specifications
10 to 90% R.H. Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption This device is a high-power USB device. -
Page 14: Appendix A - Troubleshooting
The loopback test first transmits a HEX pattern, 55AA, and then a ASCII string of data. If this test passes, then the SeaPORT+2 is ready for use in your application. 5. Please note that if the adapter is configured for 2 wire RS-485 with no echo a loopback test is not possible. -
Page 15: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 16: Appendix C - Electrical Interface
(ground) to determine binary logic states. The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The SeaPORT+2 is a DTE device. -
Page 17: Appendix D - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1). © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022... -
Page 18: Appendix E - Compliance Notices
• The equipment has a level of immunity to the electromagnetic disturbance to be expected in its intended use which allows it to operate without unacceptable degradation of its intended use. © Sealevel Systems, Inc. 2203 Manual | SL9098 9/2022... - Page 19 Caution Sealevel Systems, Inc. is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution of attachment of connecting cables and equipment other than those specified by Sealevel Systems. Such unauthorized modifications, substitutions, or attachments may void the user’s authority to operate the equipment.
-
Page 20: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
