Dragon Touch DF01G - GPS Drone Manual

DISCLAIMER & SAFETY GUIDELINES

1. For beginners, please fly no higher than 20 meters (65 feet).
2. Do not look directly into the drone light.
3. Do not treat product as household waste.
4. Do not fly above or near obstacles, crowds, open water, public roads, high voltage power lines or trees.
5. Do not use the drone in severe weather conditions. These include wind, snow, rain, smog, hail, lightning, tornadoes or hurricanes.
6. Stay away from the rotating propellers and motors.
7. Please maintain sight of your drone at all times. Please do not rely solely on the first-person camera view to control your drone.
8. This product is not a toy and is not recommended for users under age 14.
9. Be sure to observe all local regulations, obtain appropriate authorizations, and understand risks. Please note it is solely your responsibility to comply with all local flight regulations.

DRAGON TOUCH accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices, including, but not limited to, those set forth in these Safety Guidelines.

MAINTENANCE AND CARE

1. Thoroughly check the drone after crash or violent impact.
2. Do not charge the battery until it cools down.
3. Remove the batteries if the device will not be in use for a long time.
4. Do not over charge the battery. Unplug the charger once it's fully charged.
5. Store the drone and remote in a cool, dry place away from direct sunlight.
6. Avoid exposing the camera to water or other liquids. Wipe dry with a clean, soft, absorbent cloth if it gets wet.
7. Do not charge the battery next to flammables, such as carpets and timber floors, or on the surface of electroconductive objects. Please monitor the battery while charging.
8. To avoid losing your drone, only fly it in the open air after you've gained experience and are very confident in controlling it.

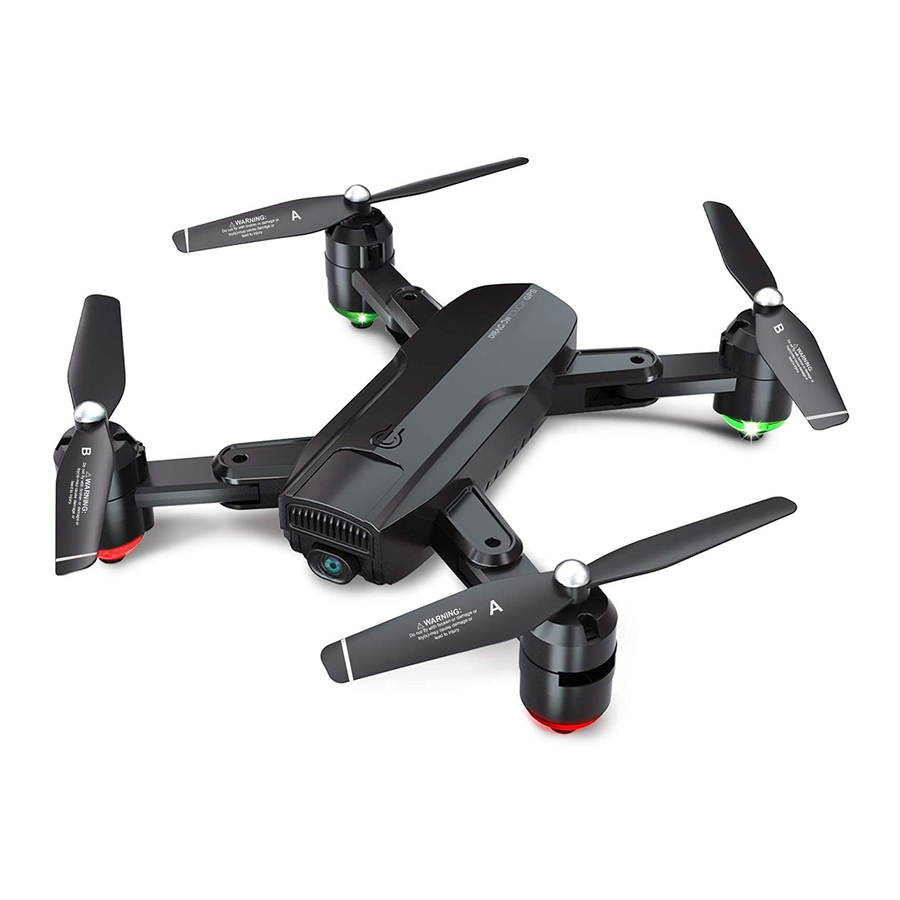

DRONE DIAGRAM

CHANGING A PROPELLER

1. The replacement propeller must be replaced in the proper position on the machine. Propeller A needs to be installed in the position of A, and propeller B needs to be installed in the position of B, or you may not be able to properly control the drone. There are labels for A and B on the bottom of the propellers.
2. When flight begins, propeller A rotates clockwise and propeller B rotates counterclockwise.

INSTALLING THE PROTECTIVE COVER

Snap the protective frame connectors into the shackles.

TRANSMITTER DIAGRAM

1. Speed Switch
2. One-key Takeoff/Land
3. Left Joystick
4. Geomagnetic Calibration
5. Phone Clamps
6. Photo/Video
7. Orbit Mode
8. GPS Switch
9. Right Joystick
10. Power ON/OFF
11. Headless Mode
12. One-key Return

INSTALLING THE BATTERY

Obtain three 1.5V AA batteries (not included) and install them in the transmitter.

Insert the battery into drone (7.4V 1200mAh Li-Po battery is included).

RECHARGING THE DRONE BATTERY

Remove the USB charging cable. Unplug the aircraft battery. Plug the battery's USB connector into a USB port on a computer (or a USB power adapter). The LED indicator light on the cable will turn red while it is charging and turn off when it is fully charged. The charging time is about 120-150 minutes.

Note: Only use the provided charger cable. It is dangerous to use the provided charge cable to charge other products.

GETTING READY TO FLY

Note:

1. Make sure the propellers and propeller protective covers are correctly installed and tightened.
2. Before flying, please pair the drone and transmitter (remote control), calibrate the drone and obtain a GPS satellite signal.

HOW TO PAIR THE REMOTE CONTROL TO THE DRONE

1. Turn on the drone power switch, and place the drone on a level surface.
2. Turn on the remote control power switch.
3. Push the left joystick completely up once and completely down once.
   You will hear two beeps, and the indicator light will change from flashing to constant, indicating that the pairing is successful.


HOW TO CALIBRATE

1. Long press the geomagnetic calibration button for 3 seconds. The remote control will beep, the drone's front and rear lights will stay on. You have now entered the geomagnetic calibration mode.
2. Rotate the drone horizontally. The drone's rear light stays on, and the horizontal calibration is successful.
3. After successful horizontal calibration, the drone is upright and rotated (360°).
   The front light (red light) on the body stays on, and the calibration is successful.


HOW TO OBTAIN A GPS SIGNAL

After the gyro and geomagnetic calibrations are successful, the drone's rear light changes from slow flashing to solid. At this time, place the drone on an open, horizontal surface. When the drone's rear light turns green, the GPS satellite signal has been obtained, and you can take off normally. The process takes a few minutes.

Note: The drone can only fly after a GPS signal has been found. If the flight is indoors where a signal can not be obtained, the GPS function can be turned off. To turn it off, tap the remote control GPS switch button. At this time, the remote control will make a sound, indicating that the GPS function is off and you are ready to fly indoors.

HOW TO TAKE OFF

Method 1: Operate the two joysticks at the same time as shown in the figure pic1 for 2-3 seconds to unlock the drone. Then press the takeoff/land button pic 2.

pic1

pic2

Method 2: Operate the two joysticks at the same time as shown in the figure pic 3 for 2-3 seconds to unlock the drone. Then slowly push the left joystick pic4.


pic 3

pic 4

HOW TO LAND

Method 1: Slowly pull the left joystick pic 5 down until the drone is landing, keeping the left joystick down in the lowest position. The motor stops after 2 seconds and the drone lands successfully.

Method 2: When the drone flying, press the take off/land button again to land the drone slowly.

pic 5

pic 6

FLIGHT OPERATION METHOD

Ascending/ Descending		When you push the left joystick up, the drone will ascend. When you pull the left joystick down, the drone will descend.
Turning	When you push the left joystick to the left, the drone will turn left. When you push the left joystick to the right, the drone will turn right.
Forward/ Backward	When you push the right joystick up, the drone will move forward. When you pull the right joystick down, the drone will move backward.
Side fly	When you push the right joystick to the left, the drone will move to the left. When you push the right joystick to the right, the drone will move to the right.

CONNECTING YOUR MOBILE DEVICE

1. Download the VS GPS app to your mobile device from the App Store/ Google Play or by scanning the QR code below.





2. Power on the drone. The LED lights will flash. Go to Wi-Fi settings on your mobile device. Connect to the network (DF01G-xxxx).

FLIGHT OPERATION GUIDE

HEADLESS MODE

The default front in the headless mode is the direction in which the drone is facing when pairing with the remote control. If you need to change the direction the drone is facing in the headless mode, please re-pair with the remote control. In headless mode, the drone always moves in the direction of the remote control joysticks, regardless of its orientation. For example, when you push the right joystick to the right, the drone will always move to the right (regardless of which direction the drone is facing). To enter this mode, turn on the drone, and press the Headless Mode button on the remote control. If you want to exit this mode, press the button again.
Note: Please be sure to align the drone facing forward and in a straight line. Let the gyroscope automatically detect the direction to ensure proper functioning in headless mode.

ONE-KEY RETURN

Press the One-key Return button, and the drone will fly back approximately along its original take-off path. Press the button again to exit this mode.

ONE-KEY TAKE OFF AND LANDING

While unlocked, press the One-key Takeoff/Land button on the remote. The drone automatically rises to a height of about 2 meters (6.5 feet). Keep flying smoothly at this approximate height. When you press the button again, the drone will automatically land itself slowly.

ORBIT MODE/SURROUND FLIGHT MODE

Press the Orbit Mode button. The drone will take the current flight position as the center. Push the right joystick up and the drone will move forward to the set radius distance. Move the right control stick left and right to start execution.

PHOTO/VIDEO

Press the Photo/Video button on the remote control, which will beep twice to indicate the photo has been taken successfully. To record video, hold down this button for 3 seconds. The remote control will beep, and the recording indicator will flash slowly to indicate that recording is about to start. During the recording process, press and hold the button for 3 seconds to stop recording.

SPEED SWITCH

The drone has three speeds and is set to low speed by default. Press the Speed switch button once for medium speed. Press it again for high speed. A third press will return to low speed.

APP OPERATION PANEL

1. RUN THE "VS GPS" APP
   1. Press the Learn more button to get helpful information.
   2. Press the button to enter the control interface.
2. CONTROL INTERFACE

Press the button to open the remote control interface.

APP OPERATION PANEL OVERVIEW

1. Back
2. ON/OFF
3. Lens Reverse
4. VR
5. Album
6. Flight Record
7. Multipoint Flight
8. Surround Flight
9. GPS Signal
10. Drone Battery Level
11. Settings

12.-13. Turn Left/Right

14.-15. Ascend/Descend

16.-17. Move Left/Right

18.-19. Move Forward/Backward

20. Follow Me
21. Smart RTH
22. Take Off
23. Land
24. usic
25. Record Audio
26. Take Photo
27. Shoot Video
28. Unlock
29. Distance
30. Height
31. Horizontal Speed
32. Vertical Speed

Notes:

• Before flying, make sure the GPS Signal shows 3 or 4 bars.
• The maximum flight distance (the maximum distance between the drone and the last recorded Home Point) is set to 30 meters (98 feet) by default. You can reset it in the app Settings.

3. SETTINGS
   Press to start setting up your drone.

You can reset the Flight Distance and Flight Altitude as needed.

Beginner Mode: This mode is ON by default. All flight parameters are preset.
We recommend this mode for beginners.

Flight Distance: Press to reset the maximum flight distance between the drone and last recorded Home Point.

Flight Altitude: Press to reset the maximum flight altitude of the drone.

4. TAKEOFF
   Method 1: Press to turn on the virtual remote. Then press to unlock the drone, and four propellers will start rotating. Press . Slide the yellow bar to the right on the pop-up window to confirm takeoff.

Method 2: Press to turn on the virtual remote. Then press to unlock the drone, and the four propellers will start rotating. Swipe the Left Control Stick up arrow button upwards to take off.

5. LANDING
   Press to land the drone during the flight.


6. Smart RTH
   Press to initiate the Smart RTH (Return to Home) procedure during the flight and have the drone return to the last recorded Home Point. Slide the yellow bar to the right in the pop-up window to confirm return.


7. AROUND POINT FLIGHT
   Press to activate Around Point Flight while flying. Input your desired fly radius and press OK to start. The drone will circle around the current drone position while keeping that point centered in the frame.

   Press again during the flight to cancel this mode and regain control of the drone.
   Note: This function can't be activated when the drone battery is low.
8. FOLLOW ME
   Press to enable the Follow Me function. When Follow Me is enabled during flight, the drone rotates automatically as you move with the controller.
   The drone's camera lens will keep pointing at the target and maintain a 25 meter (82 foot) distance from it.

   Press again during the flight to exit this mode and regain full control of the drone.

Notes:

1. The functionality of Follow Me may vary due to GPS signal strength.
   Please maintain a safe distance between you and the drone when enabling this function.
2. Activate this function only when there are no obstacle around to avoid accidents.
3. This function can't be activated when the drone battery is low.

9. MULTIPOINT FLIGHT
   The Multipoint Flight function allows you to define an exact flying route on a map during flight.

10. PHOTO/VIDEO
    Press to take one photo.
    Press to start recording video. Press again to end and save the video to your microSD card and mobile device.

11. RECORD VIDEOS WITH PRELOADED MUSIC
    1. Press to select Music, and music provided will be displayed on the screen.
    2. Click your preferred background music and confirm your choice. Then press .
    3. Press and then press OK on the pop-up window to start recording video. Video will be saved to the album after you finish recording.
    4. Share your videos in the album with your friends by tapping on the lower left corner of the selected video.


LED INDICATOR DESCRIPTIONS

FAQ

Q1: Why aren't the drone LEDs lighting up?

• Press the power switch on the drone.
• Replace or recharge your drone's battery.
• Make sure the battery connectors are firmly plugged in.

Q2: Why do the drone's LEDs keep flashing, but it never responds to any command from the transmitter?

• Pair the drone with the transmitter again.
• Replace or recharge the drone's battery.
• Make sure the transmitter's batteries have enough power.

Q3: Why is the flight not stable?

• Fly the drone back to you, and restart to do a flight calibration as instructed.
• Ensure flight is trimmed appropriately.
• Fly the drone in suitable weather conditions.

Q4: Why is the drone unresponsive to the controls?

• Make sure the distance between the drone and the mobile device is within range.
• Stay away from open water, high-voltage power lines, or trees.

CONTACT US

For any inquiries about Dragon Touch products, please feel free to contact us, and we will respond within 24 hours.
E-mail: cs@dragontouch.com
Tel: 888-811-1140 (US) Mon-Fri 9am-5pm (EST)
Official website: www.dragontouch.com
