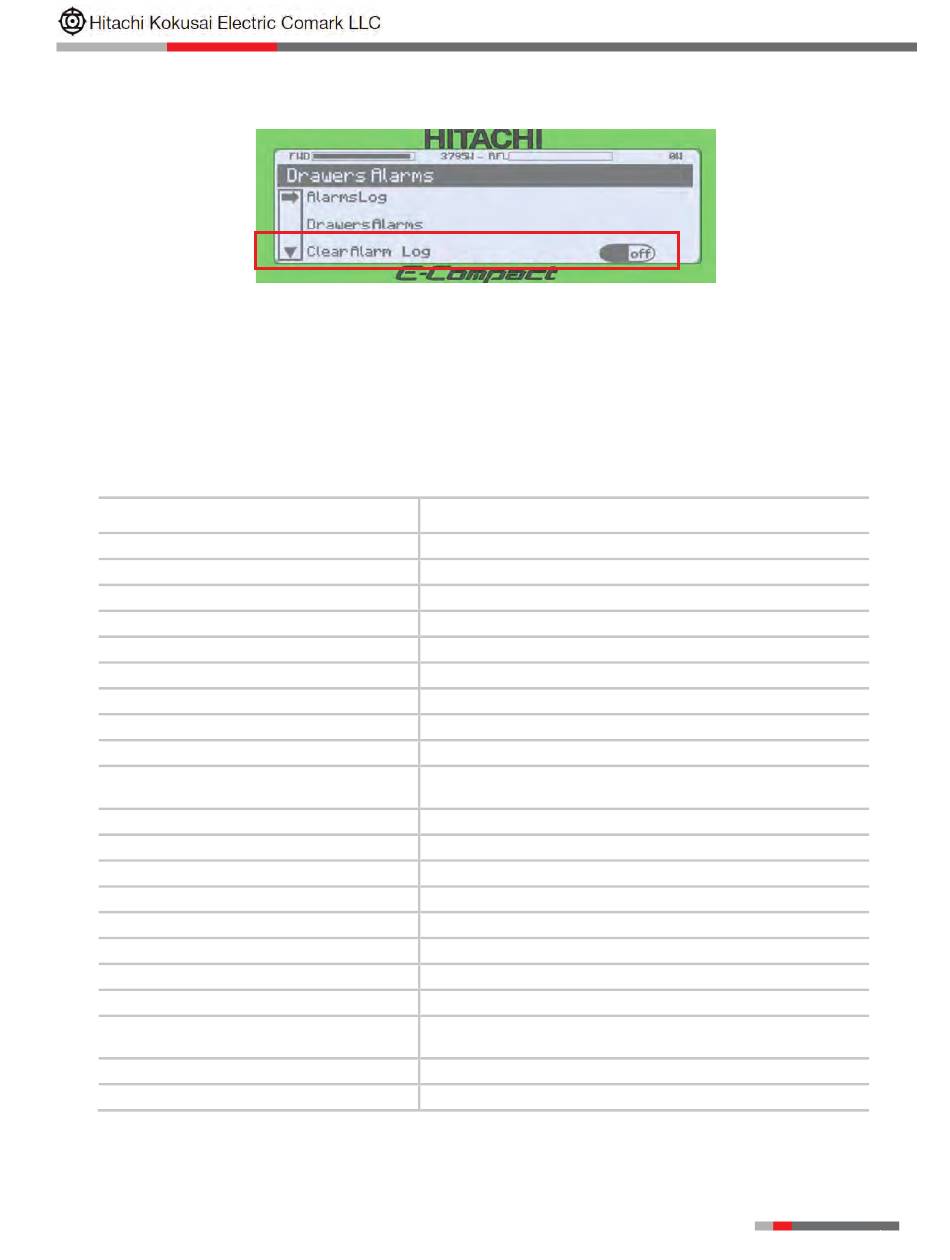

> Main Menu > System Alarms/Log > Clear Alarm Log:
Reset the main alarm list.
Select "On" to reset the Alarms Log list.
Control Module Main Alarm List
MAIN ALARM
8V Equipment Fail
Load Fan Fail
High Temperature Load
AC Fail
High Power Amplifier Communication
High Power Amplifier Active Alarm
Exciter Fail
Other Controle Module Fail
Power Amplifier OFF
ALC Max
uC Communication Fail
Too Few Drawers
Interlock Failure
RF Mute
Over Power
Reflected Power
Output Power Zero
Reduction Power By Reflected
Reduction Power By High Power Amplifier
50V Equipment Fail
15V Equipment Fail
ALARM DESCRIPTION
Control Module cannot read 8V from equipment
Control Module cannot read status from Load Fan
High temperature detected on Load
Control Module cannot detect AC mains from equipment
Control Module cannot communicate with Power Amplifiers
Current alarm on one or more Power Amplifiers
Control Module cannot communicate with Exciter
Control Module cannot communicate with its redundant unit
Control Module cannot get Power Amplifier status
Automatic Level Control set to maximum and not able to
drive the output power required
Web Server cannot communicate with microcontroller
Minimum amount of drawers required not activated
Interlock protection disabled
RF Output muted by itself or by an external command
Output Power exceeded allowed limit
Reflected Power exceeded the minimum allowed
Output power not detected by Directional Coupler
Power reduced to comply with reflected power limit
Power reduced to comply with maximum power provided by
each power amplifier
Control Module cannot read 50V from equipment
Control Module cannot read 15V from equipment
