Orion Pulse Arc Welders User Manual

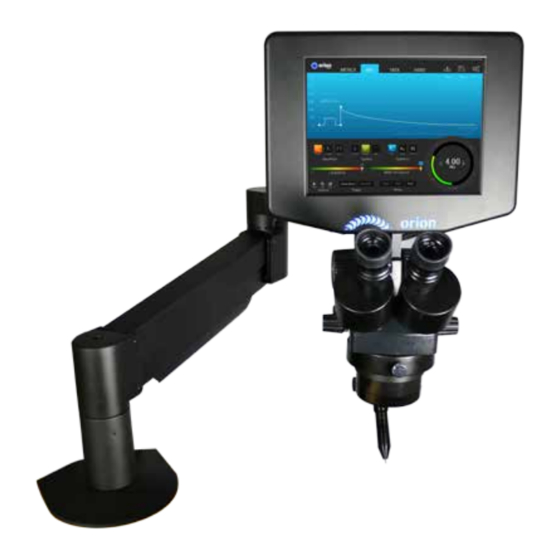

Orion 200i
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200i2 and is the answer not in the manual?

Questions and answers

Angelito Marapao
March 18, 2025

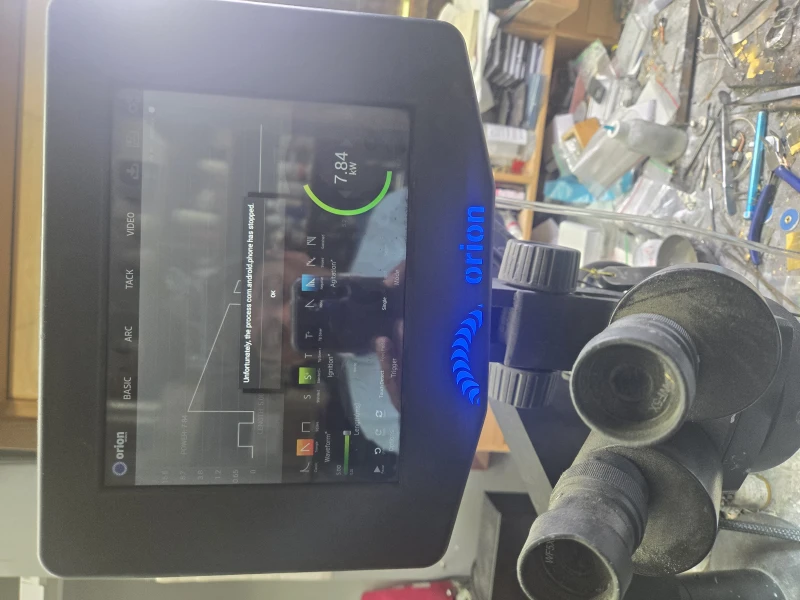

On the screen, it says Unfortunately, the process.com.android.phone has stopped.
