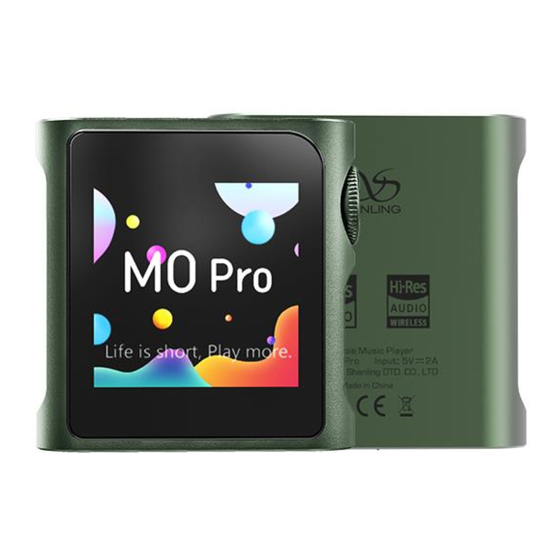

- Page 1 SHANLING M0 PRO Advanced User Manual Based on Firmware V1.2...
-
Page 2: Table Of Contents
TIPS ON USING TOUCH CONTROL ______________________________________________ 1 Transferring music to M0 PRO __________________________ 2 Micro SD card ______________________________________________________________ 2 Inserting and removing card from M0 PRO ________________________________________ 2 Transferring music files to the card from computer _________________________________ 2 System navigation ___________________________________ 3... - Page 3 TABLE OF CONTENTS Channel Balance __________________________________________________________ 5 Play Mode _______________________________________________________________ 5 Folder Skip _______________________________________________________________ 6 System Submenu ___________________________________________________________ 6 Update Library ____________________________________________________________ 6 Bluetooth ________________________________________________________________ 6 SyncLink ________________________________________________________________ 7 Brightness _______________________________________________________________ 7 Screen off _______________________________________________________________ 7 Idle ____________________________________________________________________ 7 Sleep Timer ______________________________________________________________ 7 USB Mode _______________________________________________________________ 8 Clock ___________________________________________________________________ 8 Lock screen ______________________________________________________________ 8...
- Page 4 Currently used Firmware version ______________________________________________ 13 Downloading new firmware _________________________________________________ 13 How to update ___________________________________________________________ 13 Advanced functions of M0 PRO ________________________ 14 M0 PRO as USB DAC/AMP ____________________________________________________ 14 Using M0 PRO with Windows ________________________________________________ 14 M0 PRO as USB Transport ____________________________________________________ 14...
-
Page 5: Basic Controls
SHANLING M0 PRO – ADVANCED USER MANUAL Basic controls POWER ON/OFF Press and hold the volume wheel for 3 seconds to power on M0 Pro. Press and hold the volume wheel for 3 seconds to power off M0 PRO. SCREEN LOCK Single press of the volume wheel will turn on/off screen of M0 PRO. -
Page 6: Transferring Music To M0 Pro
TRANSFERRING MUSIC FILES TO THE CARD FROM COMPUTER Fastest way to transfer bigger number of files to Micro SD card is to take card out of M0 PRO and use dedicated card reader, either external USB reader or one built-in into computer. -
Page 7: System Navigation
SHANLING M0 PRO – ADVANCED USER MANUAL System navigation MAIN MENU Main menu consists of 5 icons, representing Now playing screen and 4 submenus. Swipe left or right to circle between icons. For quick return back into main menu, hold your finger anywhere on the screen for 4 seconds. -
Page 8: Folders Submenu
Setting up default volume level after M0 PRO boots up. If “Vol. Memory” is enabled, M0 PRO will remember last volume level before it was turned off. Manual set up of default volume is possible once “Vol. Memory” disabled. M0 PRO will boot up and volume will be automatically changed to set value. -
Page 9: Gain
• H - High gain is suitable for more power demanding headphones, for which low gain is insufficient. Warning: Lower volume of M0 PRO before switching to high gain, to avoid any damage to hearing and equipment. ReplayGain Activate to eliminate volume differences between audio files. Supports both Audio Track and Album modes. -
Page 10: Folder Skip
M0 PRO will automatically follow up with file from following folder. SYSTEM SUBMENU Update Library To use My Music submenu, M0 PRO needs to scan Micro SD card for all the files. • Automatic - if enabled, M0 PRO will automatically scan Micro SD card each time card is inserted into M0 PRO and each time M0 PRO is disconnected from computer. -
Page 11: Synclink
Auto-shutdown – After set time of no usage and no playing music, M0 PRO will turn off completely. Note: It’s possible to disable both setting, in which case M0 PRO will stay turned on until user turns it off manually or until battery gets depleted. -
Page 12: Usb Mode
USB Storage – To connect M0 PRO to computer to transfer files onto inserted Micro SD card, Transferring music files to the card from computer • USB DAC – To use M0 PRO as external soundcard with your computer, M0 PRO as USB DAC/AMP •... -
Page 13: Output Options
M0 PRO. • LO – Line output, volume of M0 PRO is set to maximum, volume wheel has no effect. Use this setting when connecting other audio components with independent volume control to M0 PRO, such as pre-amplifiers, active speakers and others. -
Page 14: Language
• Ukrainian About M0 Displays information about M0 PRO and inserted Micro SD card. Important information is the “FW. Version”, indicating currently installed firmware version. Factory setting All settings will be reset to factory default, user’s data and music libraries will be deleted. -
Page 15: Now Playing Screen And Playback Controls
SHANLING M0 PRO – ADVANCED USER MANUAL Now playing screen and playback controls NOW PLAYING SCREEN “Now Playing screen” standardly displays cover art of currently playing file. If file has no cover art available, random cover art will be displayed instead. -
Page 16: Lyrics
SHANLING M0 PRO – ADVANCED USER MANUAL Click on middle lower icon will cycle between available playback speeds, from 1.0x – 1.25x – 1.5x – 2.0x. Lyrics Last Playback Controls screen displays lyrics. Lyrics are synchronized with playback. To enable this function, matching .Lrc file must be included alongside audio file. -
Page 17: System Update
M0 PRO. CURRENTLY USED FIRMWARE VERSION Visit About M0 PRO in “System” to find out version of firmware currently used on M0 PRO. If listed Fw. Version is lower than latest version published by Shanling, please update immediately. -
Page 18: Advanced Functions Of M0 Pro
Set it as “Default device” to finish set up. 4. To turn off USB DAC/AMP mode, tap on “Back” icon. Note: In USB DAC mode, it’s possible to turn off charging of the M0 Pro. Click on the settings icon in top right corner. -
Page 19: M0 Pro As Bluetooth Receiver
SHANLING M0 PRO – ADVANCED USER MANUAL Note 3: Some external DACs demands advanced drivers, more power from USB port and other special demands, which M0 PRO is not able to meet. Please test pairing of M0 PRO and DAC before purchasing. -
Page 20: Export Playlist
Exports all playlists from system into special “_explaylist_data” folder on Micro SD card. Note 1: We recommend to firstly export one playlist created on M0 PRO and then follow its structure for externally created playlists. As default system works with absolute paths, with driver A as default navigation.
