- Page 1 MODELS: G 530 T, G 554 T OPERATING INSTRUCTIONS, INSTALLATION & MAINTENANCE MANUAL INCLUDING SPARE PARTS LIST Mody Pumps Inc. 2166 Zeus Court Bakersfield, CA 93308 Tel.: (661) 392-7600 FAX.: (661) 392-7601 EMAIL: sales@modypump.com http://www.modypump.com ISO 9001 Certified...
- Page 2 Most accidents can be avoided by using COMMON SENSE. Please read the operation and maintenance instruction manual supplied with the pump. If you did not receive one, please call your local distributor before pump installation. Do not wear loose apparel that may become entangled in the impeller or other moving parts.

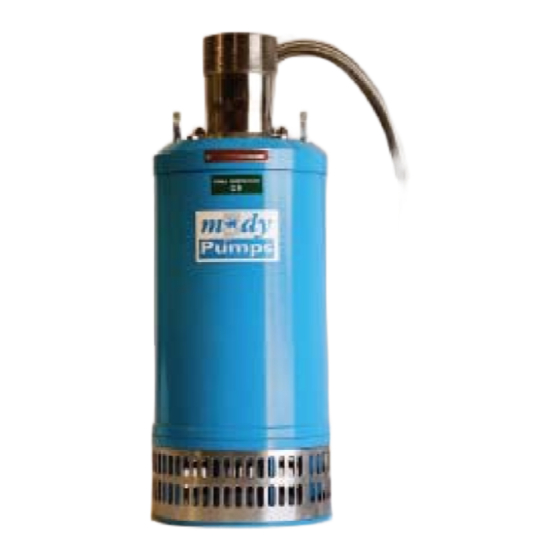

- Page 3 INTRODUCTION “mody” MOTOR DRIVEN PORTABLE SUBMERSIBLE PUMPS HAVE BEEN DEVELOPED DUE TO A LONG FELT NEED OF HAVING A TRULY MAINTENANCE FREE PUMPSET FOR VARIOUS APPLICATIONS. THE PUMP IS A LIGHTWEIGHT, COMPACT UNIT ENABLING IT TO BE USED IN MOST SEA-CRAFT DIFFICULT LAND...
-
Page 4: Overall Dimensions And Weight
OVERALL DIMENSIONS AND WEIGHT. G 530T G 554T OVERALL HEIGHT 28”(APPROX.)/711MM 31”(APPROX.)/790MM MAX. DIAMETER 10.75”/275MM 10.75”/275MM MAX. WEIGHT(EXCL. CABLE) 121 lbs./55KG 135 lbs./61KG MAINTENANCE SERVICES REQUIRED. THE FOLLOWING CHECKS TO BE DONE AT INTERVALS INDICATED BELOW: 1. CONDITION OF SEALS TO BE CHECKED AT EVERY 2500 HRS. OF OPERATION BY ASCERTAINING THE CONDITION OF OIL IN THE SEAL CHAMBER. - Page 5 12. FULL LOAD AMPS AT 460V IS 14AMPS (G554), 11.5AMPS (G530) & AT 400V IS 16 AMPS (G554), 12.5AMPS (G530) 13. ENSURE CORRECT RATING H.R.C. BACK UP PROTECTION FUSES ARE INSTALLED IN POWER CIRCUIT BEFORE STARTING THE PUMP.(REFER TABLE BELOW). MAINS VOLTAGE AT SITE HRC FUSE RECOMMENDED 220 VOLTS / 3 PHASE...
-
Page 6: Technical Description
TECHNICAL DESCRIPTION. THE MODY SUBMERSIBLE PUMP IS IN ITSELF A COMPLETE PUMPING STATION. BESIDES A POWER SUPPLY AND A DISCHARGE HOSE NO EXTRA EQUIPMENT IS REQUIRED. THE COMPLETE PUMPSET IS IN A MODULAR CONSTRUCTION ENSURING GOOD AND SIMPLE SERVICEABILITY. THE MAJOR DESIGN FEATURES ARE AS UNDER: THE MOTOR A RUGGED ALUMINUM DIE CAST/COPPER ROTOR... - Page 7 THE SEAL CHAMBER THE HEART OF THE MODY PUMP. TANDEM MECHANICAL, TUNGSTEN CARBIDE V/S TUNGSTEN CARBIDE SEAL FACES (LOWER SEAL) AND TUNGSTEN CARBIDE V/S TUNGSTEN CARBIDE (UPPER SEAL), SECONDARY SEALS OF HNBR RUBBER AND METAL PARTS IN STAINLESS STEEL, RUNNING IN AN OIL BATH, ENCLOSED IN A PRESSURE COMPENSATING RUBBER OIL BAG - CREATES THE ULTIMATE SEAL SOLUTION.
-
Page 8: Electrical Information
ELECTRICAL INFORMATION MOTORS ARE DESIGNED TO OPERATE ON SINGLE VOLTAGE AND FREQUENCY. MAX. DEVIATION IN VOLTAGE ALLOWED IS + - 6 % AND FREQUENCY +- 3%. CHECK NAME PLATE FOR OPERATING VOLTAGE AND FREQUENCY. DISMANTLING AND OVERHAULING GENERAL OVERHAUL AND OIL CHECK.(REF. DRGS. NO. DW/136/00 SHEETS 1 & 1. - Page 9 8. REMOVE THE FOUR NOS. DEEP SEATED CAP SCREWS (44) THAT HOLD THE LOWER BEARING BRACKET AGAINST THE INNER CASING. BY MEANS OF TWO NOS. SCREW DRIVERS REMOVE THE LOWER BEARING BRACKET FROM THE STATOR CASING (25). THE COMPLETE ROTOR (38) WITH BEARING (41), BEARING COVER (40) AND TUNGSTEN CARBIDE SEAT WILL COME OUT WITH THE LOWER BEARING BRACKET.
-
Page 10: Oil Specifications
5. FIT COMPLETE ROTOR ASSEMBLY IN STATOR HOUSING GUIDING UPPER BEARING IN TOP BRACKET BEARING SEAT. TIGHTEN FOUR CAP SCREWS (44). FIT UPPER TC SEAT IN LOWER BEARING BRACKET (LIGHTLY OIL THE RUBBER SEAT CUP --ENSURE THE SEAT SITS SQUARE IN THE BRACKET) AND SLIDE ON UPPER SEAL ASSEMBLY ON ROTOR SHAFT. -
Page 11: Parts Catalog
PARTS CATALOG 1. COMPONENTS LIST : AS PER DRAWING NO. DW/136/00 (SHEET 1 & 2). 2. SPECIAL TOOLS : S.NO. TOOL PART NO. DESCRIPTION QUANTITY T7005 IMPELLER SPANNER T5204 CIRCLIP PLIERS 8" T2104 ALLEN KEY 6 MM T9006 SEAL ASSEMBLY MANDREL T4102 BEARING PULLER 4"... - Page 14 PUMP MODEL G530T/E VER - 1.5 D.NO. PART # DESCRIPTION 065-016-79 CABLE AWG 10/4 SOOW 660-093-00 CABLE GLAND & GRIP 085-022-21 CABLE CLAMP 525-022-21 PH.PAN HD.SCREW 662-002-66 CABLE SUPPORT 370-006-21 HEX NUT 700-004-21 WASHER 380-010-66 "O" RING 260-029-66 CABLE GROMMET 600-057-40 CABLE GLAND SPACER 260-081-66...
- Page 15 PUMP MODEL G530T/E VER - 1.5 D.NO. PART # DESCRIPTION 535-022-00 MECHANICAL SEAL 080-005-21 CIRCLIP 545-008-21 SEAL HOUSING 650-003-21 STUD 700-002-21 WASHER 370-005-21 HEX NUT 600-034-21 CAP FOR CIRCLIP 150-004-66 OIL DIAPHRAGM 525-022-21 PH.PAN HD.SCREW 370-002-21 HEX NUT 085-007-21 OIL BAG CLAMP SMALL 085-008-21 OIL BAG CLAMP BIG 515-008-21...
- Page 18 PUMP MODEL G554T/E VER - 1.5 10/6/2008 D.NO. PART # DESCRIPTION 065-016-79 CABLE AWG 10/4 SOOW 660-093-00 CABLE GLAND & GRIP 085-022-21 CABLE CLAMP 525-022-21 PH.PAN HD.SCREW 662-002-45 CABLE SUPPORT 370-006-21 HEX NUT 700-004-21 WASHER 380-010-66 "O" RING 260-029-66 CABLE GROMMET 600-057-40 CABLE GLAND SPACER 260-081-66...
- Page 19 PUMP MODEL G554T/E VER - 1.5 D.NO. PART # DESCRIPTION 535-022-00 MECHANICAL SEAL 080-005-21 CIRCLIP 545-008-21 SEAL HOUSING 650-003-21 STUD 700-002-21 WASHER 370-005-21 HEX NUT 600-034-21 CAP FOR CIRCLIP 150-004-66 OIL DIAPHRAGM 525-022-21 PH.PAN HD.SCREW 370-002-21 HEX NUT 085-007-21 OIL BAG CLAMP SMALL 085-008-21 OIL BAG CLAMP BIG 515-008-21...
-
Page 21: Limited Warranty
LIMITED WARRANTY We warrant to our immediate customer and to the ultimate consumer that products of our manufacture will be free of defects in material and workmanship under normal use and service for the following time periods, when installed and maintained in accordance with our instructions.
