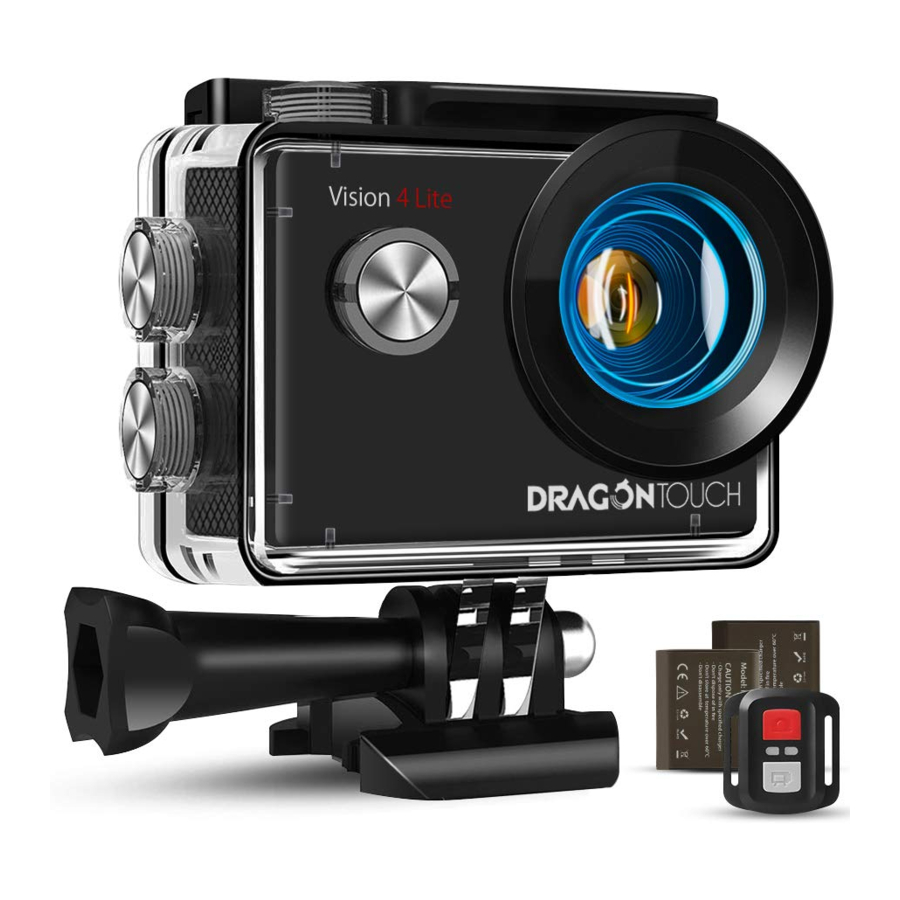

Dragon Touch Vision 4 Lite - Action Camera Manual

WHAT'S IN THE BOX

How to use all sorts of accessories of the device

Scan the following QR code or enter the website to watch the video.
www.youtube.com/watch?v=UqKtElRXqI8&feature=youtu.be

Unboxing: 00:00-00:19
How to remove the camera from the box it's mounted on? : 00:20-00:31
How to remove the camera from the waterproof case? : 00:32-01:05
How to mount the camera to a tripod? : 01:17-01:49
How to mount the camera to your body? : 01:50-02:08
How to mount the camera to a self stick? : 02:09-02:55
How to mount the camera to a bike? : 02:56-04:34
How to mount the protective backdoor? : 04:35-04:59
How to mount the camera to a helmet? : 05:03-11:16

YOUR DEVICE

1. Shutter / Select Button
2. Power / Mode / Exit Button
3. MicroSD Slot
4. Micro USB Port
5. Micro HDMI Port
6. External Mic Port
7. Lens
8. Screen
9. Charging Indicator
10. Working Indicator
11. Up / Wi-Fi Button
12. Down Button
13. Battery Door

Note: Camera does not record sound when it is in the waterproof case.

GETTING STARTED

Welcome to your new Vision 4 Lite. To capture video and photos, you need a microSD card (sold separately).

MICROSD CARDS

Use brand name memory cards that meet these requirements:

• MicroSD, MicroSDHC, or MicroSDXC.
• Class 10 or UHS-I rating.
• Capacity up to 64GB (FAT32).

Note: Please format the microSD card first in this camera before using. To keep your microSD card in good condition, reformat it on a regular basis. Reformatting erases all of your content, so be sure to offload your photos and videos first.

POWERING ON AND OFF

To Power On:
Press and hold the Mode button for three seconds. The camera beeps while the camera status light is on. When information appears on the LCD display or the camera status screen, your camera is on.

To Power Off:
Press and hold the Mode button for three seconds. The camera beeps while the camera status light is off.

SWITCHING MODE

To Switch Mode:
Press the Mode button to switch the mode.

To Exit Mode:
Press the Mode button to exit mode.

TURNING ON / OFF Wi-Fi

To Turn On Wi-Fi
Turn on camera, press Up button once. Wait for 3 seconds. The screen shows 'SSID: Vision 4 Lite'. Then you turn on Wi-Fi successfully.

To Turn Off Wi-Fi
Press Up button to turn off Wi-Fi.

OVERVIEW OF MODES

There are 8 modes: Video, Photo, Video Playback, Photo Playback, Video Setting, Photo Setting, General Setting and System Setting.

VIDEO MODE

Video Mode is the default mode when you turn on the camera.
In Video Mode, press Shutter button, the camera starts recording video. Press Shutter button to stop recording video.

PHOTO MODE

Press Mode button once to switch to Photo Mode after you turn on camera. In Photo Mode, press Shutter button, the camera takes a photo.

VIDEO PLAYBACK MODE

Press Mode button several times to switch to Video Playback Mode.
In Video Playback Mode, press the Up / Down button to scroll through the video files. Press Shutter button to open video in full-screen view. Press and hold the Up button for 3 seconds to delete the video.

PHOTO PLAYBACK MODE

Press Mode button several times to switch to Photo Playback Mode.
In Photo Playback Mode, press the Up / Down button to scroll through the Photo files. Press Shutter button to open photo in full-screen view. Press and hold the Up button for 3 seconds to delete the photo.

VIDEO SETTING MODE

Press Mode button several times to switch to Video Setting Mode.

PHOTO SETTING MODE

Press Mode button several times to switch to Photo Setting Mode.

GENERAL SETTING MODE

Press Mode button several times to switch to General Setting Mode.

SYSTEM SETTING MODE

Press Mode button several times to switch to System Setting Mode.

CUSTOMIZING YOUR UNIT

VIDEO SETTING

1. Video Resolution: 4K/30FPS, EIS 4K/30FPS, 2.7K/30FPS, 1080P/60FPS, 1080P/30FPS, 720P/120FPS
   Default setting is 4K/30FPS.
   Note: When capturing video at high resolutions or high frame rates in warm ambient temperatures, the camera may become warm and use more power.
2. EIS: On / Off
   Default setting is off.
   This setting adjusts the footage to offset for motion during capture. The result is smoother footage, especially in activities with relatively small but fast motion including cycling, motorcycling, and handheld uses.
   Note:
   1. If you turn on EIS, then select 4K/30FPS, EIS will be turned off automatically.
   2. If you select 4K/30FPS, then turn on EIS, the video resolution will be EIS 4K/30FPS automatically.
3. Loop Recording: Off / 1 Min. / 3 Min. / 5 Min.
   Default setting is off.
   Loop recording allows your camera to overwrite old files with new files. Once the memory card becomes full, the camera will delete the first video file to make room for the latest file. For example, if the setting for loop recording is "1 Minute", then the camera will create video clips of 1 minute in length, and a 1-minute clip will be deleted when the camera needs more memory.
4. Time Lapse Video: Off / 1 Sec. / 5 Sec. / 10 Sec. / 30 Sec. / 60 Sec.
   Default setting is off.
   Time Lapse Video creates video from frames captured at specific intervals. This option lets you capture a time lapse event and immediately view or share it as a video. Time Lapse Video is captured without audio.
5. Slow Motion: Off, 1080P/60FPS, 720P/120FPS
   Default setting is off.
   Slow motion is an effect in film-making whereby time appears to be slowed down.
   Note: If you use Slow Motion function, EIS will be turned off automatically.
   Slow motion video is captured without audio.
6. Audio Record: On / Off
   Default setting is on.
   Turn off Audio Record, the camera does not record audio when you record video.

PHOTO SETTING

1. Photo Resolution: 20M / 16M / 14M / 12M / 8M / 5M
   Default setting is 14M.
2. Time Lapse Photo: Off / 2 Sec. / 5 Sec. / 10 Sec.
   Default setting is off.
   Time Lapse Photo captures a series of photos at specified intervals. Use this mode to capture photos of any activity, then choose the best ones later.
3. Burst Photo: Off / 3 Photos / 5 Photos
   Default setting is off.
   Burst captures up to 5 photos in 1 second, so it is perfect for capturing fast-moving activities.

GENERAL SETTING

1. Volume: 0-10
   Default setting is 10.
   Press Up button to turn up the volume.
   Press Down button to turn down the volume.
2. Beep: On / Off
   Default setting is on.
   Sets the volume of your Vision 4 Lite's alerts.
3. Exposure: 2 / 1.7 / 1.3 / 1 / 0.7 / 0.3 / 0 / -0.3 / -0.7 / --1 / -1.3 / -1.7
   Default setting is 0.
   By default, your camera uses the entire image to determine the appropriate exposure level.
   However, Exposure lets you select an area that you want the camera to prioritize when determining exposure. This setting is particularly useful in shots where an important region might otherwise be over- or underexposed.
   When you change this setting, the LCD display immediately shows you the effect on your image. If you change modes, the camera returns to using the entire scene to determine the correct level of exposure.
4. White Balance: Auto / Daylight / Cloudy / Fluorescent / Incandescent Default setting is auto.
   White Balance lets you adjust the color temperature of videos and photos to optimize for cool or warm lighting conditions. When you change this setting, the LCD display immediately shows you the effect on your image.
5. ISO: Auto / 100 / 200 / 400 / 800 / 1600 / 3200
   ISO determines the camera's sensitivity to light, and creates a trade-off between brightness and resulting image noise. Image noise refers to the degree of graininess in the image.
   In low light, higher ISO values result in brighter images, but with greater image noise. Lower values result in lower image noise, but darker images. When you change this setting, the LCD display immediately shows you the effect on your image.
6. Effect: Normal / Sepia / B&W / Negative Default setting is normal.
7. Contrast: -100 - +100
   Default setting is 0.
8. Saturation: -100 - +100
   Default setting is 40.
9. Sharpness: -100 - +100
   Default setting is 0.
   Sharpness controls the quality of details captured in your video footage or photos. When you change this setting, the touch display immediately shows you the effect on your image.

SYSTEM SETTING

1. Language: English / Español / Deutsch / Italiano / Français / Иѽএߎޙ /ކ寉
   Default setting is English.
   Sets the language that appears on the camera.
2. Car Mode: On / Off
   Default setting is off.
   If you turn on car mode and connect camera with car cigarette lighter, the camera will turn on automatically if you start your car and will turn off if you stop your car.
3. Power Off: Off / 1 Min. / 3 Min. / 5 Min.
   Default setting is 3 minutes. Powers off your Vision 4 Lite after a period of inactivity to save battery life.
4. Date & Time: MM / DD / YY, HH / MM / SS
   The date and time are automatically updated when you connect your camera to the Live DV app. However, you can manually change these settings, if needed.
   Note: If the battery is removed from the camera for an extended period of time, the date and time will be reset automatically.
5. Date Format: None, YYYY MM DD, MM DD YYYY, DD MM YYYY
   Default setting is MM DD YYYY.
   If you turn on Date Stamp, this camera adds date stamp to the videos or photos you take.
   If you select None, this camera will not add date stamp to the videos or photos you take.
6. Frequency: 50 Hz/60 Hz
   Default setting is 50 Hz.
7. Upside Down: On / Off
   Default setting is off.
   This setting determines the orientation of your video or photos to help you prevent upside down footage.
8. Screen Saver: Off / 1 Min. / 3 Min. / 5 Min.
   Default setting is 1 minute.
   Turns off the LCD display after a period of inactivity to save battery life. To turn on the LCD display again, press any button on the camera.
9. Format: Yes / No
   To keep your microSD card in good condition, reformat it on a regular basis. Reformatting erases all of your content, so be sure to offload your photos and videos first.
   To reformat your card, press the mode button to enter system setting, then press down button several times to enter Format > Format Card? > YES.
10. Reset: Yes / No
    This option resets all settings to their default values.
11. FM Version: Brand / Model / Version / Updated
    You can check the brand, model, version and updated time of your Vision 4 Lite.

CONNECTING TO THE LIVE DV APP

The Live DV app lets you control your camera remotely using a smartphone or tablet. Features include full camera control, live preview, playback and sharing of content, and camera software updates.

1. Download Live DV app to your mobile device from the Apple App Store or Google Play.
2. Turn on the camera, then press Up button once. Wait for 3 seconds. The screen shows 'SSID: Vision 4 Lite'.
3. Turn on Wi-Fi of your mobile device, connect to the Wi-Fi SSID: 'Vision 4 Lite'.
4. Enter the password: 1234567890.
5. Open the app Live DV.

PLAYING BACK YOUR CONTENT

You can play back your content on the camera's LCD display, your computer, TV, or smartphone / tablet.
You can also play back content by inserting the microSD card directly into a device, such as a computer or compatible TV. With this method, playback resolution depends on the resolution of the device and its ability to play back that resolution.

VIEWING VIDEOS AND PHOTOS ON YOUR UNIT

1. Enter Video or Photo playback mode. If your microSD card contains a lot of content, it might take a minute for it to load.
2. Press the Up / Down button to scroll through the video or photo files.
3. Press Shutter button to open video or photo in full-screen view.
4. To return to the thumbnails screen, press Mode button.
5. To exit the gallery, press Mode button.

DELETING VIDEOS AND PHOTOS ON YOUR DEVICE

1. Enter Video or Photo playback mode. If your microSD card contains a lot of content, it might take a minute for it to load.
2. Press the Up / Down button to locate the file you want to delete.
3. Press and hold the Up button for 3 seconds. The screen shows 'Delete Selected File? YES / NO'.
4. Press Shutter button, the selected file will be deleted.

ADJUSTING THE ZOOM LEVEL

The Zoom function lets you adjust how close or far away the subject appears in your photo.
The default is no zoom. Zoom function is available in 14MP Photo Mode and below 14MP Photo Mode only.

1. Turn on Vision 4 Lite.
2. Enter Photo Mode.
3. Press and hold Up or Down button to adjust the zoom level.

OFFLOADING YOUR CONTENT

OFFLOADING YOUR CONTENT TO A COMPUTER

To play back your video and photos on a computer, you must first transfer these files to a computer. Transferring also frees up space on your microSD card for new content. To offload files to a computer using a card reader (sold separately) and your computer's file explorer, connect the card reader to the computer, then insert the microSD card. You can then transfer files to your computer or delete selected files on your card. You can also offload files to a Windows computer using a USB cable.

Note: This camera does not support Mac computer.

OFFLOADING YOUR CONTENT TO SMARTPHONE OR TABLET

1. Open the 'Live DV' app.

2. Tap 'Folders'.
3. Tap 'Camera' at the top of the screen.

4. Tap the file you want to download.
5. Tap 'Save'.


REFORMATTING YOUR MICROSD CARD

To keep your microSD card in good condition, reformat it on a regular basis. Reformatting erases all of your content, so be sure to offload your photos and videos first.

1. Press and hold Mode button for 3 seconds to turn on the camera.
2. Press Mode button several times to enter System Setting.
3. Press Down button to find the 'Format' option.
4. Press Shutter button, the screen shows 'Format Card? All data will be deleted.'
5. Press Shutter button again. You format your microSD card successfully.

MAINTENANCE YOUR UNIT

Follow these guidelines to get the best performance from your camera:

1. For best audio performance, shake the camera or blow on the mic to remove debris from the microphone holes.
2. To clean the lens, wipe it with a soft, lint-free cloth. Do not insert foreign objects around the lens.
3. Don't touch the lens with fingers.
4. Keep the camera away from drops and bumps, which may cause damage to the parts inside.
5. Keep the camera away from high temperature and strong sunshine to avoid being damaged.

MAXIMIZING BATTERY LIFE

If the battery reaches 0% while recording, the camera saves the file and powers off.
To maximize battery life, follow these guidelines when possible:

• Turn off Wireless Connections
• Capture video at lower frame rates and resolutions
• Use Screen Saver setting.

BATTERY STORAGE AND HANDLING

• The camera contains sensitive components, including the battery. Avoid exposing your camera to very cold or very hot temperatures. Low or high temperature conditions may temporarily shorten the battery life or cause the camera to temporarily stop working properly.
• Avoid dramatic changes in temperature or humidity when using the camera, as condensation may form on or within the camera.
• Do not dry the camera or battery with an external heat source such as a microwave oven or hair dryer. Damage to the camera or battery caused by contact with liquid inside the camera is not covered under the warranty.
• Do not store your battery with metal objects, such as coins, keys or necklaces. If the battery terminals come in contact with metal objects, this may cause a fire.
• Do not make any unauthorized alterations to the camera. Doing so may compromise safety, regulatory compliance, performance, and may void the warranty.

Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate or paint the camera or battery. Do not insert foreign objects into the battery opening on the camera. Do not use the camera or the battery if it has been damaged-for example, if cracked, punctured or harmed by water. Disassembling or puncturing the battery can cause an explosion or fire.

REMOTE

Splashproof only, not waterproof

VIDEO

To record Video, verify the camera in Video mode.

To start recording:
Press the Grey Video Button. The camera will emit one beep and the camera light will flash while recording.

To stop recording:
Press the Grey Video Button again. The camera will emit one beep and the camera light will stop flashing while recording.


To capture a photo, verify the camera in Photo mode.

To take a photo:
Press the Red Photo Button. The camera will emit a camera shutter sound.

CR2032 BATTERY REPLACEMENT FOR UNIT REMOTE

1. Use a 1.8mm Phillips tip screwdriver to remove the 4 screws on the back cover of the remote, allowing you to open it.

2. Remove another 4 screws on PCB board.

3. Lift the PCB board and slide out the battery, as shown in the picture.
   Note: Do NOT rotate the PCB board to avoid reversing the camera and video button functions.

4. Install the new battery, keeping the "+" pole facing up.
5. Install all 4 screws back onto the PCB board.

6. Install all 4 screws back into the cover.

MOUNTING YOUR DEVICE

Attach your camera to helmets, gear and equipment.

CONTACT US

For any inquires with Dragon Touch products, please feel free to contact us, we will respond within 24 hours.
E-mail: cs@dragontouch.com
Tel: 1-888-811-1140 (US) Mon-Fri (except holiday) 9am-5pm (EST)
Official website: www.dragontouch.com

Documents / Resources

References

• How To Properly Install AKASO Action Camera Accessories. - YouTube
• Dragon Touch Android Tablet PC, 4k Action Camera & Sports DV Camera at Dragon Touch

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dragon Touch Vision 4 Lite - Action Camera Manual
