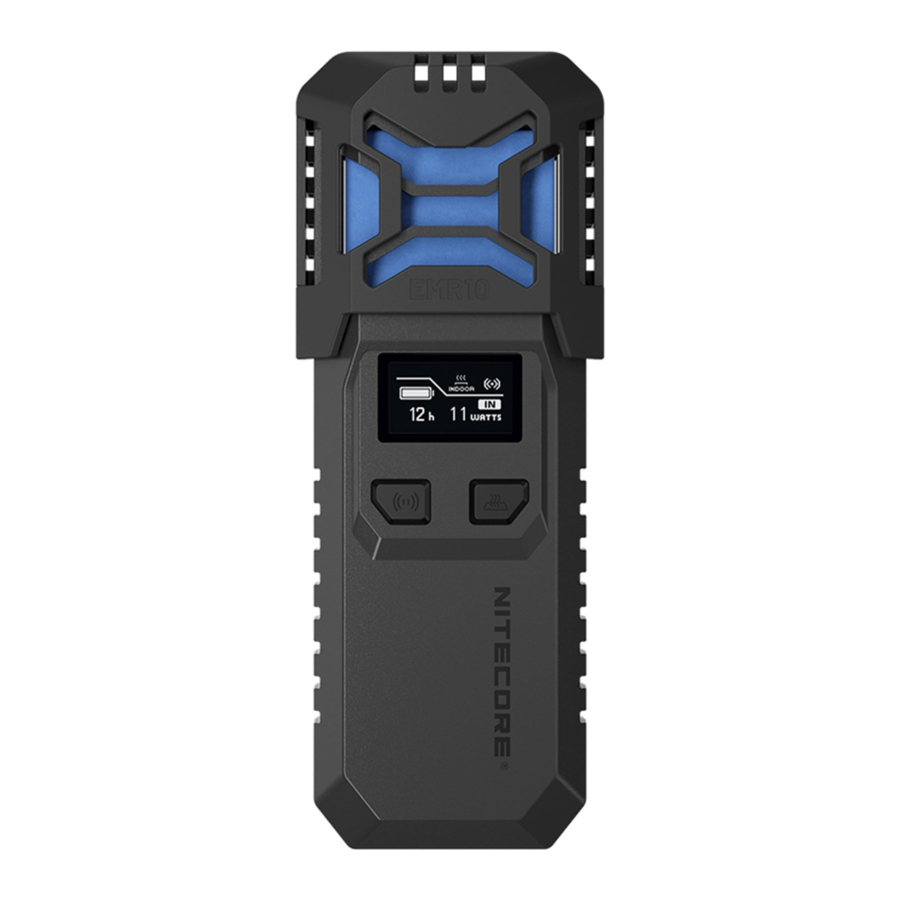

Nitecore EMR10 - Portable Electronic Multipurpose Repeller Manual

Product Introduction

The EMR10 is specially designed for outdoor activities, such as outdoor work, camping, fishing, trekking and more.

Specifications

Read all instructions before use.
This product is intended for adult use only. This product is not a toy.

Battery Installation

1. Slide the Battery Cover Lock Switch on the bottom to open the battery cover.
2. Ensure the battery(s) is/are inserted with the negative end towards the spring. The product will not work if the battery(s) is/are incorrectly inserted.
3. Cover the battery cover and slide the Battery Cover Lock Switch to lock it.

Charging

Connecting to the External Power
Use the USB cable to connect an external power supply (e.g. a USB adapter, a power bank or other USB charging device) to the USB charging port to begin the charging process. (Input: 5V⎓2.4A / 9V⎓2A)

Note:
The mosquito repelling function and ultrasonic function can be activated during the charging process.

Operating Instructions

Mosquito Repelling Function

• On: When the mosquito repelling function is off, long press the Mosquito Repelling Button to turn it on, and the corresponding indicator will turn green.
• Off: When the mosquito repelling function is on, long press the Mosquito Repelling Button to turn it off, and the corresponding indicator will be off.
• Mode Switching: When the mosquito repelling function is on, short press the Mosquito Repelling Button to switch between Indoor Mode and Outdoor Mode.

Ultrasonic Function

• On: When the ultrasonic function is off, long press the Ultrasonic Button to turn it on, and the corresponding indicator will turn green.
• Off: When the ultrasonic function is on, long press the Ultrasonic Button to turn it off, and the corresponding indicator will be off.

Note:
Humans can barely hear ultrasound (above 20,000Hz).

Lockout / Unlock

• Lockout: When both functions are off, double press the Mosquito Repelling Button to access Lockout Mode. In this case, the mosquito repelling function and the ultrasonic function are both unavailable.
• Unlock: When the product is in the Lockout Mode, double press the Mosquito Repelling Button to unlock the mosquito repelling function and the ultrasonic function.

Hibernation Status

The EMR10 will enter hibernation after 30 seconds if the USB-C port is not in use while the mosquito repelling function and ultrasonic function are off. In this case, the OLED display will be off; press either button to show the remaining battery power.

OLED Real-time Display

• When the mosquito repelling function or ultrasonic function is turned on, the OLED display will show the selected function, selected mode, runtime and more.
• During the charging process, the OLED display will show the charging power, battery percentage and more.
• During the discharging process, the OLED display will show the output power, runtime and more.

Using the EMR10

1. When the product is off, insert 1 repellent mat into the Repellent Mat Placement Area.
2. Long press the Mosquito Repelling Button to activate the mosquito repelling function.
3. The protection zone will be created after 10 minutes.
4. After use, long press the Mosquito Repelling Button to turn off the mosquito repelling function. Please store the product after cooling completely.

Note:
NITECORE Mosquito Repellent Mat Size: 34mm x 48mm / 1.34" x 1.89" (up to 6 hours each)

Mosquito Repellent Mat Replacement

Make sure the EMR10 is off and cooled. Insert a new repellent mat while pushing out the used one.

EMR10 Placement

• Place the EMR10 upwind of the mosquito repellent area if it is windy.
• DO NOT cover the EMR10 during the using process.
• It is recommended to use multiple EMR10 together to create a larger protection zone.

Charging the External Device

USB Output:
Available with the USB output, the EMR10 can be used as a power supply to charge external devices.

Connecting to the External Device:
Use the USB cable to connect an external USB device to the USB charging port to begin the charging process.

Note:
During the discharging process, the USB output will be automatically off to protect the battery if the battery voltage is low.

Storage and Transportation

• Store the product in ventilated and dry places at room temperature.
• The battery should be removed to store separately when left unused for a long time.

Safety Instructions

1. The product is designed to be used by adults. Keep the product out of reach of children.
2. Children under 16 years old must be under adult supervision when using this product to prevent scalds and accidents.
3. DO NOT place the product in water.
4. DO NOT put your fingers, metals or foreign matters into the product to avoid accidents or damage.
5. DO NOT use the product in a confined space.
6. Stop using the product and dispose of it immediately if there is any leakage, odor, or deformation in the battery.
7. It is recommended to use with NITECORE Li-ion batteries or others with safety certification.
8. DO NOT expose the product to temperatures above 60°C (140℉) for a long time.
9. DO NOT disassemble or modify the product without authorization, as this will cause the warranty to be nullified. Please check the Warranty Service for details.
10. Please install the Heat Insulation Guard when using the product to prevent scalds.
11. When using two 21700 Li-ion batteries, please use two with the same capacity while the voltage difference between them is less than 0.1V to avoid damage to the battery or circuit.
12. Dispose of the device/batteries in accordance with applicable local laws and regulations.

Warranty Service

All NITECORE^® products are warranted for quality. Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE^® products can be repaired free of charge within 12 months from the date of purchase. Beyond 12 months, the charge for accessories, replacement parts and delivery shall be at your own expenses.

The warranty will be nullified if

1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. the product(s) is/are damaged due to improper use.

For the latest information on NITECORE^® products and services, please contact a local NITECORE^® distributor or send an email to service@nitecore.com

※ The trademarks and product images specified herein this user manual are for reference purposes only. The copyright belongs to their lawful holders.

※ All images, texts and statements specified herein this user manual are for reference purposes only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.

NOTE:
Please ensure this warranty card is fully completed by the distributor or retailer after purchasing the product. Should the product fail to operate correctly during the warranty period, it may be returned with the completed warranty card and original sales receipt to the retailer or local distributor for replacement or repair.

Customer Service Email: service@nitecore.com

SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address: Unit 6355, 5/F, No.1021 Gaopu Road, Tianhe District, Guangzhou, 510653, Guangdong, China

Made in China

Please find us on facebook: NITECORE Charger
Thanks for purchasing NITECORE!
