Summary of Contents for RGBLE MHD-WA-HUT-50

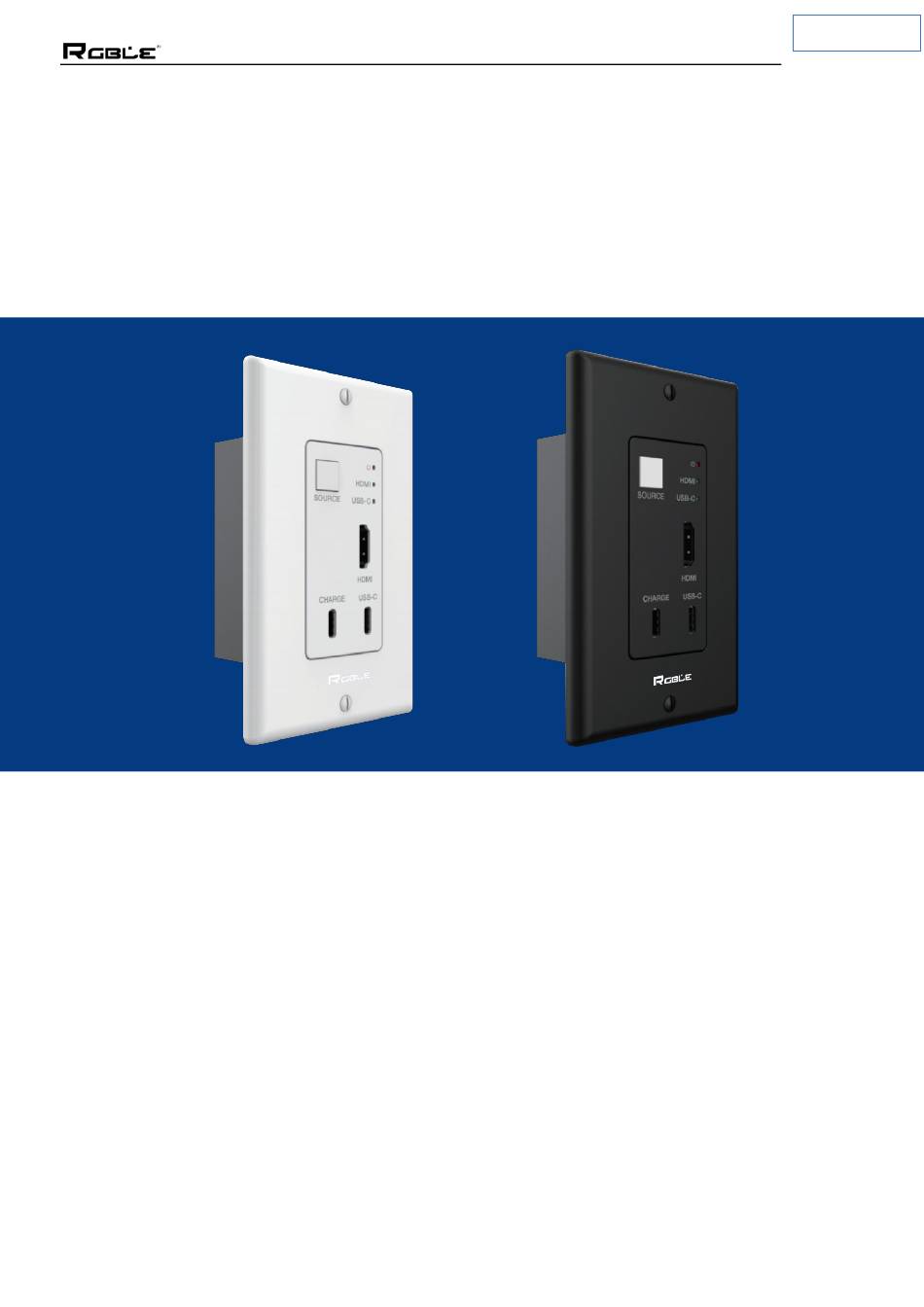

- Page 1 P/N: U00605 18Gbps CAT 50M with USB-C/HDMI Wall Plate Transmitter User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 2: Table Of Contents
P/N: U00605 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc. -
Page 3: Introduction
Input signal selection supports automatic mode and manual mode ◼ Support POC function (only from Receiver to Transmitter) ◼ Available in white or black coating 3. Package Contents ① 1× 18Gbps CAT 50M with USB-C/HDMI Wall Plate Transmitter ② 1 x User Manual Stock Code 873117 en.rgble.com 400-1661-021... -
Page 4: Specifications
P/N: U00605 4. Specifications Brand Name RGBLE Model Number MHD-WA-HUT-50 Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 DP Compliance Display Port 1.2a Video Bandwidth HDMI: 18Gbps; USB-C：5.4Gbps HDMI Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 Color Depth 8/10/12-bit (1080P@60Hz)，8-bit（4k@60Hz）... -
Page 5: Operation Controls And Functions
Connect this port to power supply, then the USB-C port will power the port connected device. SOURCE Used to switch HDMI / USB-C input signal. button ⑧ CAT6 OUT Connect to the CAT IN port of Receiver with a CAT5e/6 cable. ⑨ FW port Firmware update port. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 6: Receiver Panel
SOURCE button to select HDMI/ USB-C input source. In automatic switching mode, the last connected or the currently connected source signal will be selected automatically; When both HDMI and USB-C ports are connected to active signal, HDMI signal input is preferred. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 7: Product Dimensions
P/N: U00605 6. Product Dimensions 7. Application Example Stock Code 873117 en.rgble.com 400-1661-021...
