Summary of Contents for VMAXTANKS VPG750

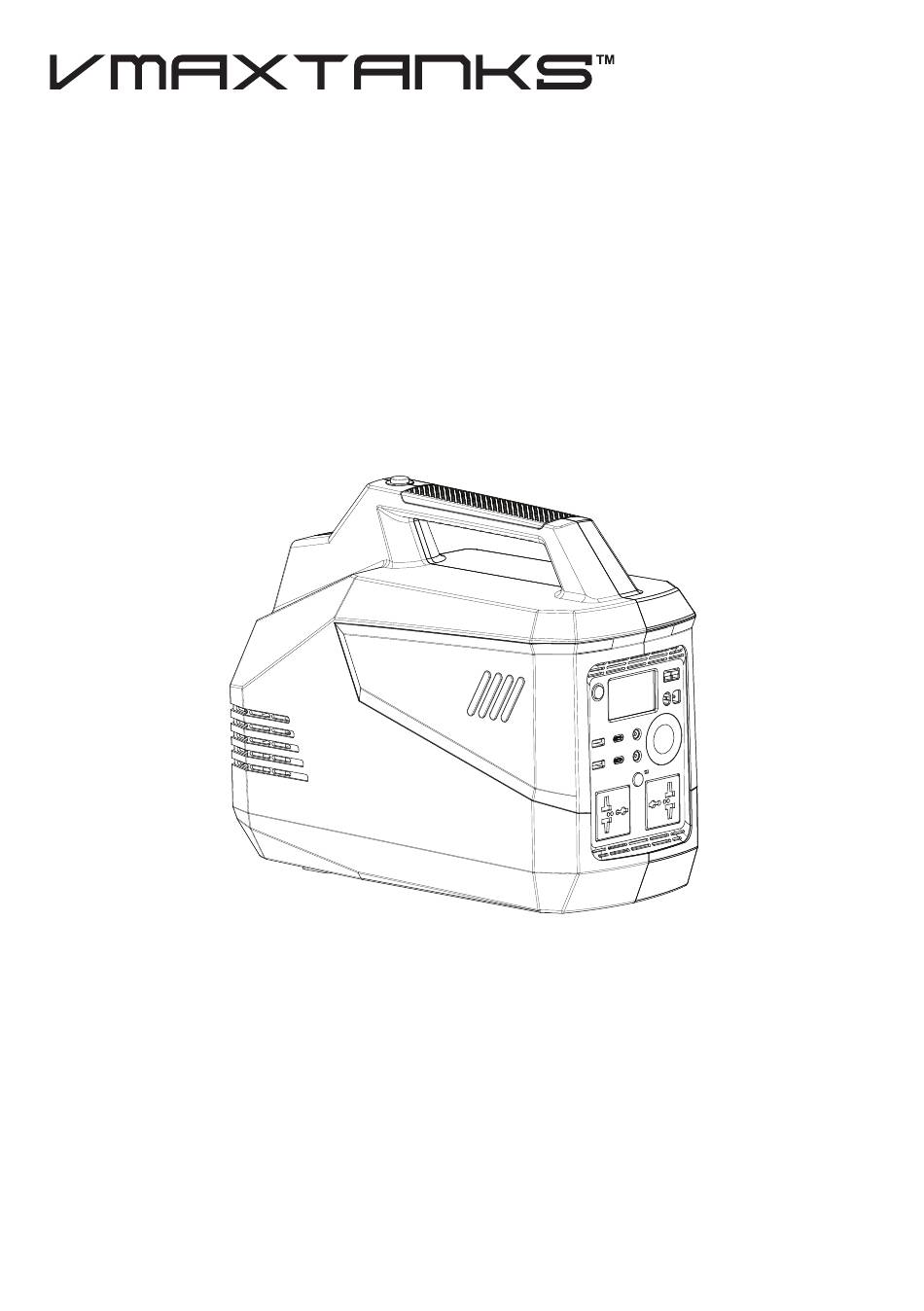

- Page 1 Portable Power Supply Ideal for Tailgating, Camping & Emergency Power VPG750 User Manual...
-
Page 2: What's Inside The Box
VMAX portable generators. * Please use the included charger to fully charge your VMAX portable generator. * Please read this manual before using your VMAX portable generator. What's inside the box Packing List VPG750 Charger Manual Optional Accessories Solar Panel... - Page 3 VPG750 Parts List 1. ON/OFF power switch 2. LCD screen 3. AC Charger input 4. Solar charging input 5. USB outputs 6. 12V DC outputs 7. Cigar lighter output 8. AC output button 9. AC output indicator 10. AC outputs...
- Page 4 ( Power On Press for 3 seconds to turn on the VPG750. During the start-up process, all the icons on the LCD screen will display. The LCD screen will turn to normal display if all functions are normal.
- Page 5 Using 5V Output USB outputs can be used to charge your devices. When the VPG750 detects the load, the USB icon ( ) on the LCD screen will be activated. The VPG750 has both USB-A and Type-C ports. Please see the technical specifications for output parameters on Page 9.
- Page 6 Power Off When finished using your VPG750, please power it off by following these steps: ① Remove all the connected cables and loads. ② Press the AC Output button to turn off the AC output.
- Page 7 Recharging Wall Charging Important: Please do not discharge your VPG750 while charging! Solar Charging Recharge time: approximately 7-10 hours. Place solar panels toward the sun at a proper angle to significantly improve solar charging efficiency. The following estimated charging times are based on the most ideal conditions:...
- Page 8 LCD Screen Guide Battery Battery Power Indicator Output USB in use 12V DC in use 12V Cigarette Lighter in use AC Power Indicator Icon rotates when DC power is in use or AC is on Input Solar Charging AC Charging Charging Indicator Warning States Item Buzzer...
-
Page 9: Troubleshooting
Please contact VMAX USA for repair or replacement Please charge VPG750. Please check and ensure the powerof loads are within the allowed range. Please turn off VPG750. and restart after cooling down. Please contact VMAX USA for repair or replacement... -
Page 10: Specifications
VPG750: 786.24Wh (10.8V / 72.8Ah) VPG750: 16.5lbs (7.5kg) 13.7 × 6.3 × 11.2 in(349 × 160 × 285 mm) VPG750:AC Wall Charger 12.6V / 10A 12.5V-25V / Max. Power up to 125W 2 x 5V 2.4A / 9V 2A / 12V 1.5A 2 x 20V 3.25A / 15V 3A / 12V 3A / 9V 3A / 5V 3A... - Page 11 Please use the included charger when charging via an AC wall outlet. To maximize the service life of your VPG750, do not discharge below 20% state of charge. Note: Discharging below 20% is acceptable. Please do not expose VPG750 to fire or high temperature (under direct sunlight or in vehicle under high heat), which may cause accidents such as fire and explosion.
-
Page 12: Customer Service
Customer Service Lifetime Technical Support 18-month Limited Warranty Please contact us or visit our website for more information. VMAX USA 5850 Sheldon Rd, Belleville, Mi 48111 1-888-862-9826 | info@vmaxtanks.com | vmaxtanks.com All rights reserved.
