User manual

V1.0 | EN | April 2023

Professional Portable Power Station

PST.2500/3

Table of Contents

Need help?

Do you have a question about the PST.2500/3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Euroboor PST.2500/3

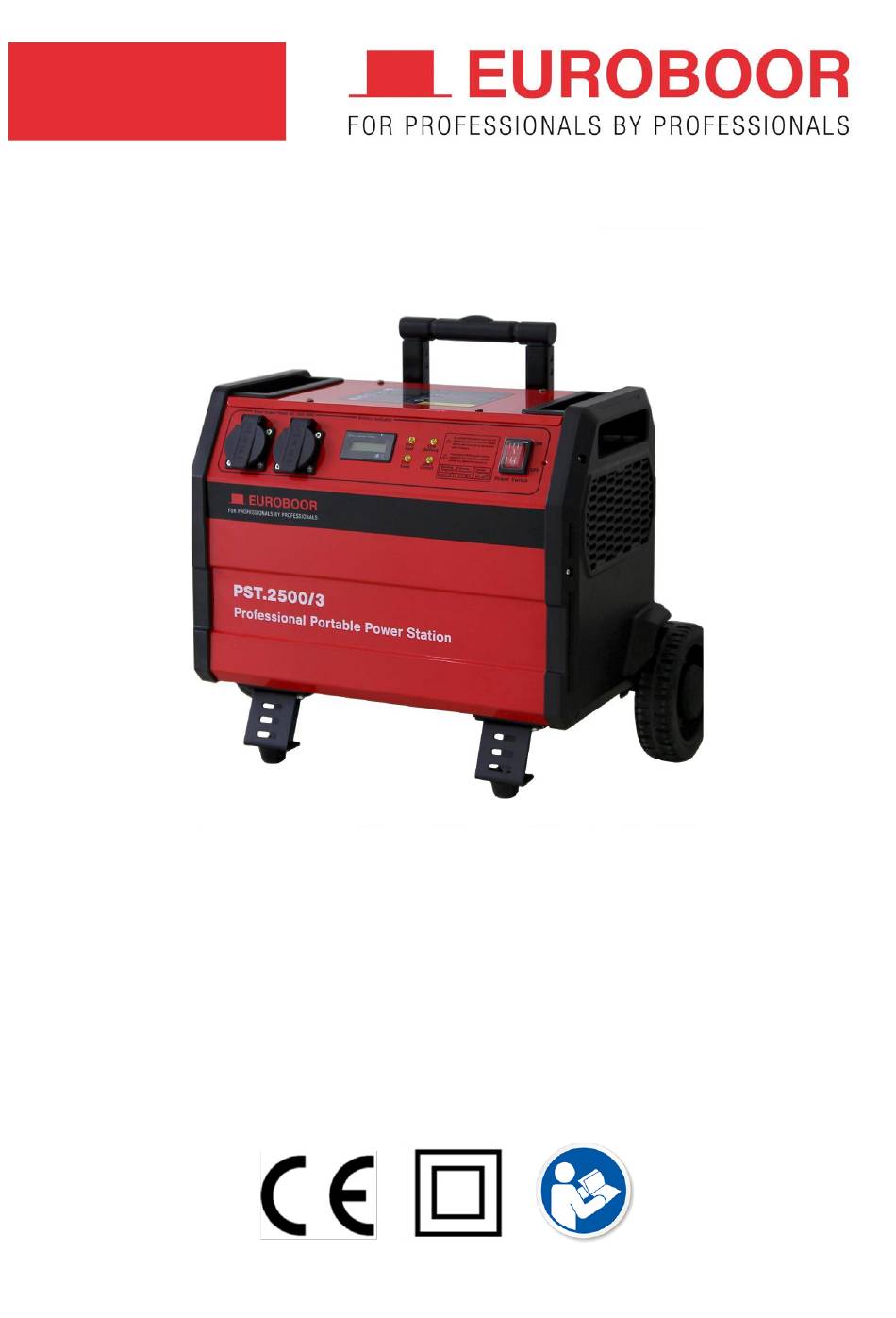

Page 1 User manual V1.0 | EN | April 2023 Professional Portable Power Station PST.2500/3...
Page 2 Congratulations on the purchase of your EUROBOOR Professional Portable Power Station PST.2500/3. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
Page 3: Table Of Contents
Table of contents Table of contents ......................... 3 1. Safety ............................4 1.1 General safety information ......................4 1.2 Specific safety information ......................7 2. Description ..........................8 2.1 Intended use ..........................8 2.2 Box content ........................... 8 2.3 Features ............................9 2.4 Technical data ..........................
Page 4: Safety
1. Safety 1.1 General safety information WARNING: When using the Professional Portable Power Station, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. READ AND UNDERSTAND ALL SAFETY INFORMATION AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Page 5 ELECTRICAL SAFETY DANGER 1. Plugs of the Power Station and any device connected to the Power Station must match the outlet. Never modify the plug or outlet in any way. Do not use any adapter plugs. Unmodified plugs and matching outlets will reduce risk of electric shock.
Page 6 3. Prevent unintentional starting of any connected devices. Ensure Power Switch of the Power Station is in the off-position before connecting devices to the power station. 4. Remove any adjusting key or wrench before turning on any device that is connected to the Power Station.
Page 7: Specific Safety Information
1. The working temperature of the charger is 0 to 40℃. It is strictly prohibited to use the charger outside these temperature ranges. 2. Please only use the original EUROBOOR charger for charging the Power Station. It is strictly prohibited to use other chargers for charging the Power Station.
Page 8: Description
The machine should also not be converted or modified for any other form of use other than described in this manual. The user is liable for damages and accidents resulting from any modifications made or incorrect use. 2.2 Box content 1x Professional Portable Power Station PST.2500/3 1x Charger for PST.2500/3 1x User manual...
Page 9: Features
2.3 Features Power Station [Image 2-1] 1. On-/Off-switch 6. Socket EU plugs 2 x 220V 2. Warning panel 7. Extendable moving handle 3. Battery status indicator 8. Lifting handle 4. Caution Indicators 9. Air vents 5. Safety information 10. Wheels...
Page 10 Front panel [Image 2-2] 1. On-/Off-switch 5. ‘Over Load’ LED indicator 2. ‘Low Battery’ LED indicator 6. Battery Indicator 3. ‘Over Heat’ LED indicator 7. AC 220V Outlet 4. ‘Short Circuit’ LED indicator 8. AC 220V Outlet Back panel...
Page 11 9. AC 220V Outlet 10. Charging Port 15A 11. DC Output Port 48V 12. Earth Lead Charger [Image 2-4] 1. Charger power output cable 2. Charger specifications and safety information 3. Charger power input cable...
Page 12: Technical Data
2.4 Technical data Power Specifications Rated output voltage AC 220 V 50 Hz Socket specification 2 x EU type F (grounded) IP44 Rated output power Max. 3,500 W Surge power Max. 7,000 W Overload protection Fuse (20 A) Battery capacity...
Page 13: Indicational Unload Times
2.5 Indicational unload times The theoretical unload time of the PST.2500/3 can be calculated for each connected device as follows: Battery capacity (Wh) / Power consumption (W) However, there are many factors that can cause the actual unload times to deviate from the theoretical unload times.
Page 14: Symbols
No heavy pressure Station or Charger Do not disassemble or modify the Power Station Do not disassemble or or Charger yourself. Repairs need to be done by modify EUROBOOR professionals Charge only indoors Please charge the Power Station only indoors...
Page 15 It is strictly prohibited to use other battery packs Do not use other battery made by other manufacturers to power packs EUROBOOR power station! It is strictly prohibited to use other chargers to charge our battery packs! It is also strictly Do not charge or charge...
Page 16: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Page 17: Prior To Use
The machine electronics have been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating label. EUROBOOR PST.2500/3 is designed in class II (double isolated). Earth grounding is not required. The charger is designed in class I. Earth grounding is required.
Page 18: Using The Power Station
4. Using the Power Station 4.1 Turning on the Power Station In order to access the power stored in the Power Station, it needs to be switched on. Please follow all steps below to turn the Power Station on safely.
Page 19: Turning Off The Power Station
4.2 Turning off the Power Station When you are finished working with the Power Station, it can be turned off completely. For turning off the Power Station safely, follow steps below. 1. Wait until the connected Power Tool has come to a complete stop.
Page 20: Maintenance
5. Maintenance Your EUROBOOR Power Station has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning. CAUTION: To reduce the risk of injury, turn off the Power Station before adjusting or changing set- ups or when making repairs.
Page 21 EUROBOOR recommends to do this once every 6 months. WARNING: Storing the Power Station for a longer period of time with little or no charge inside...
Page 22: Troubleshooting
The charger light is not on Charger not connected well to the Power Station Charger internal wires are broken If you are having a problem, that cannot be solved by using the table above, please refer to your EUROBOOR distributor.
Page 23: Warranty
Date of purchase: Service To maximise the lifetime of your EUROBOOR Power Station always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of EUROBOOR products in your country.
Page 24: Certifications
8. Certifications 8.1 CE declaration of conformity EUROBOOR BV declares that the following appliance complies with the appropriate basic safety and health requirements of the EC guidelines based on its design and type, as brought into circulation by EUROBOOR BV.
