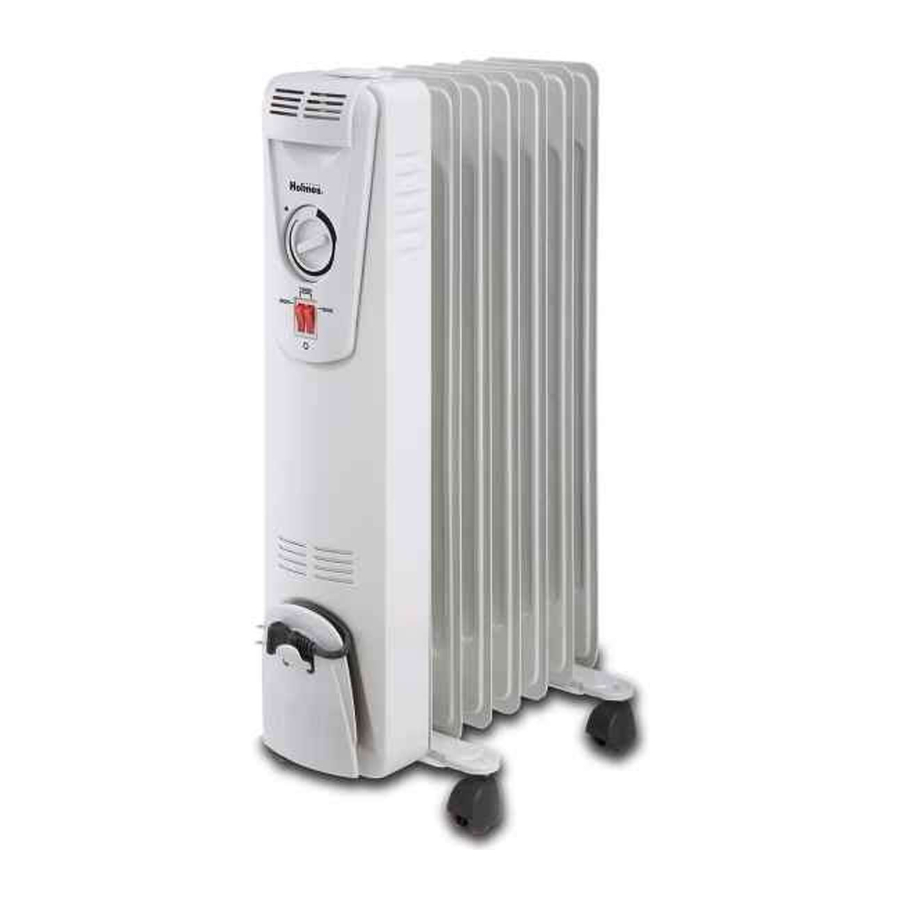

Holmes HOH3000 - Electric Heater Manual

TECHNICAL SPECIFICATIONS

• Amps: 12.5
• Wattage: 1500W (+5% –10%)
• Working voltage: 120V AC/60Hz

ASSEMBLY INSTRUCTIONS

1. Carefully remove your heater from the box. Please save the carton for off-season storage.
2. Turn unit upside down.
3. If necessary snap wheels into wheel base.
4. Wrap mounting bracket with wheels attached around the heater component between the first two fins or the last two fins. Mounting bracket holes should face the outside of the unit.
5. Secure the mounting bracket with screw on wing nut.
6. Repeat process for other set of wheels.

PARTS AND FEATURES

Figure 1

1. Wheel base
2. Mounting Bracket
3. First Two Fins
4. Wing Nut

CONTROL PANEL

Figure 2

1. Thermostat
2. Heat Setting
3. Power Light

OPERATING INSTRUCTIONS

1. Place the heater on a firm, level surface.
2. Set the Thermostat Knob to the Off position. Plug the heater into a standard outlet.
   NOTE: Avoid overloading your circuit by not using other high wattage appliances in the same outlet. At 1500 watts, this unit draws 12.5 Amps.
3. Turn the Thermostat Knob clockwise to the highest setting.
4. Flip the 600W switch for the low heat setting, the 900W switch for the medium heat setting, and both switches for the high heat setting.

NOTE: When the heater is in use, it is normal for the heater to cycle ON and OFF; this is to maintain your desired temperature.

Setting the Thermostat

1. Set the Thermostat control all the way to MAX.
2. When the desired temperature/comfort level is reached, turn the thermostat control counterclockwise to a lower position or until the heater stops operating.
3. The control will now automatically maintain the pre-set temperature level by turning the heater ON and OFF.

Frost Protect

If you plug in the heater, it will start working at the lowest temperature setting. (When thermostat control is in the lowest temperature position, the temperature will be maintained at 40 degrees F, thus the heater will not turn on unless the room temperature is lower than 40 degrees F. If the room temperature is lower than 40 degrees F, the heater will automatically start working and will keep turning on and off all the time, maintaining its ambient temperature.
NOTE: Unit must be unplugged for it to be fully off.

Tip Over Protection

When the unit is accidentally knocked over, or tilts on one side at more than a 45° angle, it will instantly shut off.
To reset, simply place the heater in an upright position.

Cord Storage

For easy storage, wrap cord around designated position at the front of the unit.

CLEANING / MAINTENANCE

During season care:

1. Always unplug the heater and allow to cool before cleaning.
2. Clean the unit with a soft damp cloth. Please be very cautious near the metal fins.
3. NEVER use abrasive of flammable solvents to clean the unit.
4. After cleaning, be sure to completely dry the unit with a cloth or towel.

After season care:

1. Store heater in a cool, dry location.
2. It is recommended that you store this unit in its original carton.

TROUBLE SHOOTING

If your unit fails to operate:

• UNPLUG the unit.
• Make sure correct wattage is selected.
• Make sure the electrical outlet or circuit breaker is working.
• The thermostat temperature may be set too low.

Adjust the thermostat until the heater restarts.

General Information:

Environmental Factors - There are a number of factors that will affect your desired comfort level. These factors can include insulation, open or drafty doors and windows, and outside temperature. Please check and take action if any of these potential problems are affecting your heaters ability to adequately warm your room.
Supplemental Heat - Portable electric heaters are intended for supplemental heating of rooms to heat the room you are in and turn down the central heat thermostat. They are not intended to replace central heating systems.

Do NOT attempt to repair or adjust any electrical or mechanical functions on this heater. Doing so will void warranty. The inside of the heater contains no user serviceable parts.

If you have any questions regarding your product or would like to learn more about other Holmes^® products, please contact our Consumer Service Department at 1-800-546-5637 or visit our website at www.holmesproducts.com.

© 2012 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved. Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton, Florida 33431.
