Summary of Contents for Atlas LED TSD-PA20VG

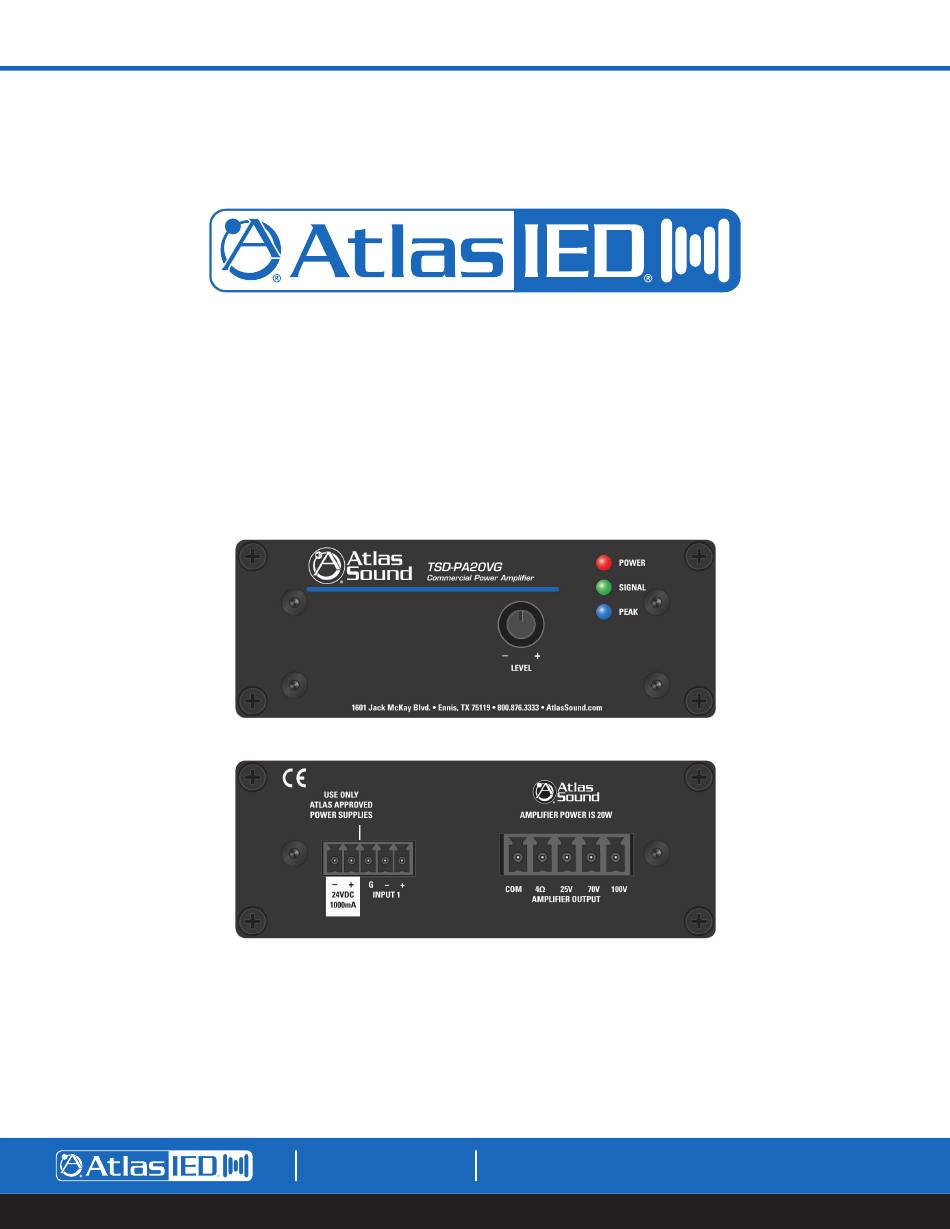

- Page 1 TSD-PA20VG 1x20W Global Commercial Amplifier 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Table Of Contents
TSD-PA20VG Owner’s Manual Table of Contents Introduction ..........................................3 Key Features ........................................... 3 Applications ..........................................3 Installation ..........................................3 Front Panel Description ......................................4 Rear Panel Description ......................................5 Cable Management ........................................ 6 Knob and Security Cover ......................................6 Mounting ..........................................7 Optional Mounting Accessories ..................................... -
Page 3: Introduction
Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper-resistant cover (included). The TSD-PA20VG is part of a full line of AtlasIED Time Saving Devices. These compact (1.5" x 4" x 5.2") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way. -

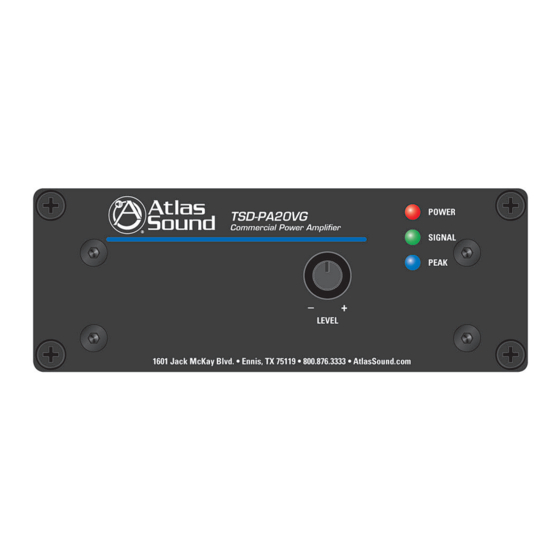

Page 4: Front Panel Description
TSD-PA20VG Owner’s Manual Front Panel 1. Input Level Control Determines the output level at the loudspeakers on the PA20VG. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. Note: The Input Level Control knob can be removed and replaced with a supplied security cover to prevent unauthorized adjustment. -
Page 5: Rear Panel Description
TSD-PA20VG Owner’s Manual Rear Panel TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately). Because of the TSDs low power consumption, a single external power supply may power more than one TSD. -
Page 6: Cable Management
TSD-PA20VG Owner’s Manual Cable Management Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. 1. Knob Installation Turn the potentiometer shaft fully counter-clockwise. -
Page 7: Mounting
TSD-PA20VG Owner’s Manual Mounting Listed below are the ways to mount the TSD and the optional accessories that can be purchased. 1. Velcro™ Each unit includes two 2" x 2" pieces of industrial-grade Velcro™ with adhesive backing to adhere to any flat surface. Clean all surfaces before applying the adhesive side of the Velcro™. -
Page 8: Optional Mounting Accessories
TSD-PA20VG Owner’s Manual Optional Mounting Accessories 1. TSD-RMK 19" Width Rack Mount Kit For 19" rack mounting, AtlasIED offers an optional rack mount kit, the TSD-RMK. This rack mount kit can support up to four TSD units. The kit includes three blank panels designed to fill any unused slots. - Page 9 TSD-PA20VG Owner’s Manual 3. TSD-RRMK Rear Rack Mounting Kit For complete flexibility in mounting a TSD or TSD external power supplies the optional TSD-RRMK is available. The TSD-RRMK can support mounting of either two larger TSDs with external power supplies or up to 4 TSD models. Note: Only use the included M3 x 4mm screws as other screws may be too long and will cause internal damage to the TSD.
-
Page 10: Specifications
TSD-PA20VG Owner’s Manual System Type 1 x 20W Global Commercial Amplifier Inputs Input Type Balanced Line, Qty 1 Connection Removable 3 Position Captive Screw 3.5mm Spacing Impedance 10KΩ Balanced, 5KΩ Unbalanced Line Input Level 500mV (-6dBV) Balanced Outputs Output Type... - Page 11 TSD-PA20VG Owner’s Manual Optional Accessories TSD 24VDC Power Supply TSD-RMK 1 RU 19" Width Rack Mount Panel (Supports 4 TSD Units) TSD-RMKHR 1 RU Half Rack Width Panel (Supports 2 TSD Units) TSD-RRMK Rear Rack Mounting Kit Safety & Certifications...
-
Page 12: Block Diagram
TSD-PA20VG Owner’s Manual Block Diagram INPUT SIGNAL PEAK LEVEL AMP 20W 100V 4 ohm DC24V IN DC OUT POWER LED 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 12 –... -
Page 13: Dimensional Drawings
TSD-PA20VG Owner’s Manual Dimensional Drawings 4" (101mm) POWER TSD-PA20VG Commercial Power Amplifier SIGNAL 1.5" PEAK (39mm) – LEVEL 1601 Jack McKay Blvd. • Ennis, TX 75119 • 800.876.3333 • AtlasSound.com USE ONLY ATLAS APPROVED POWER SUPPLIES AMPLIFIER POWER IS 20W –... - Page 14 TSD-PA20VG Owner’s Manual Notes: 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 14 –...
- Page 15 TSD-PA20VG Owner’s Manual Notes: 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 15 –...
-
Page 16: Warranty
This warranty gives you specific legal rights and you may have other rights which vary from state to state. Service Should your TSD-PA20VG require service, please contact the AtlasIED warranty department through the online warranty claim process. Online Warranty Claim Processes Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement where the type of return Warranty or Stock return can be...
