Item # 9180
Model # KLD4005SA, KLD4005SB
CAUTION
Do not operate this re pit if
the Fire Pan and Lava Rocks are wet!
Keep and check the manual before assembling the appliances
OZ CYLINDER FIRE PIT
If you smell gas:
1. Shut off gas to the appliance.
3. If odor continues, keep
away from the appliance and
immediately call your gas
Do not store or use gasoline
liquids in the vicinity of this or
any other appliance.
An LP-cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
For outdoor use only.
Improper installation,
adjustment, alteration, service
or maintenance can cause injury
or property damage. Read the
owner's manual thoroughly
before installing or servicing this
result causing property damage,
personal injury or loss of life.
DANGER
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
DANGER
WARNING
WARNING
WARNING
CARBON MONOXIDE HAZARD
Advertisement
Table of Contents
Summary of Contents for Sierra KLD4005SA

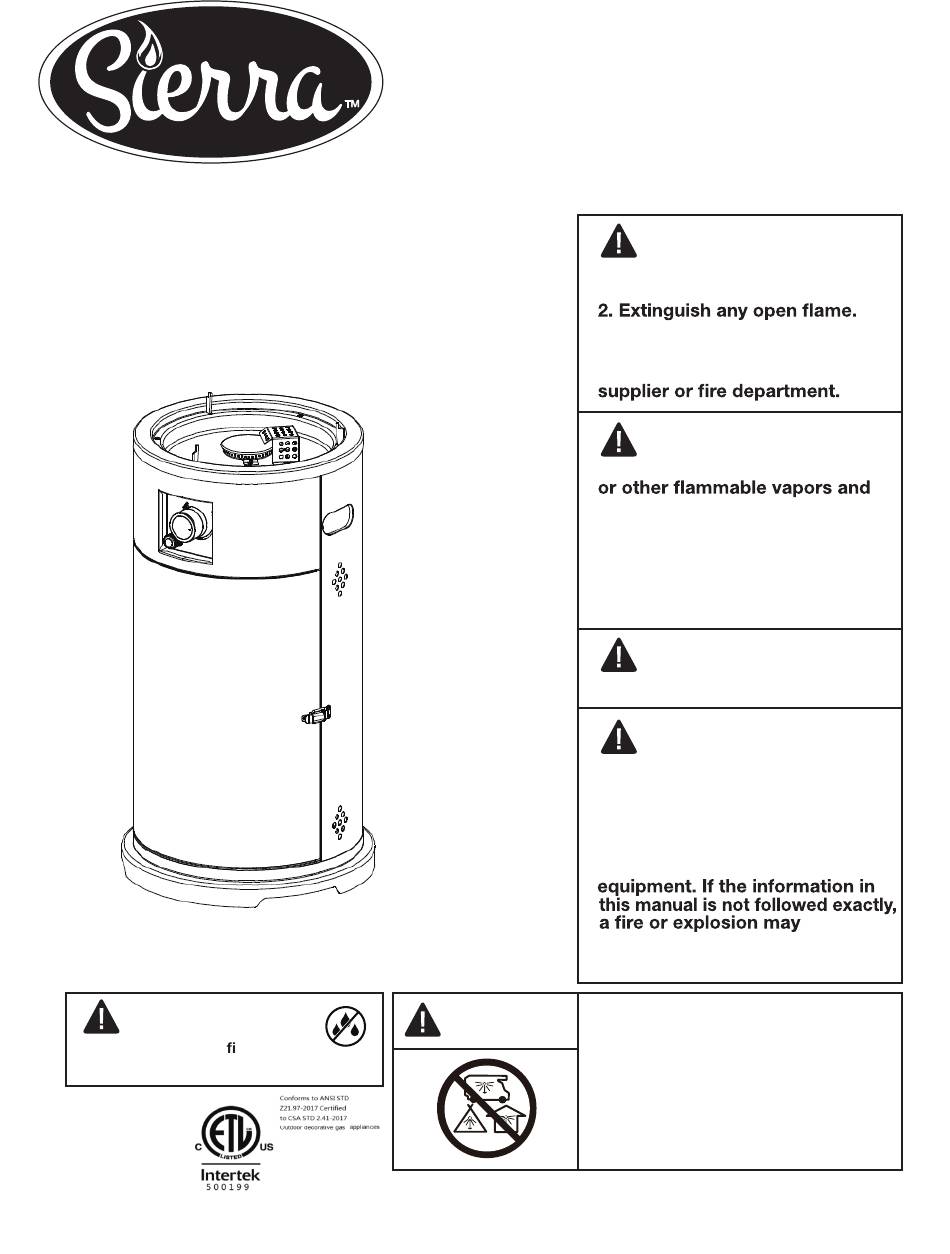

- Page 1 OZ CYLINDER FIRE PIT Item # 9180 Model # KLD4005SA, KLD4005SB DANGER If you smell gas: 1. Shut off gas to the appliance. 3. If odor continues, keep away from the appliance and immediately call your gas WARNING Do not store or use gasoline liquids in the vicinity of this or any other appliance.
-
Page 2: Safety Information
SAFETY INFORMATION The equipment has been tested to comply with ans Z 21.97-2010. CGA Cr 97-003 external gas furnace. There are no local gas standards in the national gas regulations. burning Z223. . 1 This manual contains important information about the fire pit assembly, operation and maintenance E. Regulations commonly safety information is provided on the previous pages and is included in the entire contingent owned equipment manual. - Page 3 SAFETY INFORMATION WARNING DANGER • EXPLOSION - FIRE HAZARD We cannot foresee every use which may be made of • • Never store propane near high heat, open flames, our fire pit. pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
-
Page 4: Package And Hardware Contents
PACKAGE AND HARDWARE CONTENTS Before beginning assembly of product, make sure all arts are present, and check the manual carefully. The product is pre-assembled before leaving the factory . PART DESCRIPTION QUANTITY Glass Ignition needle Thermoucouple Gas collecting hood Burner Body corrugated pipe Connector... - Page 5 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install this appliance. If you have any questions regarding the product, please call customer service 1-877-387-3639, 8 a.m. – 4 p.m., EST, Monday – Friday. This appliance has been tested to and complies with the ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances CGA CR 97-003 Outdoor Gas Fireplaces.
- Page 6 ASSEMBLY INSTRUCTIONS ignition screen Step 2A. Step 1. Leave adequate space around Put the lava rocks into the re pan. the Ignition Screen for ventilation. (The weight of lava rocks is 1.2kg) Step 2B. DO NOT block or cover the Ignition Screen with the lava rocks.
- Page 7 ASSEMBLY INSTRUCTIONS Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of reach of children. A disconnected cylinder must have all dust caps tightly installed and must no be stored in a building, garage or any other enclosed area.
-
Page 8: Step 7 Perform Leak Test
ASSEMBLY INSTRUCTIONS Step 7 Perform Leak Test WARNING Perform all tests outdoors. NEVER leak test when smoking. Hose/Regulator Connection have been leak tested and do not leak. ((I) Make 2-3 oz. of leak test solution (one part liquid dishwashing detergent and three parts water). (III) Apply several drops of solution where hose attaches to regulator. -
Page 9: Before Operating
OPERATION INSTRUCTIONS Keep children away during assembly, as this item contains small parts which can be swallowed by children. Do not use indoors or inside any enclosure. Retain the assembly instructions for future reference. Installer – Please leave these instructions with the owner. For a safe heating experience, perform these checks before each use. -
Page 10: Before Lighting
OPERATION INSTRUCTIONS Caution: Do not attempt to operate until you have read and understand all Safety Information in this manual and all assembly is complete and leak checks have been performed. Before Turning Gas Supply On: enclosed area. 3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no leaks. 4. -
Page 11: Care And Maintenance
CARE & MAINTENANCE To enjoy years of performance from your re pit, make sure you perform the following maintenance activities WARNING on a regular basis: FOR YOUR SAFETY Keep exterior surfaces clean. minutes after use. Fire pit is hot to the touch. or corrosive cleaning agents. - Page 12 STORAGE CAUTION Do not operate this re pit if the Fire Pan and Lava Rocks are wet! 2. Cover re pit with protective cover to prevent water from accumulating in the re pan and to protect exterior surfaces. Store re pit in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).
-
Page 13: Limited Warranty
1901 Aut. Transcanadienne Dorval, QC H9P 1J1, Canada www.jaytrends.com Customer Service: 1-877-387-3639 in USA & Canada custserv@jaytrends.com © 2023 Sierra Products, Inc. All rights reserved. Distributed by 4348125 Canada Inc. dba Jay Trends Sales, Dorval, Canada H9P 1J1. 1-877-387-3639 Page 13...
