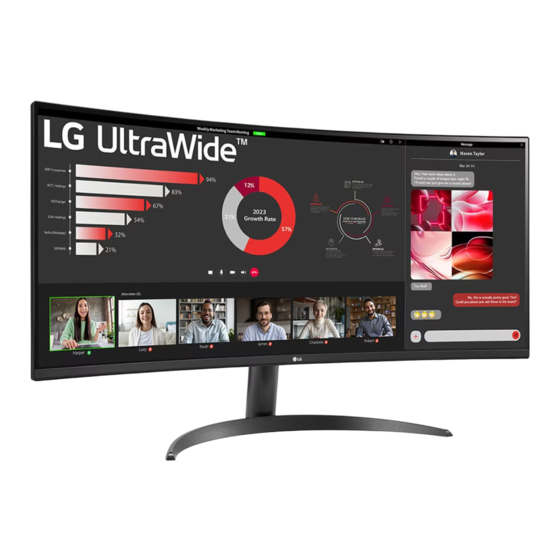

LG 34WR50QC Owner's Manual

LG 34WR50QC Owner's Manual

Led lcd computer monitor
Hide thumbs Also See for 34WR50QC:
Table of Contents

Advertisement

Quick Links

Download this manual
* Disclaimer : LG LED Monitor applies LCD screen with LED
backlights.
This product is a computer monitor and not for television
purpose.
Please read this manual carefully before operating your set
and retain it for future reference.
34WR50QC
OWNER'S MANUAL
LED LCD COMPUTER
MONITOR
(LED Computer Monitor*)
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG 34WR50QC

Summary of Contents for LG 34WR50QC

  • Page 1 OWNER’S MANUAL LED LCD COMPUTER MONITOR (LED Computer Monitor*) * Disclaimer : LG LED Monitor applies LCD screen with LED backlights. This product is a computer monitor and not for television purpose. Please read this manual carefully before operating your set and retain it for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS LICENSE ........3 USING THE MONITOR ....10 - Connecting to a PC...........10 OPEN SOURCE SOFTWARE HDMI Connection NOTICE INFORMATION ....4 DisplayPort Connection - Connecting Peripherals...........11 ASSEMBLING AND PREPARING 4 Connecting Headphones - Supported Drivers and Software ......4 USER SETTINGS .......

  • Page 3: License

    LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 4: Open Source Software Notice Information

    • It is recommended that use the supplied components. • If you use generic cables not certified by LG, the screen may not display or there may be image noises. • Illustrations in this document represent typical procedures, so they may look different from the actual product.

  • Page 5: Product And Button Description

    Product and Button Description How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/down with your finger. Basic Functions Press the joystick button once with Power on your finger to turn on the monitor.

  • Page 6: Moving And Lifting The Monitor

    Moving and Lifting the Monitor Installing on a Table • Lift the monitor and place it on the table in an upright position. Place the monitor When moving or lifting the monitor, follow these instructions to prevent the monitor at least 100 mm away from the wall to ensure sufficient ventilation. from being scratched or damaged and to ensure safe transportation, regardless of its shape or size.

  • Page 7: Adjusting The Angle

    Adjusting the Angle Using the Kensington Lock The connector for the Kensington security system is located at the bottom of the Place the monitor mounted on the stand base in an upright position. monitor. Adjust the angle of the screen. For more information on installation and usage, refer to the Kensington lock owner’s The angle of the screen can be adjusted forward or backward from -5°...

  • Page 8: Installing The Wall Mount Plate

    A non-VESA standard screw may damage the product and cause the monitor • For more information on installation, refer to the wall mount plate’s installation to fall. LG Electronics is not liable for any accidents relating to the use of non- guide. standard screws.
  • Page 9 • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact Max. 8 mm the local dealer or qualified personnel.

  • Page 10: Using The Monitor

    USING THE MONITOR Connecting to a PC • This monitor supports the *Plug and Play feature. • Illustrations in this manual may differ from the actual product. * Plug and Play: A feature that allows you to add a device to your computer without Press the joystick button, go to Settings →...

  • Page 11: Connecting Peripherals

    Connecting Peripherals Connecting Headphones Connect peripherals to the monitor via the headphones port. NOTE • Peripheral devices are sold separately. • If you use angled earphones, it may cause a problem with connecting another external device to the monitor. Therefore, it is recommended to use straight earphones. Angled Straight (Recommend)

  • Page 12: User Settings

    USER SETTINGS Button Menu Status Description Main menu disabled Enables the main menu. Exits the main menu. NOTE (Holding down the button to turn off the monitor. You can Main menu enabled • Your monitor’s OSD (On Screen Display) may differ turn off the monitor this way at any time, including when the slightly from that shown in this manual.

  • Page 13: Main Menu Features

    Main Menu Features Main Menu Description Input Sets input mode. Power Off Power Off Turns off the monitor. Settings Configures the screen settings. Exit Input Settings Picture Mode Sets the picture mode. Exit Exits the main menu. Picture Mode Menu Settings To view the OSD menu, press the joystick button on the right back of the monitor and then enter the Settings.
  • Page 14 Quick Settings Settings > Quick Settings Description Brightness Adjusts the brightness of the screen. Contrast Adjusts the contrast of the screen. Adjusts the volume. NOTE Volume • You can adjust Mute / Unmute by moving the joystick button to in the Volume menu. Set your own color temperature.

  • Page 15: Input

    Input Settings > Input Description Input List Selects the input mode. When automatic input switch is set to On, display will automatically switch to new input when connected. Auto Input Switch Enables Auto Input Switch. Disables Auto Input Switch. Adjusts the aspect ratio of the screen. Full Wide Displays the video in widescreen, regardless of the video signal input.
  • Page 16 [PBP] Settings > Input Description Displays the screens of two input modes on one monitor. Main Input List Please refer to the table below for possible PBP combinations. Sub Input List Sub Screen (Right) Input List PBP Connection DisplayPort Main Screen (Left) DisplayPort Adjusts the aspect ratio of the screen.

  • Page 17: Picture

    Picture NOTE • The Picture Mode that can be set depends on the Input signal. [Picture Mode on SDR (Non-HDR) signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Heightens contrast, brightness and sharpness to display vivid images. HDR Effect Optimizes the screen for high dynamic range.
  • Page 18 [Picture Mode on HDR signal] Settings > Picture Description Custom Allows the user to adjust each element. Vivid Optimized the screen for HDR vivid colors. Cinema Optimized the screen for HDR video. This mode is optimized for FPS games.It is suitable for very dark FPS games. This mode is optimized for RTS Game.
  • Page 19 Settings > Picture Description Brightness Adjusts the brightness of the screen. Contrast Adjusts the contrast of the screen. Sharpness Adjusts the sharpness of the screen. High Optimizes the screen for crystal clear images. Best for high-definition video or games. Optimizes the screen for comfortable viewing, with images at the middle level between the low Middle and high modes.
  • Page 20 Settings > Picture Description Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Fast. For a fast-moving picture, it is recommended that you use Faster. Once Faster Mode is selected, Motion Blur may occur depending on the content.
  • Page 21 Settings > Picture Description Mode 1, The higher the gamma value, the darker the image becomes. Likewise, the lower the gamma Mode 2, value, the lighter the image becomes. Gamma Mode 3 Mode 4 If you do not need to adjust the gamma settings, select Mode 4. Set your own color temperature.

  • Page 22: General

    General Settings > General Description Language Sets the menu screen to the desired language. Conserve energy by using luminance compensation algorithm. High Saves energy using the high-efficiency SMART ENERGY SAVING feature. Saves energy using the low-efficiency SMART ENERGY SAVING feature. SMART ENERGY SAVING Disables the feature.
  • Page 23 Settings > General Description This feature lets you set the sound generated from Buzzer when your monitor powers on. Buzzer Enables your monitor's Buzzer. Disables your monitor's Buzzer. This feature disables the configuration and adjustment of menus. Enables OSD Lock. Disables OSD Lock.

  • Page 24: Troubleshooting

    Have you installed the display driver? • Be sure to install the display driver from our web site: http://www.lg.com. • Make sure to check if the graphics card supports Plug and Play function. Some features are disabled.
  • Page 25 The screen retains an image. Does image sticking occur even when the • Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention of the image. monitor is turned off? • To extend the lifetime of the monitor, use a screensaver. Screen display is unstable and shaky.
  • Page 26 The display color is abnormal. Does the display appear discolored • Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel > Display > Menu > Color Quality. (The settings (16 colors)? may differ depending on the operating system (OS) you use.) Does the display color appear unstable or •...

  • Page 27: Product Specification

    PRODUCT SPECIFICATION LCD Screen Color Depth 8-bit / 10-bit color is supported. Resolution Max Resolution 3440 x 1440 @ 100 Hz (HDMI) 3440 x 1440 @ 100 Hz (DP) Recommended Resolution 3440 x 1440 @ 100 Hz (HDMI) 3440 x 1440 @ 100 Hz (DP) Power Sources Power Rating 19 V...
  • Page 28 Weight (Without Packaging) With Stand 5.9 kg Without Stand 4.9 kg Specifications are subject to change without notice. The symbol means alternating current, and the symbol means direct current. The Power Consumption level can be different by operating condition and monitor setting. * The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum resolution).

  • Page 29: Factory Support Mode (Preset Mode, Pc)

    Factory Support Mode (Preset Mode, PC) (DisplayPort) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 800 x 600 37.879 1024 x 768 48.363 1920 x 1080 67.5 1720 x 1440 88.739 59.92 For PBP only 3440 x 1440 88.84 59.99...

  • Page 30: Hdmi Timing (Video)

    (HDMI) Preset Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks 640 x 480 31.469 800 x 600 37.879 1024 x 768 48.363 1920 x 1080 67.5 1720 x 1440 88.739 59.92 For PBP only 3440 x 1440 43.76 29.95 3440 x 1440 73.63...
  • Page 31 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
