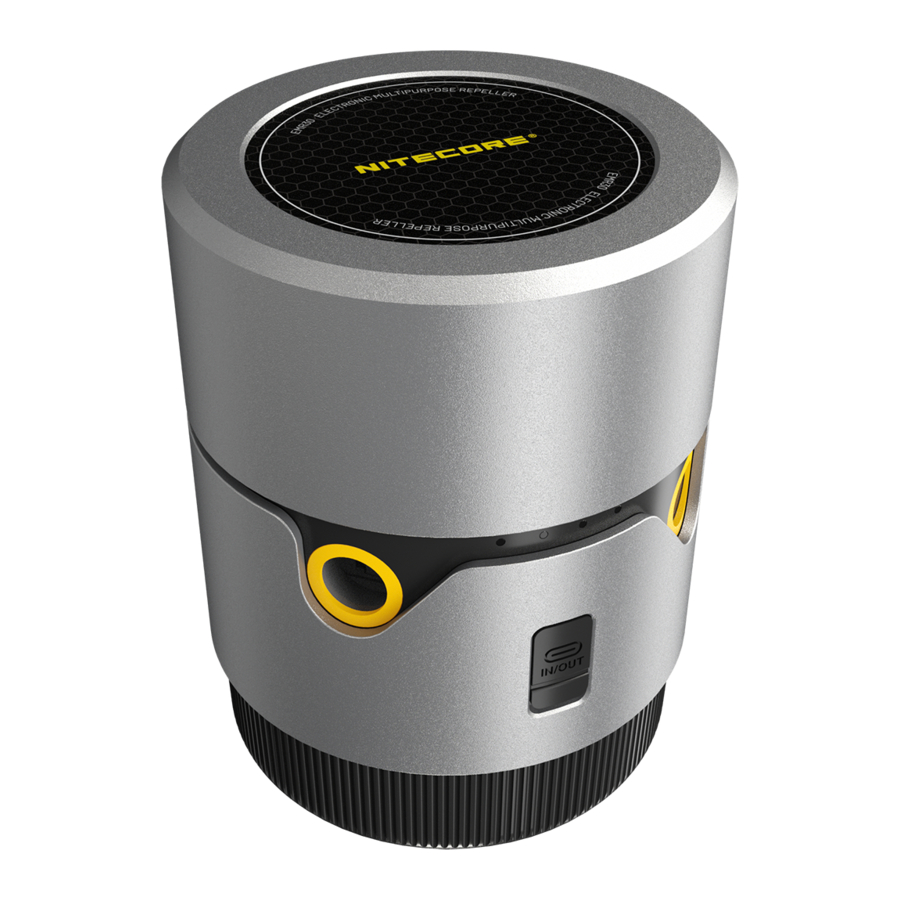

Nitecore EMR30 - Portable Electronic Multipurpose Repeller Manual

Specifications

Product Introduction

The EMR30 is specially designed for camping, fishing, backyard activities and more.

• Mosquito Repelling Function
• Ultrasonic Function
• 10,400mAh Power Supply

Read all instructions before use.
This product is intended for adult use only. This product is not a toy.

Charging

Connecting to the External Power
Use the USB cable to connect an external power supply (e.g. a USB adapter, a power bank or other USB charging device) to the USB charging port to begin the charging process. (Input: 5V⎓2.4A / 9V⎓2A)

Note: The mosquito repelling function and ultrasonic function can be activated during the charging process.

Operating Instructions

Mosquito Repelling Function

• On: When the mosquito repelling function is off, long press the Mosquito Repelling Button to turn it on, after which the blue indicator beneath the Mosquito Repelling Button will remain steadily turned on to indicate the access to Outdoor Mode (Default Startup Mode).
• Off: When the mosquito repelling function is on, long press the Mosquito Repelling Button to turn it off, and the corresponding indicator will be off.
• Mode Switching: When the mosquito repelling function is on, short press the Mosquito Repelling Button to switch between Indoor Mode and Outdoor Mode.
• Outdoor Mode: In this mode, the blue indicator beneath the Mosquito Repelling Button will be steadily turned on while both Area A and B will be heated simultaneously with a max runtime of 5 hours.
• Indoor Mode: In this mode, the green indicator will be steadily turned on while the heating area will automatically switch to Area B after heating for 6 hours in Area A, and the max runtime is 12 hours.

Ultrasonic Function

• On: When the ultrasonic function is off, long press the Ultrasonic Button to turn it on, after which the blue indicator beneath the Ultrasonic Button will remain steadily turned on.
• Off: When the ultrasonic function is on, long press the Ultrasonic Button to turn it off, and the corresponding indicator will be off.

Note: Humans can barely hear ultrasound (above 20,000Hz).

Charging Cable Storage

The top cover of the EMR30 is available for storing the charging cable when it is left unused.

Magnetic Design

With the magnetic design, the top cover can be attached to the top or bottom of the EMR30 to prevent loss.

Hibernation Status

The EMR30 will enter hibernation if the USB-C port is not in use while the mosquito repelling function and ultrasonic function are off. In this case, short press either button to show the remaining battery power.

Power Level Display

• 4 power indicators can indicate the remaining battery power. The EMR30 needs to get recharged when only 1 indicator flashes to indicate low power.
  • During the charging process, the power indicators will flash to inform the user. When the product is fully charged, 4 power indicators will become steadily turned on.

Using the EMR30

1. When the product is off, insert 2 repellent mats into the Repellent Mat Placement Area.
2. Long press the Mosquito Repelling Button to activate the mosquito repelling function.
3. The protection zone will be created after 10 minutes.
4. After use, long press the Mosquito Repelling Button to turn off the mosquito repelling function. Please store the product after cooling completely.

Note: NITECORE Mosquito Repellent Mat Size: 34mm x 48mm / 1.34" x 1.89" (up to 6 hours each)

Mosquito Repellent Mat Replacement

Make sure the EMR30 is off and cooled. Insert a new repellent mat while pushing out the used one.

EMR30 Placement

• Place the EMR30 upwind of the mosquito repellent area if it is windy.
• DO NOT cover the EMR30 during the using process.
• It is recommended to use multiple EMR30 together to create a larger protection zone.

Charging the External Device

USB Output: Available with the USB output, the EMR30 can be used as a power supply to charge external devices.

Connecting to the External Device: Use the USB cable to connect an external USB device to the USB charging port to begin the charging process.

Note: During the discharging process, the USB output will be automatically off to protect the battery if the battery voltage is low.

Storage and Transportation

• Store the product in ventilated and dry places at room temperature.
• Charge the product every 3 months if it is not used for a long period of time.

Warnings

1. The product is designed to be used by adults. Keep the product out of reach of children.
2. Children under 16 years old must be under adult supervision when using this product to prevent scalds and accidents.
3. DO NOT leave the product unattended when it is in use.
   Stop using the product at any sign of malfunction.
4. DO NOT place the product in water.
5. DO NOT put your fingers, metals or foreign matters into the product to avoid accidents or damage.
6. DO NOT use the product in a confined space.
7. Stop using the product and dispose of it immediately if there is any leakage, odor, or deformation in the battery.
8. DO NOT expose the product to temperatures above 60°C (140℉) for a long time.
9. DO NOT disassemble or modify the product without authorization, as this will cause the warranty to be nullified. Please check the Warranty Service for details.
10. Dispose of the device/batteries in accordance with applicable local laws and regulations.

Warranty Service

All NITECORE^® products are warranted for quality. Any DOA / defective product can be exchanged for a replacement through a local distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE^® products can be repaired free of charge within 12 months from the date of purchase. Beyond 12 months, the charge for accessories, replacement parts and delivery shall be at your own expenses.

The warranty will be nullified if

1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. the product(s) is/are damaged due to improper use.

For the latest information on NITECORE^® products and services, please contact a local NITECORE^® distributor or send an email to service@nitecore.com
※ The trademarks and product images specified herein this user manual are for reference purposes only. The copyright belongs to their lawful holders.
※ All images, texts and statements specified herein this user manual are for reference purposes only. Should any discrepancy occur between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd. reserves the rights to interpret and amend the content of this document at any time without prior notice.

SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address:
Unit 6355, 5/F, No.1021
Gaopu Road, Tianhe District,
Guangzhou, 510653, Guangdong, China

Please find us on facebook: NITECORE Outdoor Electronics
Thanks for purchasing NITECORE!
