Summary of Contents for SMG Rapid-Edge 10H

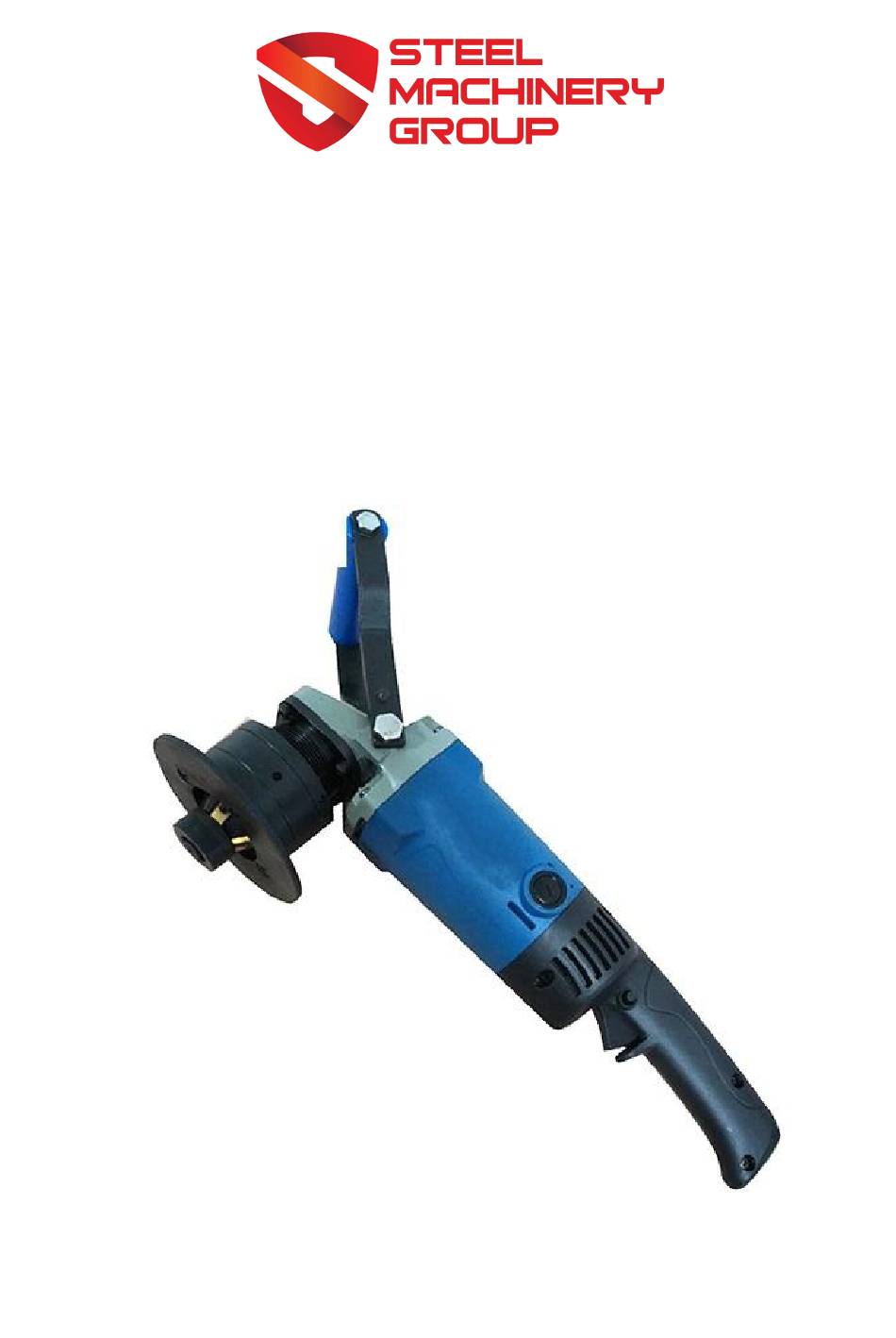

- Page 1 SMG Rapid-Edge 10H Portable Plate Beveling Machine Operator’s Manual...
-
Page 2: Part 1: Intended Use
The machine may only be used for work and materials described in the section “Intended use”. Do not use the machine to work on materials containing asbestos. 1. Technical Data Technical Data Rapid-Edge 10H Bevel Width [mm] 1-10 Radius [mm]... -
Page 3: Safety Information
2. Safety Information Before using the machine, the operating manual and safety instructions must have been read and understood in their entirety. The instructions contained therein must be strictly followed. Electrocution hazard! ● Always disconnect the machine from the power supply before servicing. - Page 4 3.1 Check Cutting Tools ● Blunt tools can cause damage and can overload the machine ● Inspect the cutting tools regularly for signs of wear ● Make sure the cutting edges of the inserts are sharp as this will improve performance and protect the machine from damage ●...
- Page 5 1. Press the switch (2) to start the machine 2. Adjust the adjusting wheel (1) to ‘4’ Two-handed operation Always use two hands to hold and control the machine. To become acquainted with the machine, we recommend that you begin by machining a small bevel no more than 2mm in height and advance the machine slowly at first...
- Page 6 4. Step-by-step guide to milling with the Rapid-Edge 10H 1. Move the machine into contact with the workpiece only after the selected tool speed has been reached. 2. Guide the machine along the workpiece only after the spacer guide-bearing has made contact with the workpiece.
- Page 7 5. Step-by-step guide to milling with the Rapid-Edge 10H...
- Page 8 ● Make sure that the machine cannot be switched on again accidentally or by unauthorized persons. Removing the Rapid-Edge 10H Milling Heads ● Rotate the guide-plate unit (guide plate + mount) back as far as possible ● Position a spanner on the flats of the drive shaft ●...
- Page 9 7. Fitting New Indexable Cutting Inserts Procedure ● Switch off the machine by releasing the on/off switch. ● Pull out the power cable plug from the mains socket. ● Press and hold down the safety button on the top of the gearing housing. ●...
- Page 10 Failing to change the cutting inserts in time can result in damage to the machine The mounted inserts have to be close to the guiding bearing, which means small inserts have to be fixed in the top thread under the guiding bearing. Long and radius inserts has to be fixed in the middle positioned thread.
- Page 11 8. Speed adjustment Material Rapid-Edge 10H Speed setting Power-on Time Speed 4-6 Aluminum,copper,plastic 100% Approx.5500-7300rpm Material with a tensile Speed 3-5 Strength≤400N/mm2 Approx.4500-6500rpm Material with a tensile Speed 2-3 Strength＞400N/mm2 Approx.2400-5500rpm Chromium steels, stainless Speed 2-3 steels, fine-grained steels Approx.2400-5500rpm Information on adjusting the machine speed: 1.
