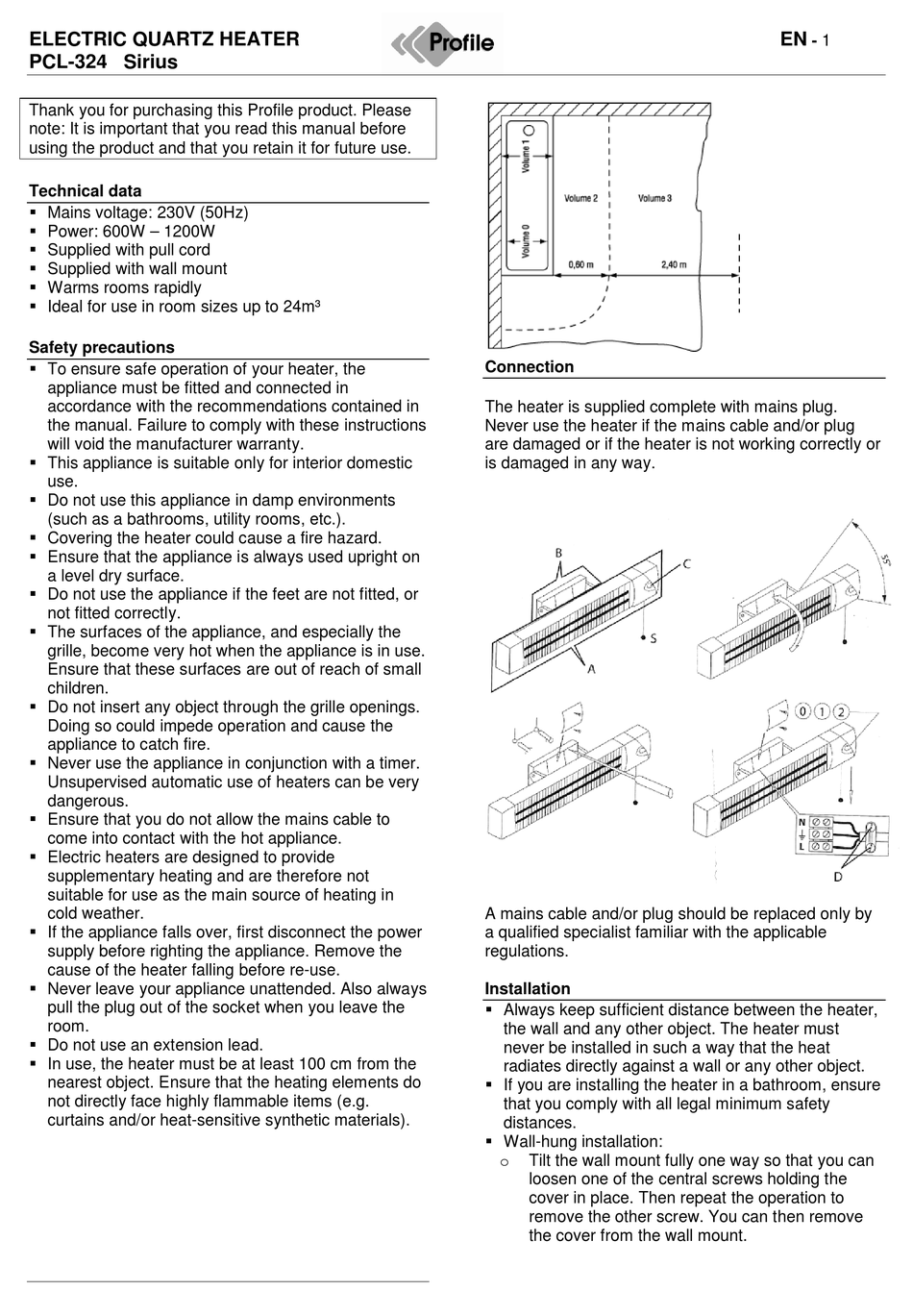

Profile PCL-324 Sirius Quick Start Manual

ELECTRIC QUARTZ HEATER
PCL-324 Sirius
Thank you for purchasing this Profile product. Please
note: It is important that you read this manual before
using the product and that you retain it for future use.

Technical data

 Mains voltage: 230V (50Hz)
 Power: 600W – 1200W
 Supplied with pull cord
 Supplied with wall mount
 Warms rooms rapidly
 Ideal for use in room sizes up to 24m³

Safety precautions

 To ensure safe operation of your heater, the
appliance must be fitted and connected in
accordance with the recommendations contained in
the manual. Failure to comply with these instructions
will void the manufacturer warranty.
 This appliance is suitable only for interior domestic
use.
 Do not use this appliance in damp environments
(such as a bathrooms, utility rooms, etc.).
 Covering the heater could cause a fire hazard.
 Ensure that the appliance is always used upright on
a level dry surface.
 Do not use the appliance if the feet are not fitted, or
not fitted correctly.
 The surfaces of the appliance, and especially the
grille, become very hot when the appliance is in use.
Ensure that these surfaces are out of reach of small
children.
 Do not insert any object through the grille openings.
Doing so could impede operation and cause the
appliance to catch fire.
 Never use the appliance in conjunction with a timer.
Unsupervised automatic use of heaters can be very
dangerous.
 Ensure that you do not allow the mains cable to
come into contact with the hot appliance.
 Electric heaters are designed to provide
supplementary heating and are therefore not
suitable for use as the main source of heating in
cold weather.
 If the appliance falls over, first disconnect the power
supply before righting the appliance. Remove the
cause of the heater falling before re-use.
 Never leave your appliance unattended. Also always
pull the plug out of the socket when you leave the
room.
 Do not use an extension lead.
 In use, the heater must be at least 100 cm from the
nearest object. Ensure that the heating elements do
not directly face highly flammable items (e.g.
curtains and/or heat-sensitive synthetic materials).

Connection

The heater is supplied complete with mains plug.
Never use the heater if the mains cable and/or plug
are damaged or if the heater is not working correctly or
is damaged in any way.
A mains cable and/or plug should be replaced only by
a qualified specialist familiar with the applicable
regulations.

Installation

 Always keep sufficient distance between the heater,
the wall and any other object. The heater must
never be installed in such a way that the heat
radiates directly against a wall or any other object.
 If you are installing the heater in a bathroom, ensure
that you comply with all legal minimum safety
distances.
 Wall-hung installation:
Tilt the wall mount fully one way so that you can
o
loosen one of the central screws holding the
cover in place. Then repeat the operation to
remove the other screw. You can then remove
the cover from the wall mount.
EN
- 1
