Max-Ability Pressalit Matrix R4828000/R2122000/RT622/T4679/LA1319/V8605 Installation Manual

All-in-one adjustable sink
Hide thumbs

Advertisement

Quick Links

Download this manual
Installation
Drawing
Pressalit Matrix
All-in-One
Adjustable Sink
With Ergonomic Long-Handled Faucet: SKU:R4828000/R2122000/RT622/T4679/LA1319/V8605
With Touchless Sensor Faucet: SKU:R4828000/R2122000/RT632/T4679/LA1319/V8605
Subject to change without further notice.
Pub Feb 2022 Page 1/22
Pressalit Care
Telephone:
Pressalitvej 1
Telefax:
DK 8680 Ry
E-mail:
Danmark
Web:
+45 87 88 87 88
+45 87 88 87 89
pressalit@pressalit.com
www.pressalitcare.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pressalit Matrix R4828000/R2122000/RT622/T4679/LA1319/V8605 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Max-Ability Pressalit Matrix R4828000/R2122000/RT622/T4679/LA1319/V8605

Summary of Contents for Max-Ability Pressalit Matrix R4828000/R2122000/RT622/T4679/LA1319/V8605

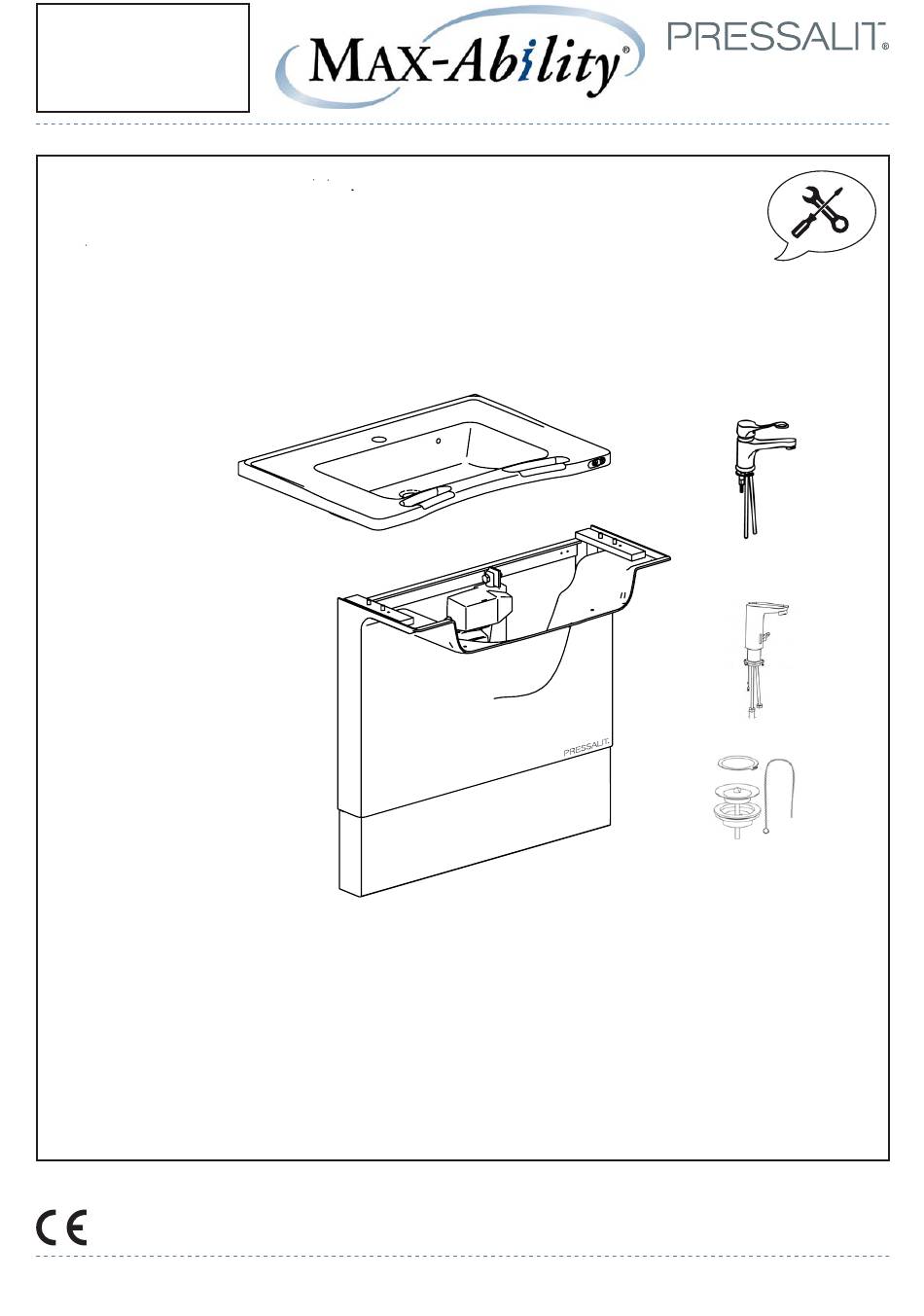

  • Page 1 Installation Drawing Pub Feb 2022 Page 1/22 Pressalit Matrix All-in-One Adjustable Sink With Ergonomic Long-Handled Faucet: SKU:R4828000/R2122000/RT622/T4679/LA1319/V8605 With Touchless Sensor Faucet: SKU:R4828000/R2122000/RT632/T4679/LA1319/V8605 Subject to change without further notice. Pressalit Care Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...

  • Page 2: Installation Drawing

    En la caja se incluye una guía visual de funcionamiento para personas con di cultades lectoras o cogniti- vas. También se puede descargar desde www.pressalit.com. La información del usuario no está disponible en braille. MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88...
  • Page 3 Contact your Pressalit agent, if assistance is needed when installing the product. Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
  • Page 4 Drywall water-resistant, re-enforced with steel plates inches: Drywall water-resistant inches: Concrete anchors provided at no additional charge. Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
  • Page 5 D. M6 x 10 E. M6 x 16 F. Ø8,4-16-1,6 T 4 6 3 1 LA8931 LA8933 Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 6 (3.94) (7.87) 280 (11) 100 (3.94) 140 (5.51) 40 (1.57) (22.64) (16.54) (14.76) Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 7 Installation Drawing www.max-ability.com Page 7/22 Pub Feb 2022 Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 8 D. M6 x 10 E. M6 x 16 B. M6 x 10 C. M8 x 20 F. Ø8,4-16-1 Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
  • Page 9 Installation Drawing www.max-ability.com Pub Feb 2022 Page 9/22 (See sink details on pages 16-17) Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web:...
  • Page 10 Page 10/22 Pub Feb 2022 LA8933 Flexible Feed ① ② ③ ④ Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 11 Spread out the compound ④ within 15 minutes, and allow it to harden for 24 hour Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 12 These depend on the installation and must be purchased separately. The f i ttings must be ¹⁄2” NSF61 approved. ³⁄8” Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
  • Page 13 LA8931 A. M4 x 12 D. M6 x 1 E. M6 x 1 B. M6 x 10 C. M8 x 20 F. Ø8,4-1 MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
  • Page 14 E. M6 x 1 B. M6 x 10 C. M8 x 20 F. Ø8,4-1 max 150 kg (330 lbs) max 167 kg (367 lbs) MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
  • Page 15 Sink Lifter Dimensions www.max-ability.com Page 15/22 Pub Feb 2022 (21.63) (36.63) (28.75) 7.88 Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
  • Page 16 Drain kit installation on page 18 R2122 7 8 0 ( 3 0 . 7 5 (21.63) (6.5) MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com...
  • Page 17 Surface stability / resistance to scratching Do not use abrasives on the surface Cleanability Smooth, non-absorbant surfaces R2122: CL 10 Protection against overflow R2123: CL 00 Durability Product is considered durable MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...

  • Page 18: Drain Kit

    Installation www.max-ability.com Drawing Page 18/22 Pub Feb 2022 Drain Kit SKU: LA1319 LA1319 MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
  • Page 19 RT632 Ergonomic Faucet (with long rotatable spout and ring-shaped operating lever) ASSEMBLY Faucet as delivered. Take out these connector parts from the US adapter kit. After assembly. MAX-Ability, Inc. 800.577.1555 info@max-ability.com...

  • Page 20: Final Result

    Mount between the faucet and the hose. Final result. MAX-Ability, Inc. 800.577.1555 info@max-ability.com...
  • Page 21 ASSEMBLY Remove these non-return valves and set aside. (They are not needed for US use.) Extract these two parts from the T4679 US Adapter kit: T4817 T4819 non-return valve - and screw them on as shown here: MAX-Ability, Inc.
  • Page 22 Close-up: Final result: MAX-Ability, Inc. 800.577.1555 info@max-ability.com...
