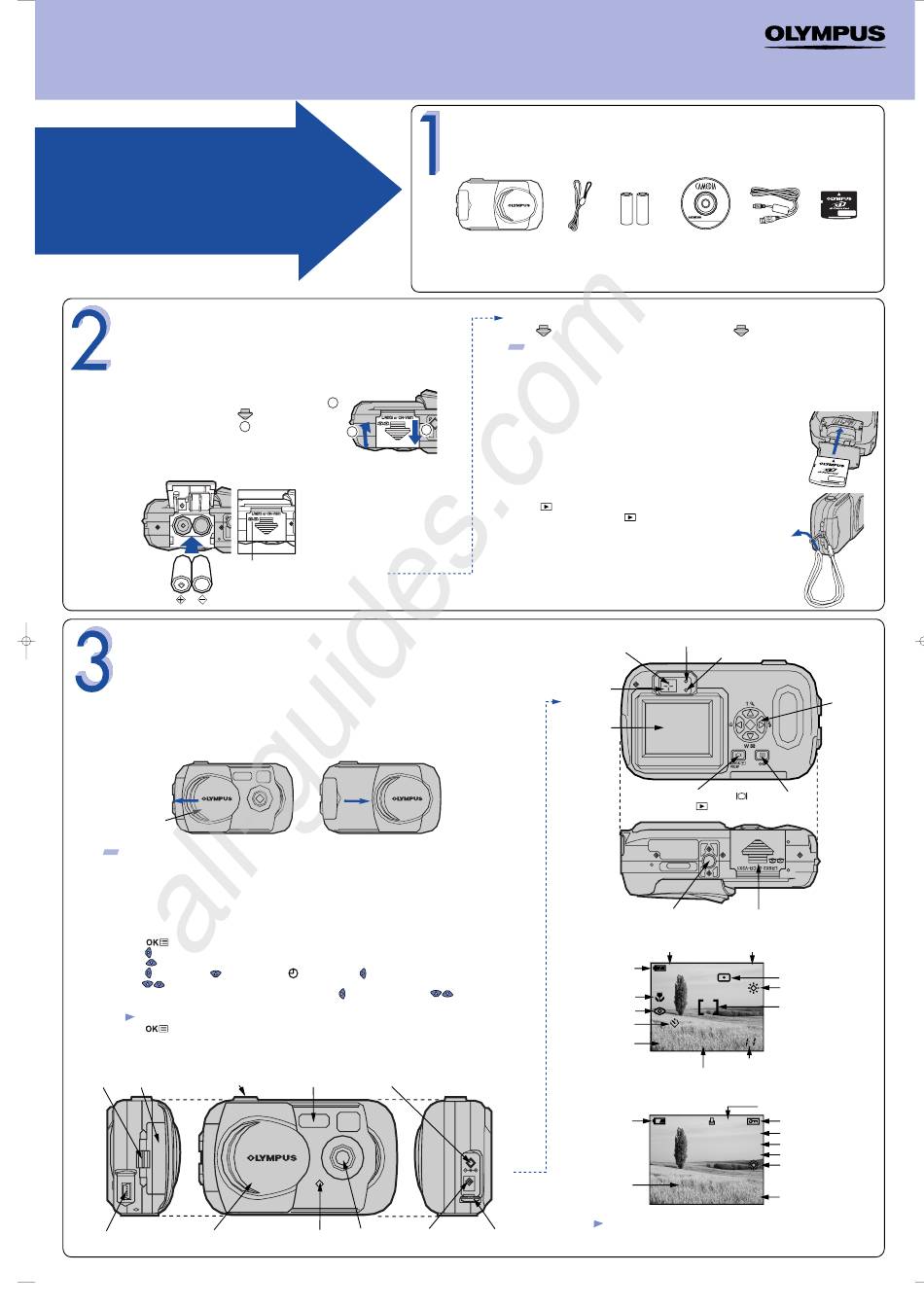

Olympus C-150 Quick Start Manual

QuickStart Guide
D-390 / C-150
START HERE
It is strongly recommended that you follow these
step-by-step numbered instructions to set up and
quickly begin using your new Digital Camera.
For more detailed instructions on advanced features, please refer
to the printed Basic Manual included in your package, or the
Reference Manual on the CD-ROM.
PREPARE THE CAMERA FOR USE
Before you begin using your Olympus digital camera...
a.
Loading batteries
• Slide the battery compartment cover in the direction of
(the direction indicated by the
and lift it up in the direction of
• Insert batteries in the direction shown in the illustration.
There is a mark on the bottom of the
camera showing the correct way to insert
batteries.
TURNING ON THE CAMERA
All you need to do is slide the lens barrier open or closed to turn the camera ON or OFF.
a.
Turn the camera ON
(SHOOTING MODE)
• Open the lens barrier.
• Close the lens barrier to turn the camera off.
Power on
Lens barrier
TIP: To maximize battery life, this digital camera features a power saving mode in which the camera enters a sleep mode after
approximately three (3) minutes of non-use. Press the shutter button to wake up the camera.
b.
Set the Date and Time
(OPTIONAL)
Although this is not required, it is recommended that you set the date and time. This affects the way image
file names are created, and will conveniently include this information with each picture. The date and time
can also be set when the camera is in the playback mode.
• Open the lens barrier fully until it clicks.
• Press to display the menu.
• Press to select MODE MENU.
• Press three times to select SETUP.
• Press once, and then twice to highlight
• Use to select the date format.
• Adjust the date and time in the appropriate fields by using
the proper value. Repeat this step until all date/time fields have been set.
Note: Time is entered using the 24-hour format.
• Press twice to set the date and time and exit the menu.
c.
Camera Diagram and Controls
Now take a moment to familiarize yourself with the key areas of camera controls by reviewing the illustrations.
Strap eyelet Card cover Shutter button
USB
USB connector Lens barrier
VT450901
All manuals and user guides at all-guides.com
