Fully Automatic Maternity Scavenging System
For Self-Administered Analgesia
MEC Medical Limited
Unit 3 Trust Estate
Wilbury Way
Hitchin
Hertfordshire
SG4 0UZ
MEC Medical Ltd.
Purair 750
Operators Manual
Tel +44 (0) 1462 436396
Fax: +44 (0) 1462 432411
E-Mail:- sales@mecmedical.com
Web
Document Reference IL750000 R313
Page 1 of 13
http://www.mecmedical.com/
Issue 3
Dated 08/12/2015
Advertisement
Table of Contents
Related Manuals for Mec Purair 750
Summary of Contents for Mec Purair 750
- Page 1 Purair 750 Fully Automatic Maternity Scavenging System For Self-Administered Analgesia Operators Manual MEC Medical Limited Tel +44 (0) 1462 436396 Unit 3 Trust Estate Fax: +44 (0) 1462 432411 Wilbury Way E-Mail:- sales@mecmedical.com Hitchin http://www.mecmedical.com/ Hertfordshire SG4 0UZ Document Reference IL750000 R313 Page 1 of 13 MEC Medical Ltd.
-
Page 2: Table Of Contents

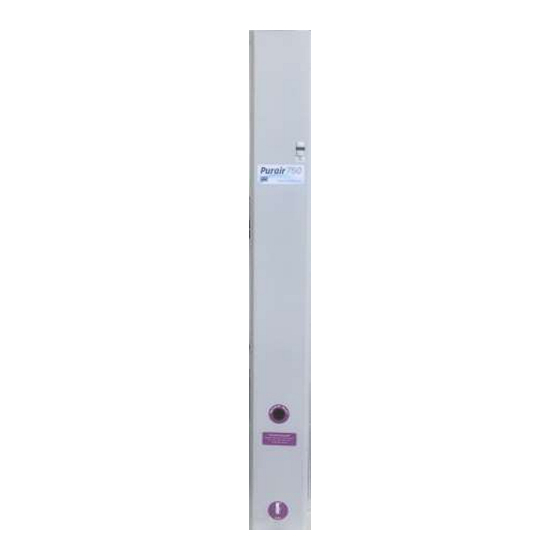

Read the Manual INTRODUCTION Once installed the Purair 750 Maternity System becomes a fully automatic Active Anaesthetic Gas Scavenging System for self-administered analgesia, which provides medical staff with a cleaner, healthier working environment, with full attention being given to patient safety. -
Page 3: Product Improvement
MEC Medical can only guarantee the safe function of the machine if it is regularly checked and serviced at or above the standards specified in this manual. -
Page 4: Symbols Used In This Manual
These notices clearly state the nature of the hazard and the means by which it can be avoided. Relevant or helpful: Relevant or helpful notices denote additional or useful information for operation or maintenance of the system. Page 4 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015... -
Page 5: Check List
This switch is connected via a 24V Low Voltage transformer control box. Both systems have a Front Panel Flow indicator A green float can be seen in the Window when the fan is running Page 5 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015... -
Page 6: For Use In The United Kingdom
NOTE appendix F2 130 LPM to be substituted by maximum flow. Inlet and Exhaust pipe to be clipped at not more than 2.5 Metre Intervals Timer over-run 15/20 minutes. Page 6 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015... -
Page 7: User Guide
USER GUIDE The Purair 750 Maternity System is activated when the patient lifts the mask [Fig.1 No.6.] from the hook-switch [Fig 1. No.12.] to self-administer analgesia during labour. Room ventilation begins simultaneously as air is drawn from the base of the unit. - Page 8 30mm Male Connector Gas Outlet Supply or 9 22mm Transfer Hose Gas Cylinder Supply 30mm Female Connector Drain Trap Analgesic Handset Power Supply Switch Face Mask Hook Switch Not included Page 8 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015...
-
Page 9: General Maintenance
Once assembled, re-connect the power supply and test. Cleaning and Sterilization The Purair 750 is not a sterile system but requires periodic cleaning of all outer surfaces with commonly used disinfectants, cleaning agents and methods. Service / Repairs... -
Page 10: Assembly
Glue all joints with supplied glue. Using the supplied 68mm pipe and connectors, connect the trunking system to the inlet side of the fan. Glue all joints with supplied glue. Page 10 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015... -
Page 11: Installation Of Exhaust Line
Care must be taken to ensure that the exit location is positioned to minimise the risk of re- entry of expelled gasses. On completion of installation, the Discharge Warning Label (supplied) should be attached adjacent to the discharge point. Page 11 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015... -
Page 12: Electrical Connection
Terminal Block Grey = LS (LS) Blue = Neutral (N) Red = Live (L) After completion, replace front panel (taking care of the hook switch) and test for operation. Page 12 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015... -
Page 13: Warranty
30mm Female Connector (pack 10) 181932FP Drain Trap (Pack 10) 750052P Microswitch Assembly 750010 MEC reserve the right to change or alter product design and/or specification without prior notice or warning Page 13 of 13 MEC Medical Ltd. Issue 3 Dated 08/12/2015...
