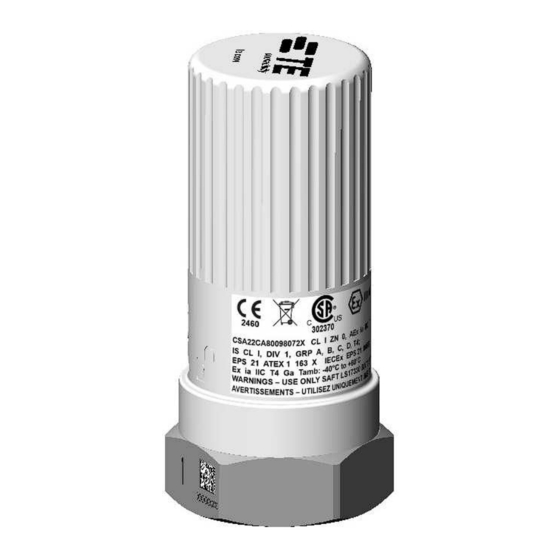

IoT Wireless Vibration Sensor Installation Manual
LoRa & BLE
•
US Coverage
ANSI/UL 60079-0-2020
o
ANSI/UL 60079-11-2018
o
ANSI/UL 913-2019
o
UL 61010-1, 3rd Edition (2012) + AMD1:2018
o
FCC Certified
o
•
Canadian Coverage
CSA C22.2 No. 60079-0:19
o
CAN/CSA C22.2 No. 60079-11:14
o
CAN/CSA C22.2 No. 61010-1-12
o
+ Update No 1:2015 + Update No 2:2016 + AMD1:2018
ISED Certified
o
•
European/IECEx Coverage
IEC 60079-0:2017 Edition: 7.0
o
IEC 60079-11:2011 Edition: 6.0
o
IEC 61010-1:2010, IEC 61010-1:2010/AMD1:2016
o
RED Compliant
o
•
Radio Frequency Communication
Bluetooth® Qualified
o
LoRaWAN Certified
o
TE CONNECTIVITY
SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR
Ex rated document, no changes allowed unless authorized by Ex agency
CM
Environmental Information
Ambient Temperature -40 °C to + 60 °C
IP66/IP67
Models 85X1N Series
SUPPLY: 3.6 V / 4μA – 35mA
FCC ID: 2A85PA85X1N
IC: 29620-A85X1N
Models 89X1N Series
SUPPLY: 3.6 V / 4μA – 35mA
FCC ID: 2A85PA89X1N
IC: 29620-A89X1N
915MHz for US and 868MHz for EU
Explosive
Atmospheres
Models 85X1N-EX and 89X1N-EX Series
US and Canada:
CSA22CA80098072X
IS CL I, DIV 1, GRP A, B, C, D, T4;
CL I, ZN 0, AEx ia IIC T4 Ga;
ATEX and IECEx:
EPS 21 ATEX 1 163 X
IECEx EPS 21.0053X
Ex II 1 G, Ex ia IIC T4 Ga;
20023687-24 Rev. A, 2022-11-07
Designations
for
Page 1
Advertisement
Table of Contents
Summary of Contents for TE 85X1N Series
- Page 1 IoT Wireless Vibration Sensor Installation Manual LoRa & BLE Environmental Information Ambient Temperature -40 °C to + 60 °C IP66/IP67 Models 85X1N Series SUPPLY: 3.6 V / 4μA – 35mA FCC ID: 2A85PA85X1N IC: 29620-A85X1N Models 89X1N Series SUPPLY: 3.6 V / 4μA – 35mA FCC ID: 2A85PA89X1N •...
- Page 2 REVISION OF THE DOCUMENT Release Date Change Description Rev. Prepared by Appr. ENG 11/07/2022 Initial release TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 2 20023687-24 Rev. A, 2022-11-07 Ex rated document, no changes allowed unless authorized by Ex agency...
-
Page 3: Warning & Important Safety Instructions
POTENTIAL ELECTROSTATIC CHARGING HAZARD – SEE SPECIFIC CONDITIONS OF USE IN INSTRUCTIONS. (AVERTISSEMENT) DÉCHARGE POTENTIEL ÉLECTROSTATIGUE HAZARD- VOIR LES INSTRUCTIONS TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 3 20023687-24 Rev. A, 2022-11-07 Ex rated document, no changes allowed unless authorized by Ex agency... - Page 4 Use only 3.6 V SAFT battery LS17330 Primary lithium-thionyl chloride (Li-SOCL2)2/3 A-size bobbin cell. iv. The battery should be installed or replaced only in non-hazardous areas. TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 4 20023687-24 Rev.
-
Page 5: Battery Installation And Replacement
Holding the battery in place, slowly extract the spacer from the negative electrode. • A one second flash from the LED will indicate that the battery has been inserted properly. TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 5 20023687-24 Rev. - Page 6 Lock direction (CW) Unlock Index Mark Index tab Caution: The Cover is tightly matched with Base/O-ring, so some resistance might be felt on rotation. TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 6 20023687-24 Rev. A, 2022-11-07 Ex rated document, no changes allowed unless authorized by Ex agency...
-
Page 7: Sensor Mounting
This allows the 8931N/8531N sensors to be rotated in order to align the X and Y axes in the desired direction. 8X31 Adjustable Angle Mounting Block 20027468-00 TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 7 20023687-24 Rev. A, 2022-10-14... - Page 8 For the magnetic mounting stud, remove the keeper prior to attachment. The magnetic mounting will have a 30 lb pull strength when attached to a ferrous surface. Impact energy level code: IK05 TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 8 20023687-24 Rev.
- Page 9 20023687-20 Installation Drawing TE CONNECTIVITY SENSORS/// MODEL 89X1N & 85X1N VIBRATION SENSOR Page 9 20023687-24 Rev. A, 2022-10-14 Ex rated document, no changes allowed unless authorized by Ex agency...
-
Page 10: Additional Notes
TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such product for the specific application.
