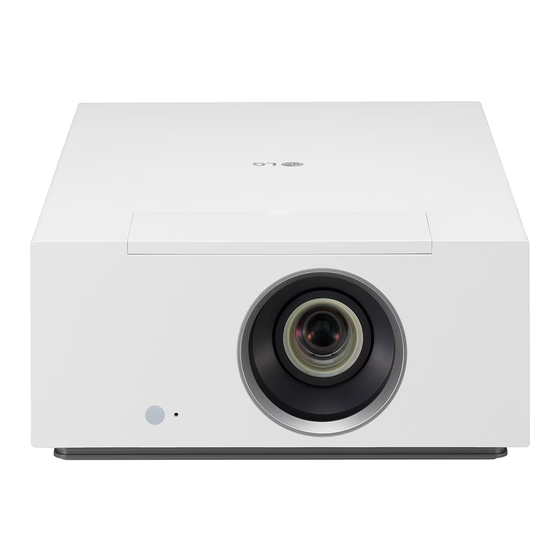

- Page 1 OWNER'S MANUAL LG CineBeam 4K DLP Projector Please read the safety information carefully before using this product. HU710PW (HU710PW-GL) www.lg.com P/NO : SAC38519003 (2303-REV02) Copyright © 2021 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
CONTENTS PREPARATION INSTALLATION Ceiling-Type Installation Projection Distance per Screen Size Precautions on Zoom Ring/Focus Ring Cover Adjusting the Focus of the Projection Screen Adjusting the Position of the Projection Screen Kensington Security System USING MAGIC LIGHTING REMOTE Inserting Batteries in the Remote Control Viewing the Remote Control Features To Register the Magic Lighting Remote To Re-register the Magic Lighting Remote... -
Page 3: Preparation
PREPARATION The pictures may differ slightly from the actual product. Accessories Accessories included with the projector are shown below. Accessories are subject to change without prior notice. New accessories may be added or old ones removed. Magic Lighting Remote Owner's Manual Two AA Batteries AC-DC Adaptor Power cord... - Page 4 To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product. Optional accessories are subject to change without prior notice. Projection Screen LG Audio Device HDMI Cable Optical Cable...
- Page 5 Parts and Components Joystick Button Inlet Vent Speaker IR Receiver Outlet Vent Speaker Lens 1) Do not touch the lens when using the projector. The lens may be damaged. (Keep lens away from sharp objects.) 2) Due to the high temperature of vent area, do not get close to the vent area.
- Page 6 Zoom Ring/Focus Ring Cover Zoom Ring Focus Ring Projection Screen Position (Lens Shift) Adjustment Dial Bottom of the Projector Adjustable leg 1) Turn the adjustable leg left or right to adjust the angle. 2) Open the zoom ring/focus ring cover to use the zoom ring/focus ring.
- Page 7 IR Receiver Port Port Port Port (DC IN Port)
- Page 8 Using the Joystick Button You can operate the projector by pressing the button or moving the joystick left, right, up, or down. Basic functions When the projector is turned off, place your Power On finger on the joystick button, press it once, and release it.
- Page 9 Adjusting the menu When the projector is turned on, press the joystick button one time. You can adjust the menu items moving the joystick button left, right, up, or down. Move to the desired menu item, and then press the joystick button once to select it. Turns the power off.
- Page 10 Projector Status Indicators LED Power Indicator LED Power Indicator LED Power Indicator Power standby state The projector is operating with the power on.
-
Page 11: Installation
INSTALLATION Ceiling-Type Installation WARNING When installing the product on the ceiling, observe the following precautions to prevent the projector from falling: — It is recommended to install the product through a professional installation services provider. (If installing on the ceiling, modify the projector’s PJT Mode settings) —... -
Page 12: Projection Distance Per Screen Size
Projection Distance per Screen Size Place the projector on a sturdy, level surface, together with the PC or audio/ video source. Place the projector an appropriate distance away from the screen. The distance between the projector and the screen determines the actual size of the image. Position the projector so that the lens is at a right angle to the screen. - Page 13 1.0 x Zoom 1.6 x Zoom NOTE • If the projected image looks distorted or bent, check to see if the screen is installed properly.
- Page 14 16:9 Aspect Ratio (1.0 x Zoom) Projection Distance Screen Size Screen Width (Y) Screen Height (X) inches 1016.0 885.5 498.1 1840 1524.0 1328.3 747.2 2780 2032.0 1771.0 996.2 3720 2540.0 2213.8 1245.3 4650 3048.0 2656.6 1494.3 5540 3556.0 3099.3 1743.4 6520 4064.0 3542.1...
- Page 15 16:9 Aspect Ratio (1.6 x Zoom) Projection Distance Screen Size Screen Width (Y) Screen Height (X) inches 1016.0 885.5 498.1 1130 1524.0 1328.3 747.2 1710 2032.0 1771.0 996.2 2300 2540.0 2213.8 1245.3 2880 3048.0 2656.6 1494.3 3460 3556.0 3099.3 1743.4 4040 4064.0 3542.1...
-
Page 16: Precautions On Zoom Ring/Focus Ring Cover
Precautions on Zoom Ring/Focus Ring Cover <Reassembly method> CAUTION Do not apply force up or down with the Position the Zoom Ring/Focus Ring cover open. Cover as shown in the picture. — The cover may come off. Press in the direction of the arrow Please refer to the reassembly method as shown in the picture. -
Page 17: Adjusting The Focus Of The Projection Screen
Adjusting the Focus of the Projection Screen When an image appears on the screen, check if it is in focus and fits the screen properly. To adjust the focus of the image, slowly adjust the focus ring to the left or right while looking at the top centre of the screen. -
Page 18: Adjusting The Position Of The Projection Screen
Adjusting the Position of the Projection Screen You can use the Projection Screen Position (Lens Shift) Adjustment Dial to adjust the position of the projection screen without moving the projector up, down, left or right. If the projection screen does not align properly on the screen even after adjusting the position of the projection screen using the Projection Screen Position (Lens Shift) Adjustment Dial, use the [Edge Adjustment] function. - Page 19 How to Use the Projection Screen Position (Lens Shift) Adjustment Dial You can use the dial to move the position of the projection screen (lens) without moving the projector. Up/Down Adjustment Dial Left/Right Adjustment Dial CAUTION • Clicking sounds while rotating the dial indicates that no further adjustment can be made.
- Page 20 Adjustment Range of the Position of the Projection Screen The range for moving the position of the projection screen using the Projection Screen Position (Lens Shift) Adjustment Dial is shown below. • When the lens position is at its vertical limit (up/down), you cannot move the lens horizontally (left/right).
-
Page 21: Kensington Security System
Kensington Security System • This projector has a Kensington Security Standard connector as an anti-theft mechanism. Connect a Kensington Security System cable as shown below. • For more information on installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System. •... -
Page 22: Using Magic Lighting Remote
USING MAGIC LIGHTING REMOTE • Depending on country Inserting Batteries in the Remote Control If the battery low message appears while using the Projector, replace the batteries. Use 1.5 V, AA-type alkaline batteries. Replace the two batteries with new ones and insert them according to the direction indicator inside the remote control. -
Page 23: Viewing The Remote Control Features
Viewing the Remote Control Features * : To use the button, press and hold for more than 3 seconds. (POWER) Turns the Projector on or off. (Q. Settings) Accesses the Quick Settings. (Q. Settings) * Displays the [All Settings] menu. Number buttons Enters numbers. - Page 24 The menu appears in the order of [Iris Mode]/[Adaptive Contrast]/[HDR Tone Mapping]/[Cinema Screen]/ [TruMotion]. Depending on the input signal or video mode setting, the menu may deactivate and disappear from the screen. The configurable items differ depending upon model. — [HDR Tone Mapping]: When the signal is not HDR10 —...
- Page 25 Accesses the Home menu. Launches the last used apps. (Back) Returns to the previous screen. (Back) * Clears on-screen displays and returns to last input viewing. (Up/Down/Left/Right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and the Magic Lighting Remote will operate like...
- Page 26 (INPUT) Changes the input source. (INPUT) * Accesses the [Home Dashboard]. Change the input source to [HDMI 1]. These access special functions in some menus. The remote control buttons light up so that you can use the remote control in the dark. If the remote control does not move, the pointer disappears and the remote control light turns off in about 5 seconds.
-
Page 27: To Register The Magic Lighting Remote
To Register the Magic Lighting Remote You must pair the Magic Lighting Remote with the projector to use it. Pair the Magic Lighting Remote prior to use as follows. Put batteries into the Magic Lighting Remote and turn the Projector on. Point the Magic Lighting Remote at your projector and press the Wheel (OK) on the remote control. -
Page 28: Using The Magic Lighting Remote
Using the Magic Lighting Remote • If you shake the Magic Lighting Remote left and right or turn its wheel while pointing it at the projector, a pointer will appear on the projector screen. If you move the remote control in the direction you want, the pointer follows the movement. - Page 29 • You can set the pointer speed and size you want while it is on the screen. (Q. Settings) → → [General] → [System] → [Additional Settings] → [Pointer Options] — [Tracking Speed]: Sets the pointer speed. — [Pointer Size]: Selects the pointer size. •...
-
Page 30: Connecting Devices
CONNECTING DEVICES You can connect various external devices to the projector. Connecting with a HDMI Cable Connect an HD receiver, DVD, PC, Notebook, or external devices to the projector and select an appropriate input mode. With an HDMI cable, you can enjoy high quality picture and sound. Using a HDMI cable, connect the port of the projector to the HDMI output port of the device to connect. -
Page 31: Connecting A Digital Amp
Connecting a Digital Amp Using an optical cable, connect the digital audio input port of a digital amp to the port of the projector. The output of an amp with a digital converter must be set to the desired audio format. If a projector, home theater, or the speaker of an external audio device is operating at the same time, there will be an echo. -
Page 32: Connecting A Smart Device (Smartphone, Tablet, Etc.)
Connecting a smart device (smartphone, tablet, etc.) (INPUT) → [Home Dashboard] → [Inputs] → [HDMI 1]/[HDMI 2]/[HDMI • • The picture may look different from the actual product. Connect a smart device to the projector using a cable and set the external input of the projector to HDMI. -
Page 33: Safety Precautions
SAFETY PRECAUTIONS Please take note of the safety instructions to prevent any potential accident or misuse of the projector. Child injuries can be prevented by following these simple safety precautions. The precautions should be followed in the same manner when you store or move your existing projector. - Page 34 Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Indoor Installation WARNING Do not install products including projectors and remote controls in the following places: — Any place exposed to direct sunlight; — Any humid place such as bathroom; —...
- Page 35 Keep the following precautions in mind to prevent the temperature rise inside the projector: — Install the air vents at least 30 cm away from the wall. — Do not install the product in a place where it cannot be ventilated, such as on a bookcase or in a closet.
- Page 36 CAUTION When moving the projector, be sure to turn off the power switch and disconnect the power plug, antenna cable and the connection cord between the devices. • A failure to do so may cause damage to the projector or the cord, resulting in a fire or electric shock.
- Page 37 When in Use WARNING When thunder or lightning strikes, unplug the power cord and do not touch the antenna wire. • It may cause an electric shock. If there is a gas leak from the gas lines, do not touch the outlet and be sure to vent by opening the window.
- Page 38 Keep the plastic wrapping of the product out of the reach of children. • If a child misuses it, it may suffocate the child. Do not touch near the vents during the operation or immediately after the power is turned off as they generate intense heat. •...
- Page 39 CAUTION Do not use any product that uses high voltage electricity near the projector. (e.g. An electric fly swatter) • It may cause a malfunction. Do not place any liquid containers such as a vase, pot, cup, cosmetics or medicine, decorations such as candles or any heavy objects on top of the projector.
- Page 40 Do not block the light from the projector lens with a person, book or other objects. • If the light from the projector shines on an object for a long time, it can cause fire due to the heat of such light. Also, the reflected light can heat the lens and cause damage to the projector.
- Page 41 Power WARNING Make sure the power plug is securely plugged in to prevent it from shaking. • If the connection is unstable, it may cause a fire. Do not plug too many devices into one multi-power outlet. • This may result in fire due to the power outlet overheating. Do not insert a metal object such as chopsticks into the other end of the power plug while it is plugged into a wall outlet.
- Page 42 Keep the power cord away from heat sources. • The coating of the cord may melt and cause a fire or electric shock. Use only the authorised power cord or AC adapter supplied by LG Electronics. Do not use any other products. •...
- Page 43 Cleaning WARNING Do not spray water directly onto the projector when cleaning it. • It may cause a fire or electric shock. CAUTION How to clean the projector — Disconnect the plug from the outlet before cleaning. — Do not wipe the optical system (the lens and mirror) immediately after the power is turned off.
- Page 44 Laser WARNING • You risk being exposed to laser radiation if you manipulate or alter the product in a way not specified in the user manual. • Be sure not to let infants or people with diseases directly watch the light source. CAUTION •...
-
Page 45: Checking Before Reporting Malfunction
CHECKING BEFORE REPORTING MALFUNCTION Please check the list below when you experience the following symptoms during use of the product. It may not be a failure. Projector Safety Check Symptoms • The projector does not display anything on the screen or output sound when it is turned on. -
Page 46: Troubleshooting
Troubleshooting Symptoms Causes and Solutions I cannot turn on • Please make sure your projector power plug is correctly the Projector. connected to the outlet. • There may be a problem with the outlet, so try plugging the power cord of another product into the outlet where the projector was plugged in. - Page 47 This noise is normal and does not affect the projector’s functions. LG Electronics manages the manufacturing of projectors according to strict standards. A fixed level of noise does not indicate a problem.
-
Page 48: Checking Information
CHECKING INFORMATION Specifications MODEL HU710PW (HU710PW-GL) Resolution (Pixel) 3840 (Horizontal) × 2160 (Vertical) Aspect ratio 16:9 (Horizontal:Vertical) Projection distance 1130 mm to 8700 mm — Screen size — 1016.0 mm to 7620.0 mm (40 inches to 300 inches) Ratio of upward 110 % projection Ratio of downward -110 % projection Power consumption 210 W... -
Page 49: Hdmi Supported Mode
HDMI Supported mode HDMI (DTV) Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 640 x 480 31.46 59.94 640 x 480 31.5 720 x 480 31.47 59.94 720 x 480 31.5 720 x 576 31.25 1280 x 720 44.96 59.94 1280 x 720 1280 x 720 37.5 1920 x 1080... - Page 50 Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 3840 x 2160 53.95 23.98 3840 x 2160 3840 x 2160 56.25 3840 x 2160 61.43 29.97 3840 x 2160 67.5 3840 x 2160 112.5 3840 x 2160 134.86 59.94 3840 x 2160 4096 x 2160 53.95 23.98...
- Page 51 HDMI (PC) Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 640 x 350 31.46 70.09 720 x 400 31.46 70.08 640 x 480 31.46 59.94 800 x 600 37.87 60.31 1024 x 768 48.36 1360 x 768 47.71 60.01 1152 x 864 54.34 60.05 1280 x 1024...
- Page 52 Horizontal Frequency Resolution Vertical Frequency (Hz) (kHz) 4096 x 2160 53.95 23.98 4096 x 2160 4096 x 2160 56.25 4096 x 2160 61.43 29.97 4096 x 2160 67.5 4096 x 2160 112.5 4096 x 2160 134.86 59.94 4096 x 2160 2560 x 1440 88.78 59.95...
-
Page 53: Licenses
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 54: Other Specifications
Other specifications As with any bright light source, do not stare into the beam, RG2 IEC 62471- 5:2015. Risk Group 2 CAUTION Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be harmful to the eye. This label is attached to the bottom of the product and language may differ. -
Page 55: Symbols
Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
