■ Connect the high pressure hose to the
pressure washer gun assembly by turning
the fitting clockwise. Ensure the fitting is fully
tightened to the pressure washer gun.
■ Insert the male end (A) of the wand
into the female bayonet outlet (B)
firmly.
■ While pushing in the wand firmly, turn
clockwise until tabs lock into place to
ensure a leak-free connection.
■ Pull back the quick-connect collar
■ Push the spray tip into place
■ Push the collar forward
Missing parts, accessories or need a service center?
Do Not Return to Store
Call : 1-855-431-1229
http://www.walmart.com/
Rev:00
This Quick Start Guide is not a substitute for reading the operator's manual. To reduce the risk
WARNING:
of injury or death, user must read and understand operator's manual before using this product.
1600 PSI / 1.2 GPM
ELECTRIC PRESSURE WASHER
HT041700B

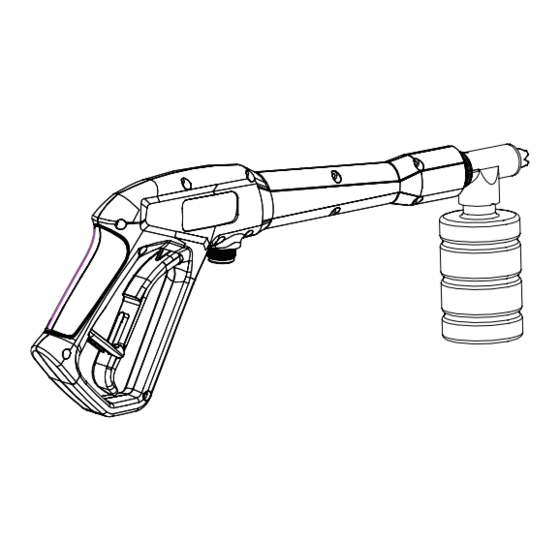

INSTALLING DETERGENT BOTTLE
■ Insert the male end of the bottle into the female outlet on the
trigger handle.
■ While pushing in the bottle firmly, turn clockwise until tabs lock
into place to ensure a leak-free connection.
■ Unscrew the bottle from the assembly and fill with pressure
washer detergents/soaps only.
SPRAY TIP
SPRAY TIP APPLICATION
Yellow - Narrow fan tip (15° )
■ The yellow pressure washer tip provides high versatility with its
15 degree angle tip. Referred to as the washing tip, because it
provides adequate pressure to remove dirt from surfaces, but is
designed to not damage many surfaces. This pressure washer tip is
15
O
designed for "sweeping" foliage or debris given its wide angle. This
tip is versatile due to its wide area of cleaning and strong pressure
application.
Set-up
1
Connect garden hose to pressure
washer water intake.
2
Assemble pressure washer gun to spray
wand.
3
Insert high pressure hose into trigger
handle.
4
Insert high pressure hose into the pressure
washer.
5
Turn on water at outlet.
6
Run water hose for 30 seconds with the
motor in OFF position. This helps drain air
from the tank and lines.
30
S
7
Connect power cord to wall outlet
Extension cord not recommended.
8
Turn on Pressure Washer
IMPORTANT: Ensure water outlet is On
before turning power On to avoid damage
to the pump.
NOTE:
AUTO ON/OFF SWITCH: This Pressure washer is equipped
with an Auto Start/Stop feature.
To operate: Turn the power switch to the On (I) position. Pump will
pressurize and shut down immediately.
Once the trigger of the gun is depressed the unit will turn on.
Unit will shut off and be in standby mode when trigger is released.
