RUKO MTC Series Operation Manual

Digital cutting system

Advertisement

Quick Links

MTC Series User Manuals
RUK DIGITAL CUTTING SYSTEM
Operation Manual
RJMTC06/09
Copyright owner:Ningbo ruking electrical technology co.,ltd
Address:10F Bridge Group, No.579 Rilizhong Rd, Ningbo city, China
TEL:400-680-9891 FAX:86-0574-28812912
www.ruk-tech.com
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTC Series and is the answer not in the manual?

Questions and answers

Zhanna
February 25, 2025

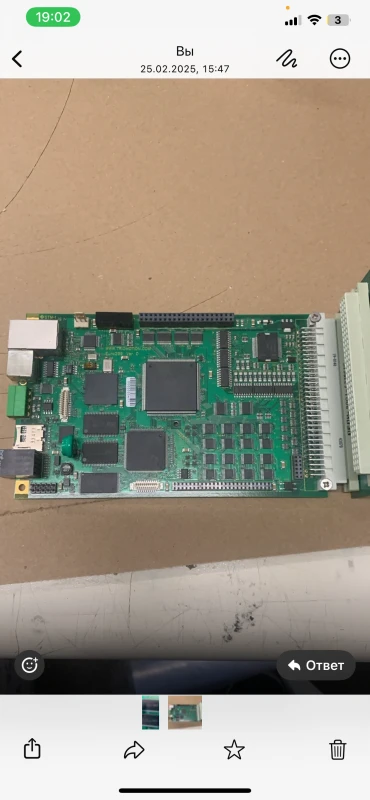

RJMTC I have the RUK System RJMTC 1815. It doesn’t work. Recently I have loaded firmware running the controll board Euro 209. But now I need the programs to run that machine. Could you help me?

User image 67be11c71261a

Summary of Contents for RUKO MTC Series

  • Page 1 MTC Series User Manuals RUK DIGITAL CUTTING SYSTEM Operation Manual RJMTC06/09 Copyright owner:Ningbo ruking electrical technology co.,ltd Address:10F Bridge Group, No.579 Rilizhong Rd, Ningbo city, China TEL:400-680-9891 FAX:86-0574-28812912 www.ruk-tech.com Page 1...
  • Page 2 MTC Series User Manuals P ro l o g u e Thanks to your patronage, it is a great honour for us that you purchase the RUK cutting machine. RUK cutting machine is a CNC cutting machine designed by Ningbo RUK Technology Co., Ltd.
  • Page 3: Table Of Contents

    MTC Series User Manuals Contents I. Installation of RJMTC series .......................4 1-1 Selection of equipment placement environment................4 1-2 Handling Instructions........................4 1-3 Unpacking inspection of equipment ....................4 1-4 Equipment outline structure ......................5 1-5 Equipment Transfer Points ......................7 1-6 Installing the knife sleeve....................... 7 1-7 Line Connection ..........................8...
  • Page 4: Installation Of Rjmtc Series

    MTC Series User Manuals I. Installation of RJMTC series 1-1 Selection of equipment placement environment Before unpacking the equipment, first choose a suitable environment to place the equipment, this environment should meet the following requirements:  Place the ground should be flat and the ground should be dry; avoid placing it in a place containing corrosive gas or liquid, avoiding water droplets, steam, oily dust, flammable, explosive gas, floating dust and metal particles.
  • Page 5: Equipment Outline Structure

    MTC Series User Manuals B . m a c h i n e h ea d A.platform C.feeder D.display holder  A c c e s s o r i e s i n t h e a c c e s s o r y b ox : i n c l u d i n g b l a d e s , m a c h i n e to o l s , e l e c t r o n i c a c c e s s o r i e s , s o m e w i r e s , a s s e m b l y to o l s a n d s c r e w s , r e l a t e d d o c u m e n t s , a n d o p t i o n a l to o l s e t c .
  • Page 6 MTC Series User Manuals A n t i - c o l l i s i o n Machine head feeder platform Drive system Base frame Display holder Figure1-2 (1) The rack is responsible for supporting the entire machine and providing the cutting material;...
  • Page 7: Equipment Transfer Points

    MTC Series User Manuals 1-5 Equipment assembly points. Note: After the table top is installed, the table top is leveled and the feet under the foot frame are adjusted so that the cutting platform is at the same level as the ground.
  • Page 8: Line Connection

    MTC Series User Manuals 1-7 line connection Power cable connection method: As shown in Figure 1-4 below, the equipment meets the requirements of international electrical design, and has passed CE certification. According to the national power supply standard, the chassis uses 220V±10% standard single-phase power supply, and the air pump uses three.
  • Page 9: Rjmtc Series Operation And Touch Screen Interface Settings

    MTC Series User Manuals II.RJMTC series operation and touch screen interface settings Machine o n and o ff 1. Boot: (1) Connect the power cord and turn on the power switch and emergency stop button. (2) After pressing the red button, the LCD screen will display the initial screen. Wait for about 5 seconds to complete the system start up.
  • Page 10 MTC Series User Manuals Reset Explain: Reset the machine to the origin point. Repeat Explain: Repeat cut the previous version figure. The maximum speed when system got Pen speed drawing commands Add and subtract pen speed acceleration Oscillate The maximum speed of oscillate cutting...
  • Page 11 MTC Series User Manuals acceleration tool V_cut speed Max. Speed of v_cut V_cut Add and subtract speed of v_cut System set acceleration Round blade The max. Speed of round blade Round blade Add and subtract speed of round blade acceleration Rotary blade The max.
  • Page 12 MTC Series User Manuals receive the pen-up signal Blade down The delay n milliseconds after the system delay receive the blade-down signal Blade up The delay n milliseconds after the system delay receive the blade-up signal U rotation angle Adjust the rotation angle of u tool;...
  • Page 13 MTC Series User Manuals After this function is turned on, the Automatic system will perform the current version of repetition file cutting repeatedly until it is canceled Automatic back to the origin function, Automatic after cutting a version of the sample will...
  • Page 14 MTC Series User Manuals Rolling speed He speed of rolling feed Fixed and CCD position rolling cutting rolling switch Rolling accelerated Rolling feeding accelerated speed speed Feeding offset Offset value when feeding value Waiting time after suction closed before Suction delay...
  • Page 15 MTC Series User Manuals Press direction switch can move in the direction indicated. After slightly Manual moving adjustment, the speed of movement is 1/10 of the original. The values show the head position in x and y Oscillating After clicking, press down the vibration...
  • Page 16: Operation Examples

    MTC Series User Manuals Press direction switch can move in the direction Tool up and indicated. After slightly down moving adjustment, the speed of movement is 1/10 of the original Show the current running tool number and Current tool tool...
  • Page 17 MTC Series User Manuals 图 示 2 - 2 2)Acceleration setting (setting pen acceleration as an example)  Click the "system setting" button on the main interface and click the "speed setting" button after the system setting interface appears ...
  • Page 18 MTC Series User Manuals communication interface;  Set download port selection to Ethernet  Set the IP address. The current IP address of the local computer is "192.168.0.26", and the IP address of the device can be set as "192.168.0.250".
  • Page 19: Decode

    MTC Series User Manuals 2-4 Decode  When the system shows the words "program expired, please contact the manufacturer", it means the machine has expired. Please contact us.  Start up and restart the machine. When entering the "runjin technology" screen, press the upper left corner of the touch screen.
  • Page 20: Software Operation Steps

    MTC Series User Manuals 2.5 Software operation steps 2.5.1 open the software To ensure that the cutting operation is completed, the need to open the following two software 1. Drawing software: rukdesign, function for the cutting of the surface processing, the use of the choice of the head, etc., the surface format must be required for the...
  • Page 21 MTC Series User Manuals Find the file you want to cut and click "open", will pop up the following dialog box: Click "OK" here, no need to make any changes. www.ruk-tech.com Page 21...
  • Page 22 MTC Series User Manuals 2. Determine whether the orientation of the image on the table is the same as the direction of the image in the software The direction of the machine table is "X", the left and right direction is "Y", the computer software landscape is "X", the vertical is "Y", the software as follows:...
  • Page 23 MTC Series User Manuals Figure can be rotated 180 degrees or 90 degrees, until the direction is consistent; www.ruk-tech.com Page 23...
  • Page 24 MTC Series User Manuals 3. Click the "Integrated Treatment " button, as shown in the following figure: Tick the two options as shown in the picture, click OK 4. Click "Other", select "Auto Recognize Punch", as shown below www.ruk-tech.com Page 24...
  • Page 25 MTC Series User Manuals After punching recognition is completed, as shown below 5. Change the line number Select the tool, click on the need to use the tool, such as the machine operation screen SP1: U, SP2: U1, if you need U1 tool cut, click on the software "2", and frame the need to process the surface, then the line will change For the green, that is, the software "2"...
  • Page 26 MTC Series User Manuals 2.5.2 Transmission software 1. Mode selection, cutting mode has two items: positioning cutting & non-positioning cutting, select the mode and click Save, the following describes the mode selection: a. Will "stop" in the figure, click to "continue", as shown below: www.ruk-tech.com...
  • Page 27 MTC Series User Manuals 2500 1600 b. Click "Advanced Settings" to enter the following interface, you can select the mode, after selection, www.ruk-tech.com Page 27...
  • Page 28 MTC Series User Manuals click "Save", the mode is selected. Click here to change the mode Here are two modes 1. Non-positioning cutting, belonging to the coordinate cutting, according to the drawing software coordinates of the corresponding table surface coordinate cutting operations; can be used for processing the monochrome material without drawing and cutting.
  • Page 29 MTC Series User Manuals 2. Position the cutting mode operation A. On the drawing software, click on the "cut the first page" to confirm the output, on the transfer software, click "Continue", as shown below, jump to the mark selection screen B.Double click on the camera to open the camera, move the camera so that the first mark point appears...
  • Page 30: Installation Instructions For Rjmtc Daily Blade Holders

    MTC Series User Manuals III. Daily installation instructions for blade sleeve Rjmtc daily use process specification Process project Picture Explain The blades configured by our company are placed in the toolbox. Please select 1. Choose blade the appropriate blades according to your materials and technological requirements (please pay attention to safety when holding the blades).
  • Page 31 MTC Series User Manuals Third: Select the required blade, pay attention to the knife gesture, the tip is in the center of the circle, the blade is outwards, the internal gap is aligned in a line, the knife into(install upside down, easy to appear disorderly cut...
  • Page 32 MTC Series User Manuals Wrong First Place the blade sleeve with the finished blade into the installation position of the 4. Blade machine head, align the three red dots, align Sleeve installation the tip of the knife sleeve with the groove, and finally press the knife sleeve down www.ruk-tech.com...
  • Page 33 MTC Series User Manuals Three points in one line Second After the blade sleeve is plugged to the bottom, rotate the position of the red spot on the top layer to tighten it. After tightening the button to the fixing rod, the blade sleeve...
  • Page 34: User Notices

    MTC Series User Manuals Second After put the material, set origin point, and then send the file to cut IV. User notice  Power specification: 220v/380V±10%/50hz, ground wire must be installed to prevent static electricity  The packaged CNC cutting system should avoid large vibration and collision during transportation.
  • Page 35: Specifications

    MTC Series User Manuals sample cutting or not Speed too fast or vibrate not opening or Reduce cutting speed, open the Rough edge when cutting sample blade be damaged vibrate switch VI. specifications Model RJMTC2516 RJMTC2513 RJMTC1310 Machine design Flatbed cutting machine with servo motor system...
  • Page 36: Attachment

    MTC Series User Manuals Attachment. The following parameters are for reference only Para record chart Model Date Modifier Para name Actual record Para name Actual record Para name Actual record Advanced U deep limit U1 deep limit Optimize angle Optimize...
  • Page 37 MTC Series User Manuals compensation compensation Auto send Send speed Send accel Send offset Pump delay Transmit program parameters X-direction Minimum limit in Maximum limit in proportion x direction x direction Y-direction Minimum limit in Maximum limit in proportion y direction...
