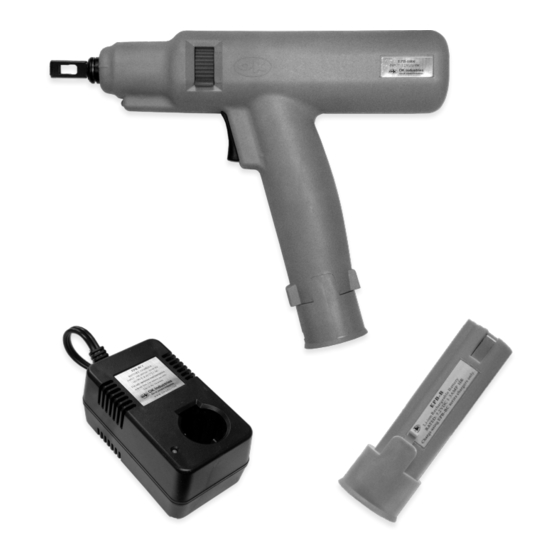

- Page 1 EPB Series Battery Powered Punchdown Tool User Manual 134 Marbledale Road • Tuckahoe • NY 10707 Tel: 914-793-0700 • Fax: 914-793-4527 • sales@jonard.com...
- Page 2 Table of Contents Features…………………………………………………………….2 Product Selection……………………………………………..2 Operating Instructions.…………….……………………..3 Blade Installation & Orientation.……………………….4 Battery Charger…………………….…………………..………5 Replacement Blades & Accessories…………………..6 Technical Specifications.…………………………………...7 FEATURES: • Over 1,000 impacts between charges • Dual action trigger for LED task lighting and impact • Quick-easy blade lock and release •...
- Page 3 OPERATING INSTRUCTIONS Insert the battery into the base of the tool. To remove the battery from the tool, press the battery tabs and pull. Insert the correct blade into the front of the tool and lock in place (see blade installation on page 4 for more details). Select the appropriate impact setting based on seating requirements.
- Page 4 BLADE INSTALLATION Point the front end of the tool towards yourself. Insert either end of the blade (cutter or no cutter) into the front end of the punchdown tool - then point away from your body. Rotate the blade clockwise until the locking slot of the blade finds the locking pin.
- Page 5 BATTERY CHARGER Plug the battery charger into the appropriate electrical outlet. The battery charger LED will blink several times switching between Red and Green then stays on Green. Insert the battery into the charger. The LED will turn red, indicating battery is charging Once the battery is fully charged the LED will turn green.
- Page 6 REPLACEMENT BLADES EPB-66 66 Blade with & without cutter EPB-110 110 Blade with & without cutter EPB-KR Krone Blade with & without cutter EPB-1000 ACCESSORIES EPB-B Replacement Lithium Ion Battery EPB-BC1 115V Battery Charge EPB-BC2 230V Battery Charger...
- Page 7 TECHNICAL SPECIFICATIONS Battery Charger: INPUT: 100 ~ 240VAC, 50-60HZ OUTPUT: 8.4VDC, 1.3A Battery: 7.2V, 1.3Ah (Lithium ion battery) Impact Strength: High position: 30 Lbs. (13.5 kgs) Low position: 22 Lbs. (10.0 kgs) Unit weight of tool: 1.32 Lbs. (600 g) (Not including battery) Unit weight of battery: .22 Lbs.
- Page 8 EPB-500 Manual Punchdown Tool A Transformational redesign of a popular tool A revolutionary family of impact tools - developed to satisfy ergonomic necessity and boost operatory efficiency. With worker safety in mind, we consulted a certified ergonomist and added the following features: •...
