Summary of Contents for Vega CN-02MU

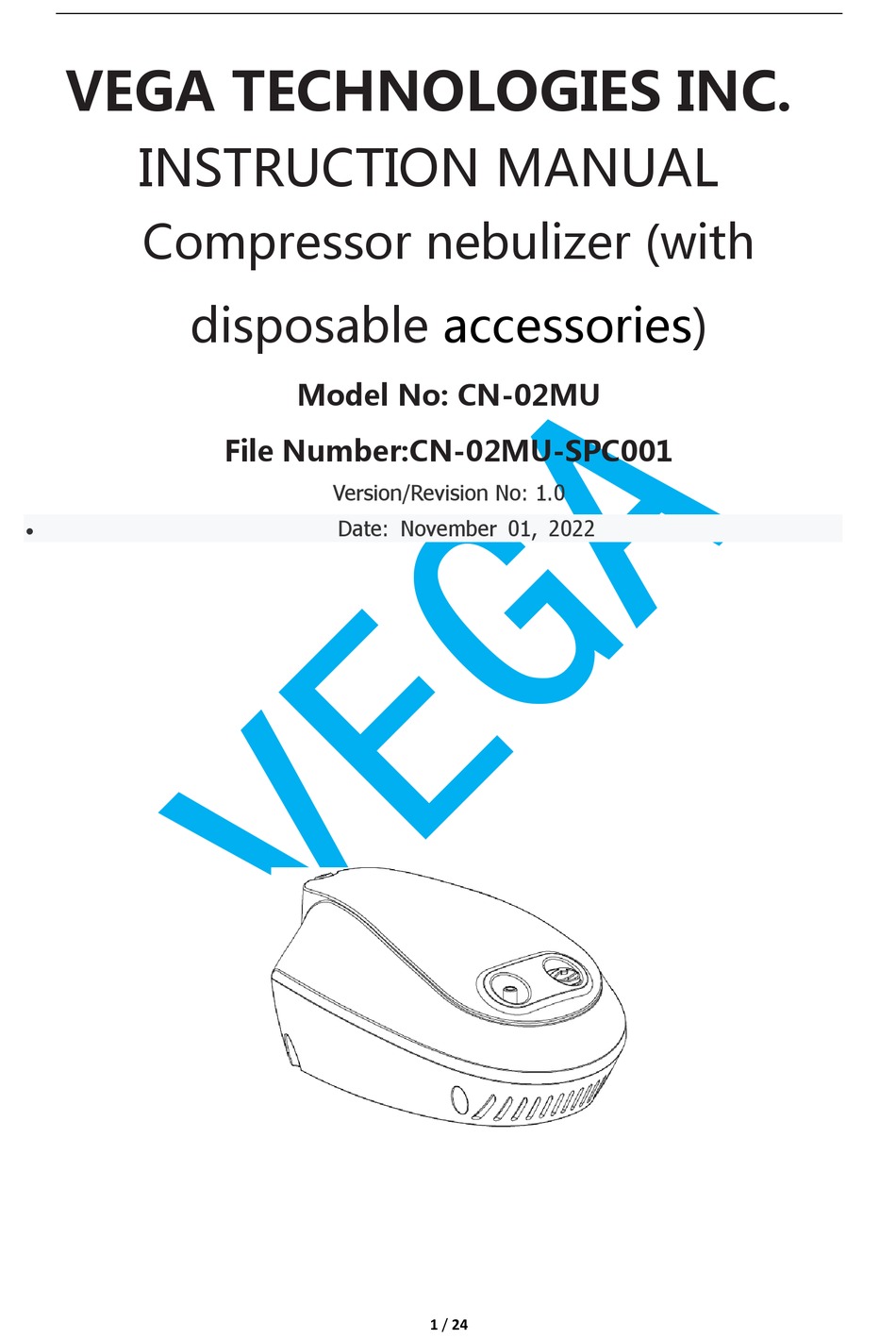

- Page 1 VEGA TECHNOLOGIES INC. INSTRUCTION MANUAL Compressor nebulizer (with disposable accessories) Model No: CN-02MU File Number:CN-02MU-SPC001 Version/Revision No: 1.0 Date: November 01, 2022 1 / 24...
-
Page 2: Table Of Contents
（Read this instruction manual carefully before use） Contents Introduction ..........................3 Safety precaution ........................5 Information for operation ......................8 Cleaning and maintenance ....................10 Troubleshooting information....................11 Service information ........................12 Technical specifications ......................14 Symbols ............................16 Disposal ............................17 10. -
Page 3: Introduction
1. Introduction Thank you for purchasing the compressor nebulizer. It is a compact medical device designed to efficiently deliver physician prescribed medication to the bronchial lung passages. With proper care and use, it will provide you with many years of reliable treatment. - Page 4 This product is intended for use in a medical facility, such Intended as hospital, clinic and doctor office, and in a room of Environment general household. Precautions for Warnings and cautions described in the instruction manual should be observed 1.2 Product identification 1.3 Disposable accessories list Disposable accessories Quantity...
-
Page 5: Safety Precaution
Air Filters 5pcs Adult Mask Child Mask Infant Mask Connector 2. Safety precaution Read all the information in the instruction manual and any other literature included in the box before using the device. When using an electrical product, especially when children are present, basic safety precautions should always be followed including the following: Warning: Indicates a potentially hazardous situation which, if not avoided, could result in... - Page 6 4) The long air tube of this product may cause strangulation of the user if use in wrong way. 5) Do not use disposable accessories, detachable parts and materials not described in the instructions for use. 6) Do not use in an oxygen rich environment. 7) Do not interconnect this equipment with other equipment not described in the instructions for use.
- Page 7 4) Do not use or store the device in humid locations, such as in a bathroom. 5) Do not operate the device with a damaged power cord or plug. 6) Keep the power cord away from heated surfaces. Caution: Indicates a potentially hazardous situation which if not avoided, may result in minor or moderate injury, or physical damage.
-
Page 8: Information For Operation
—That the compressor operates normally. 2) When using this device, there will be some noise and vibration caused by the pump in the compressor. There will also be some noise caused by the emission of compressed air from the nebulizer kit. This is normal and does not indicate a malfunction. - Page 9 3.2 Installation and operation procedure Note: Prior to every operation, the nebulizer should be thoroughly cleaned. 1) Place your Compressor Nebulizer on a flat and stable surface. Be sure that you can easily reach the controls when you are seated. 2) Open the top cover.
-
Page 10: Cleaning And Maintenance
Important: The compressor motor has a thermal protector which will shut off the unit before the unit is overheated. When the thermal protector shuts the unit off, please: Switch off the unit. b. Unplug the unit from the electrical outlet. Wait 30 minutes for the motor to cool down before another treatment. -
Page 11: Troubleshooting Information
2) Do not use any powder cleaners or acidic solvents, which may damage the product. 3) The device shall be cleaned at least once a month. Filter change: 1) Do not use cotton or any other materials. Do not wash or clean the filter. Only use filters supplied by your distributor. -
Page 12: Service Information
ME SYSTEM; or – to report unexpected operation or events. VEGA will not accept damages or charges for labor, parts, or expenses incurred in making field repairs. The foregoing warranty is exclusive and in lieu of all other expressed warranties. - Page 13 13 / 24...
-
Page 14: Technical Specifications
7. Technical specifications 7.1 Specifications table Product name Compressor Nebulizer Model CN-02MU Type BF Applied part Mouthpiece Adult/child mask Power (main unit) 230V/50Hz Mode of operation Non-continuous (30 Min. on / 30 Min. off) The typical operation time 30 min. - Page 15 Item Specification Model CNK-M03 Nebulizer Bottle Mouthpiece CNK-M06 Air Filter CNK-S03 Nosepiece PP, translucent CUK-M04 PVC, transparent, with Child Mask CUK-M02 mask strap PVC, transparent, with Adult Mask CUK-M01 mask strap Air Tube PVC, 150cm CNK-S01 Connector CUK-S01 PVC, blue, PMS284C, Infant Mask CNK-M14 with mask strap...
-
Page 16: Symbols
7.3 The particle size distribution curve 8. Symbols 8.1. Symbols and description Refer to instruction Manufacturer manual/booklet Batch code Date of manufacture Serial number Caution 16 / 24... -
Page 17: Disposal
Type BF applied part Temperature limitation Keep away from sunlight Protection class II IP21 Humidity limitation Ingress protection Direct current Keep away from rain "ON"/"OFF" (push-push) Alternating current This device complies with the requirements of Quantity 0123 Regulation (EU) 745/2017 Authorized This way up representative... -
Page 18: Information About Electromagnetic Compatibility
not be disposed of with unsorted domestic waste. Look for a careful separation of materials. Consider the country-specific laws and regulations that apply to the disposal of the device. The proper disposal of the device prevents environmental and human damage. Outside the EU, the appropriate national regulations for disposal must be observed. - Page 19 electronic equipment. RF emissions CISPR 11 Class B The device is suitable for use in all establishments other than domestic Harmonic emissions Not applicable and those directly connected to the IEC 61000-3-2 public low-voltage power supply Voltage fluctuations network that supplies buildings used for flicker emissions domestic purposes.
- Page 20 Surge ± 1 kV line(s) Not applicable Mains power quality should be that of a typical commercial or hospital environment. line(s) IEC 61000-4-5 ± 2 kV line(s) to earth Voltage dips, <5 % UT Not applicable Mains power quality should be short that of a typical commercial or (>95 % dip in...
- Page 21 (50/60 Hz) environment. magnetic field IEC 61000-4-8 NOTE UT is the a.c. mains voltage prior to application of the test level. Table 3 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
- Page 22 80MHz should be less than the compliance level in each frequency range. Interference may occur in the 2.5GHz vicinity of equipment marked with the following 61000-4-3 symbol: NOTE 1 At 80MHz and 800MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
- Page 23 The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
-
Page 24: Contact Information
11. Contact information Vega Technologies Inc. No.505, Shengping Mid.Road, Yangwu, Dalang Town, 523789 Dongguan City, Guangdong Province, PEOPLE'S REPUBLIC OF CHINA Website: www.vegamedical.com MedPath GmbH Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany 0123 Made by: Approved by: 24 / 24...
