Cotech YSL20F-1201670 Quick Start Manual

12 V LED driver
Art. no. 36-8573 Model YSL20F-1201670
Please read the entire instruction manual before using
the product and then keep it for future reference. We
accept no liability for any errors in the text or images
and reserve the right to make any necessary changes to
technical data. If you have technical problems or other
questions, please contact our customer service team.
Safety
• Make sure that the electricity is switched off before
installing or servicing the product.
• The product must never be dismantled or modified in
any way. The warranty is no longer valid if the product
has been modified.
• Clas Ohlson cannot be held responsible for anything
that happens as a result of the product having been
modified in any way.
• The product is intended for fixed installation. The
product must be installed only by a qualified electrician.
• This product is intended for indoor use only.
• The product is designed only for 12 V lighting, max 20 W.
Description
The LED driver replaces an old transformer and converts
230 V to 12 V. Ensures the correct voltage is supplied to
LED lighting such as spotlights, striplights or other LED
lights that run on a 12 V DC supply. Fitted with short
circuit, overload and overheating protection.

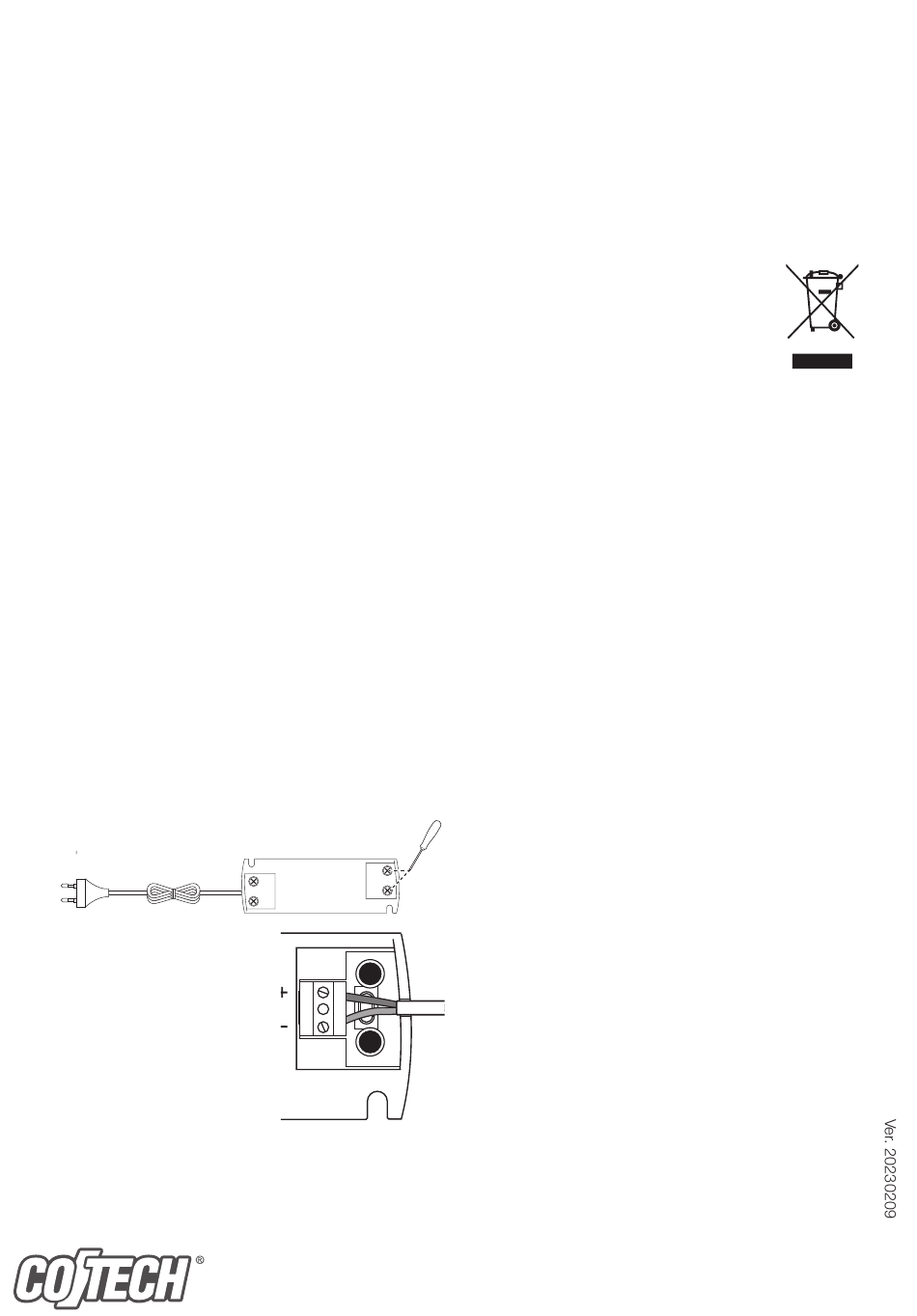

Installation
1. Undo the screws holding the lid in place with a
flat screwdriver.
2. Connect the wires to
the terminal block.
Use an insulated cable
with a maximum size of
2 × 0.75 mm².
3. Remember that 12 V LED
lights are often polarity-
sensitive. This means that:
The positive and negative
wires must be connected
correctly, otherwise
the light will not work.
4. Screw the lid back on. Check that the cable sheath
is clamped in place by the lid/strain relief.
Care and maintenance
• Switch the power off before cleaning.
• Wipe the product using a soft damp cloth.
Use a mild detergent.
Never use solvents or abrasive cleaning agents.
These could damage the product.
Responsible disposal
This symbol indicates that the product
should not be disposed of with general
household waste. This applies throughout
the entire EU. To prevent any harm to
the environment or health hazards caused
by incorrect waste disposal, the product
must be handed in for recycling so that
the materials can be disposed of in a responsible way.
To recycle the product, take it to your local recycling
facility or contact the retailer. They will ensure that
the product is disposed of in a way that does not harm
the environment.
Specifications
Input voltage 220–240 V AC, 50/60 Hz
Output voltage 12 V DC (min. 11.4 V DC
max. 12.6 V DC)
Maximum current 1.66 A
Maximum load 20 W
82 %
Efficiency
Operating
−20 to 45ºC
temperature
Protection Fitted with short circuit, overload
and overheating protection.
Ingress protection: IP20
Dimensions 102 × 35 × 16 mm
Cable 2 m (2 x 0.75 mm²) with europlug
