TP-Link TL-PA251 Quick Installation Manual

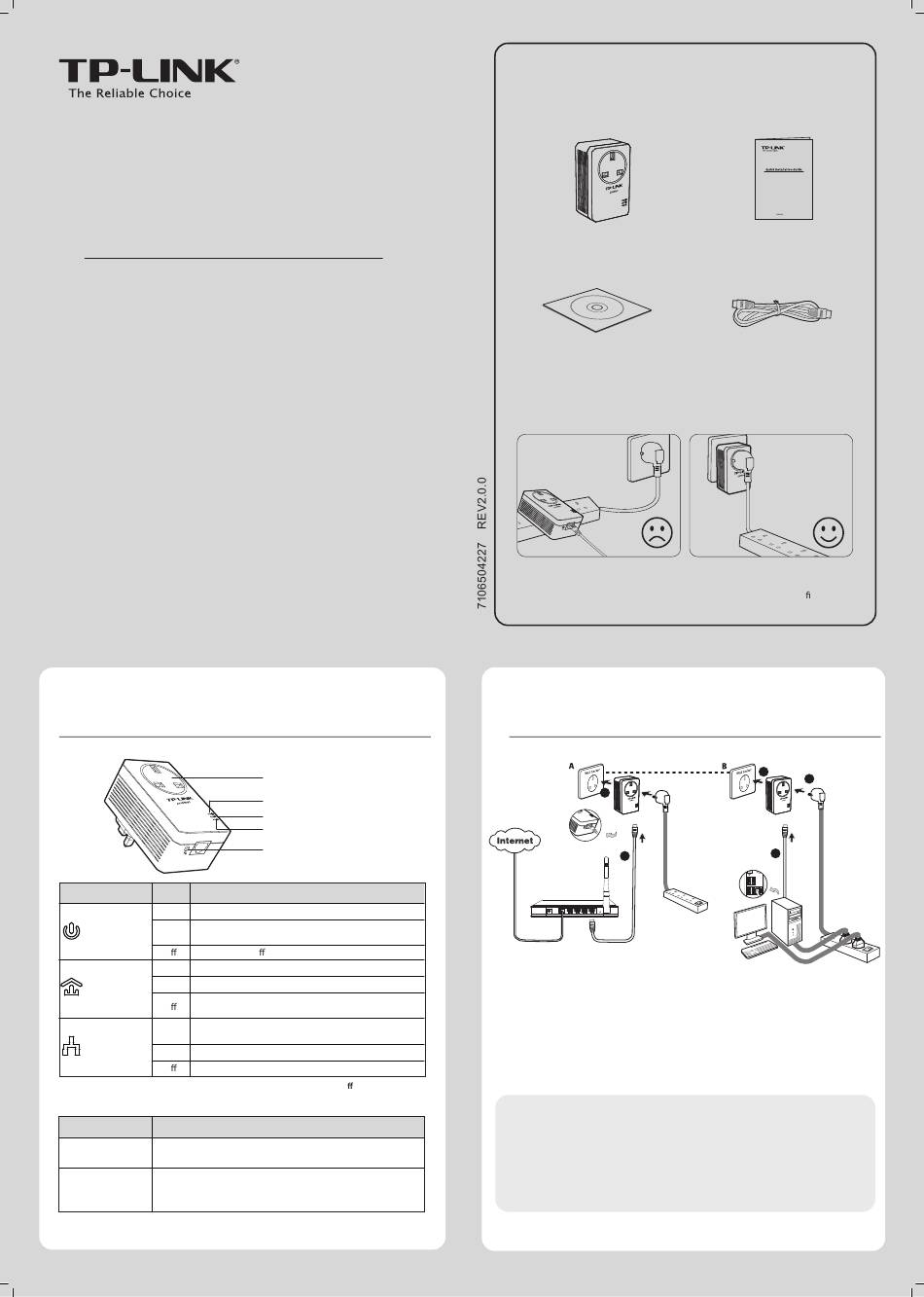

Quick Installation Guide
AV200 Powerline Adapter with AC Pass Through
MODEL NO.
1
LED and Button Descriptions
Item Status
Solid The adapter is on.
The adapter is in power-saving mode or in pairing
Power LED Blinking
procedure.
O The adapter is o .
Solid The adapter is connected to a powerline network.
Blinking The adapter is transferring data.
Powerline LED
The adapter isn't connected to any powerline network
O
or is in power-saving mode. *
The Ethernet port is connected, but there is no data
Solid
being transferred.
Ethernet LED
Blinking The Ethernet port is transferring data.
O The Ethernet port isn't connected.
* Five minutes after the device connected to the adapter is turned o , the adapter will
automatically switch to power-saving mode.
Item
Pair button is used to secure a powerline network. To secure
Pair Button
your network, please refer to Appendix: Using the Pair Button.
The integrated electrical socket allows additional devices or
Integrated
multiple sockets to be connected to the adapter just like to a
Electrical Socket
normal wall socket. No electrical socket is lost.

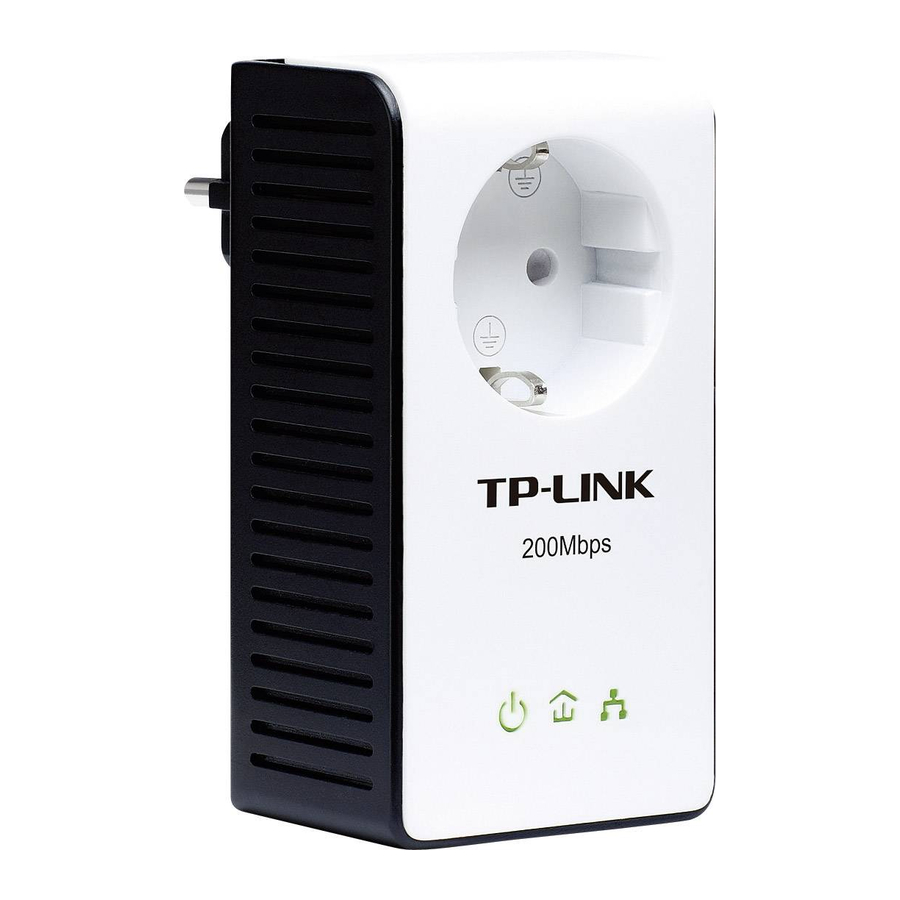

TL-PA251
Integrated Electrical Socket
Power LED
Powerline LED
Ethernet LED
Pair Button
Description
Description
Package Contents
Powerline Adapter
Resource CD
Warning on Final Location
NOTE: It's strongly recommended that you plug the adapter directly into the
wall socket, for some power strips have surge protector which can lter data.
2
Network Installation
2
1
Power LINE 1 2 3 4
TP-LINK powerline adapters are Plug and Play. After taking the steps above,
you can surf the Internet.
To add another adapter
Plug an additional adapter into the wall socket, and the connection will be
established automatically within 60 seconds.
NOTE:
1. To surf the Internet, please make sure that your network is properly
connected to the Internet.
2. If the adapters fail to automatically link to each other, you can
establish a private network by using the pair button. To set up a
private network, please go to Appendix Using the Pair Button for
detailed instructions.
AV200 Powerline Adapter with AC Pass Through
TL-PA251
QIG
Ethernet Cable
5
4
3
