Summary of Contents for Ava bqt YD30M COBALT-mini

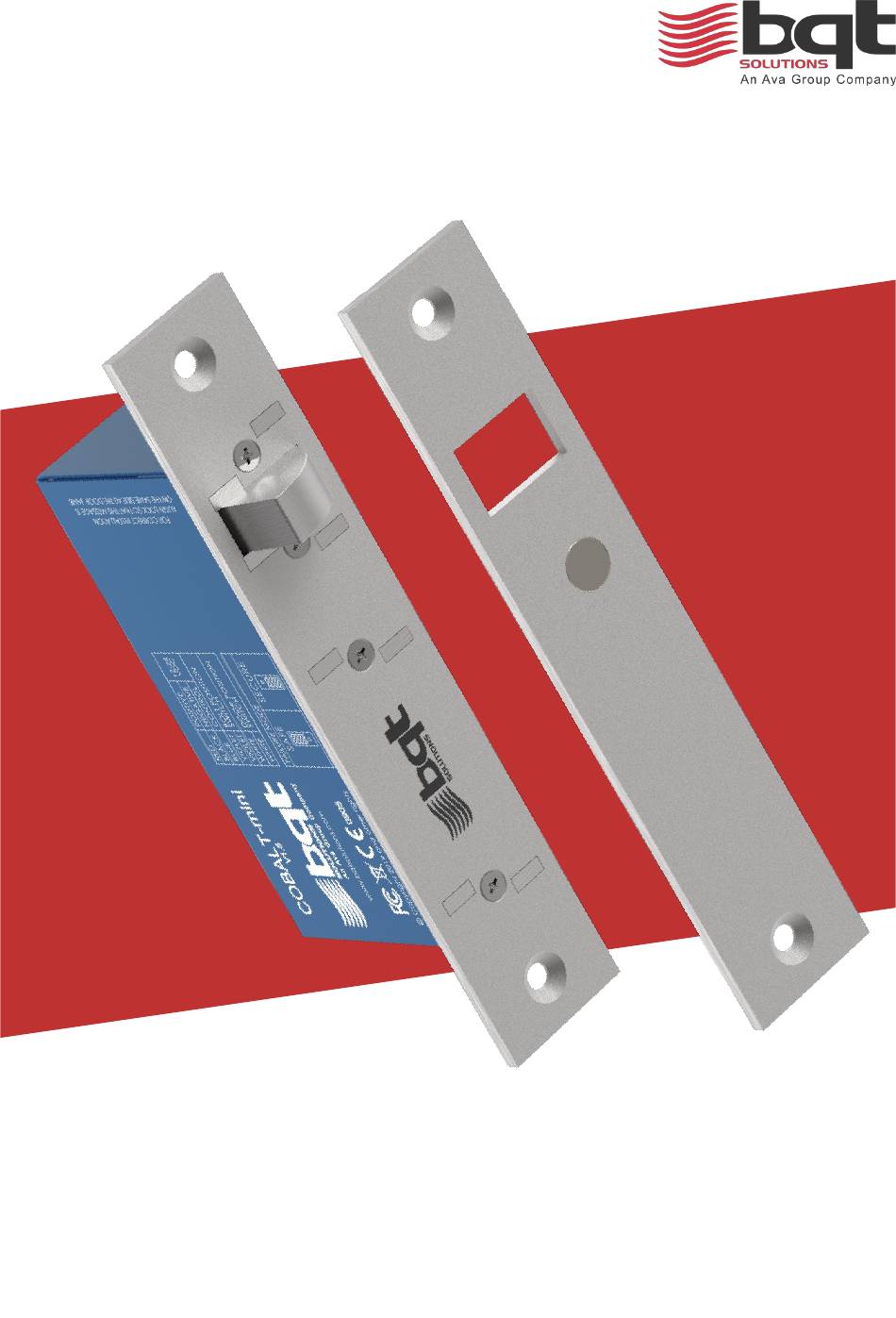

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS YD30M COBALT-mini Sideload Lock V1.5...
- Page 2 NOTICES Please ensure you read all instructions! WARNING - Live parts inside. WARNING - The handling and installation of this device is recommended for a professional. WARNING - Use of an unsuitable power supply unit may cause product failure or injury. ...
-
Page 3: Table Of Contents
CONTENTS 1. DESCRIPTION ................................. 4 2. PRODUCT UNBOXED ............................4 3. DIMENSIONS ................................5 3.1. L ................................... 5 3.2. S ..............................5 TRIKE LATE 3.3. F ................................ 5 ITTING 3.4. H ................................5 OUSING 3.5. D ..............................5 RESS LATE 4. -
Page 4: Description
1. DESCRIPTION The Cobalt-mini is a motor driven low voltage electric lock designed to secure commercial and residential doors. It is supplied with a matching strike plate and due to its small size it is perfect for installing into a mortise for a concealed solution. -
Page 5: Dimensions
3. DIMENSIONS The dimensions shown (in millimetres) are approximate and are subject to change without prior notice. 3.1. Lock 3.2. Strike Plate 3.3. Fitting Tab 3.4. Housing Available separately 3.5. Dress Plate Available separately Page 5... -
Page 6: Pre-Installation Assessment
4. PRE-INSTALLATION ASSESSMENT Care should be taken to refer to Section 9 - Maintenance and Inspection before proceeding with the installation. 4.1. Mechanical The Cobalt-mini is designed for mortise installations as this offers a discrete solution as the lock and strike plate can be embedded into the door and frame. -
Page 7: Installation
5. INSTALLATION Two installation examples are detailed on the following pages; mortise and surface, however any combination of the two can be achieved. Whichever installation method is chosen it is vital to ensure that the lock face plate and the strike plate align correctly and the gap between the lock face plate and strike plate does not exceed 7mm when the door is closed. -
Page 8: Surface Installation
Checking the operation 5.1.4. With the lock and strike installed and wiring complete the door is closed to check the alignment and operation. The key area for alignment is the bolt Clearance pin; the pin is designed to touch the leading edge of Bolt pin the strike plate hole to pull the door in, but it cannot be allowed to touch the sides of the hole as this will... - Page 9 Fitting the lock into the housing 5.2.3. The jumper next to the connector on the lock needs to be positioned for fail safe or fail secure configuration as per the directions on the lock cover. The 7-way wire loom should be attached to the wiring protruding from the housing and plugged into the lock.
-
Page 10: Wiring
6. WIRING The Cobalt-mini is supplied with a 7-way wire loom that plugs directly into the lock. The wires are colour coded with the three Power wires being essential connections and four Position Switch connections optional. Control of the lock is achieved by using the three power wires, whilst door and bolt position monitoring are available when desired. -
Page 11: Jumper Position
6.3. Jumper position The fail mode of the Cobalt-mini is factory set as Fail Safe, i.e. in the event of a power cut the Cobalt-mini will unlock. Before the lock is installed this can be changed to Fail Secure by repositioning the jumper located next to the 7-way plug on the end of the lock. -
Page 12: Specifications
8. SPECIFICATIONS MATERIALS Bolt Pin Stainless Steel (SS17-4PH), 10mm Thick, 13mm Extension Lock / Strike Plate Stainless Steel (SS304), 3mm Thick MECHANICAL Cycle Life 300,000 normal operations Maximum Strike Gap Holding Force 10,000 newtons (1,000kg) Side Load Release 1,000 newtons (100kg) Door Misalignment ELECTRICAL 12 –...
