- Page 1 ANTIGRA VITY BA TTERIES MICRO-ST ART XP-20/XP-20-HD USER MANUAL...
-
Page 2: Table Of Contents
XP-20/HD USER MANUAL CONTENTS: WELCOME Page 1 SAFETY PRECAUTIONS Page 2 PRODUCT OVERVIEW Page 3 KIT ITEMS Page 4 PRODUCT SPECS PRODUCT USE Page 5 CHARGING THE XP-20 CHARGING DEVICES Page 6 JUMP-STARTING VEHICLES Page 7 USING BYPASS BUTTON TROUBLESHOOTING Page 8 WARRANTY Page 10... -
Page 3: Welcome

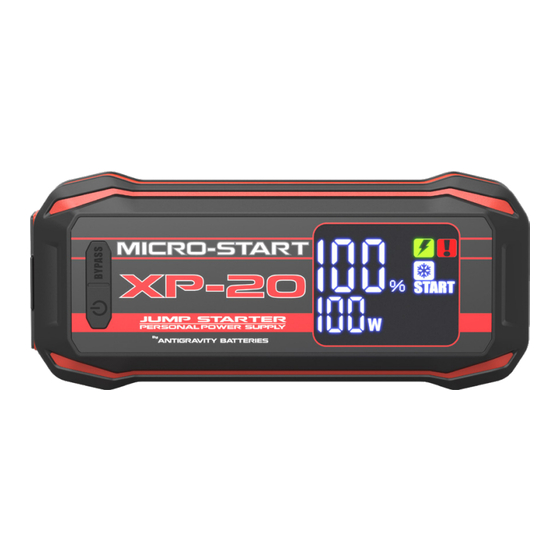

Welcome THANK YOU Thank you for purchasing the Antigravity Batteries MICRO-START XP-20. The XP-20 is an ultra compact Jump-Starter and Personal Power Supply. Just charge it and take Portable Power with you wherever you go, no electricity needed. It can jump-start your vehicles, and power or charge USB Devices and 12v Accessories. It comes as a complete kit with Carry Case. -
Page 4: Safety Precautions
XP-20/HD USER MANUAL Safety Precautions SAFETY PRECAUTIONS READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN ELECTRICAL SHOCK, EXPLOSION, FIRE, WHICH MAY RESULT IN SERIOUS INJURY, DEATH OR PROPERTY DAMAGE. Do not leave the product in, or expose product to extremely high temperatures such as on dashboards or other extremely hot areas above 110°F (43°C). -
Page 5: Product Overview
XP-20/HD USER MANUAL Product Overview POWER BUTTON WATER RESISTANT & DUST TIGHT Do not submerge! BYPASS BUTTON JUMP-START PORT DISPLAY SCREEN PORT DUST COVER USB-C IN/OUT (PD100W M LED FLASHLIGHT DC OUT (15V/10A, USB1 OUT (QC3.0, 5V/9V/12V) Max 150W) USB2 OUT (5V/2.4A) ANTIGRA VITY BA TTERIES 310 527 2330 INFO@ANTIGRAVITYBATTERIES.COM... -
Page 6: Kit Items
XP-20/HD USER MANUAL Kit Contents xP-20 POWER SUPPLY JUMPER CLAMPS CARRY CASE USB-C USB-C USB-A USB-C SC100W CIG LIGHTER CABLE CABLE CAR CHARGER CHARGER Specifications XP-20 CAPACITY: 20,000mAh (74Wh) XP-20-HD CAPACITY: 24,000mAh (88.8Wh) XP-20 STARTING CURRENT: 800A (3s) XP-20-HD STARTING CURRENT: 930A (3s) XP-20 PEAK CURRENT: 4000A XP-20-HD PEAK CURRENT: 4650A PRODUCT DIMENSIONS (LWH): 9.4 x 4 x 1.9 inches (238*103*49mm) -
Page 7: Product Use
XP-20/HD USER MANUAL Product Use POWER ON/OFF Press the Power Button for 1-2s to turn on the XP-20. It will automatically turn off when not powering anything. Press the Power Button for about 10s to force a shutdown of the XP-20. DIGIT AL DISPLA Y SCREEN Battery Power Percentage of charge/standby/discharge Low Current Mode:... -
Page 8: Charging Devices
CHARGING 12V ACCESSORIES (15V OUT: 12-16.8V, 150W Max) The XP-20 has a 15V/10A DC Output Port that can charge many other devices such as your 12V accessories normally powered by a cigarette lighter socket. Antigravity Batteries has included this DC to Female Cigarette Lighter Port Adapter. -
Page 9: Jump-Starting Vehicles
XP-20/HD USER MANUAL JUMP-ST ARTING A VEHICLE Caution should always be used when Jump Starting. READ ALL SAFETY INSTRUCTIONS. Make sure all the Vehicle’s Lights, Radios, Air Conditioning and Accessories are turned off. Confirm you are connecting to a 12-Volt Battery System. Connect the Clamps to the Vehicle Battery: Red Clamp to Positive (+) Terminal of Battery, Black Clamp to Negative (-) Terminal. -
Page 10: Troubleshooting
Too many starts within 10 minutes mode will disappear after 10 minutes Stop using and contact support at “4” + Beeping Internal circuit abnormality Antigravity Batteries Internal battery temperature is lower Outputs can work normally. No input: than 30°F Raise to 32°F before charging! If the problem persists, stop using the jump-starter. - Page 11 XP-20/HD USER MANUAL THE XP-20 ISN'T ST ARTING A VEHICLE WITH A VERY DEAD BA TTERY? IF a vehicle’s battery is below 4v the XP-20’s protections system will prevent the use of Jump Starting. In this case you will have to MAKE CERTAIN the Polarity Connection of the Clamps on the Vehicle’s Battery is Correct (Red Clamps to POSITIVE, Black Clamp to NEGATIVE of the Vehicle’s Battery.
-
Page 12: Warranty
18 months from the date of purchase (the “Warranty Period”). Visit our website for full Warranty terms and to Register your MICRO-START XP-20. The Warranty is not Transferable. The Warranty is made to the original purchaser from ANTIGRAVITY BATTERIES and “Authorized Resellers” and does NOT extend to any other persons or entities. -
Page 13: Customer Service
XP-20/HD USER MANUAL Customer Service 18 Months Limited Warranty Service Lifetime Technical Support info@antigravitybatteries.com antigravitybatteries https://antigravitybatteries.com/help-center/ 310-527-2330 Mon-Fri PST 7:30am-4pm Live Chat with Our Techs Attention Be sure to follow all Safety Precautions and Operating Precautions found in the beginning of this manual. Do Not Submerge In Water Do Not Disassemble Do Not Drop...
