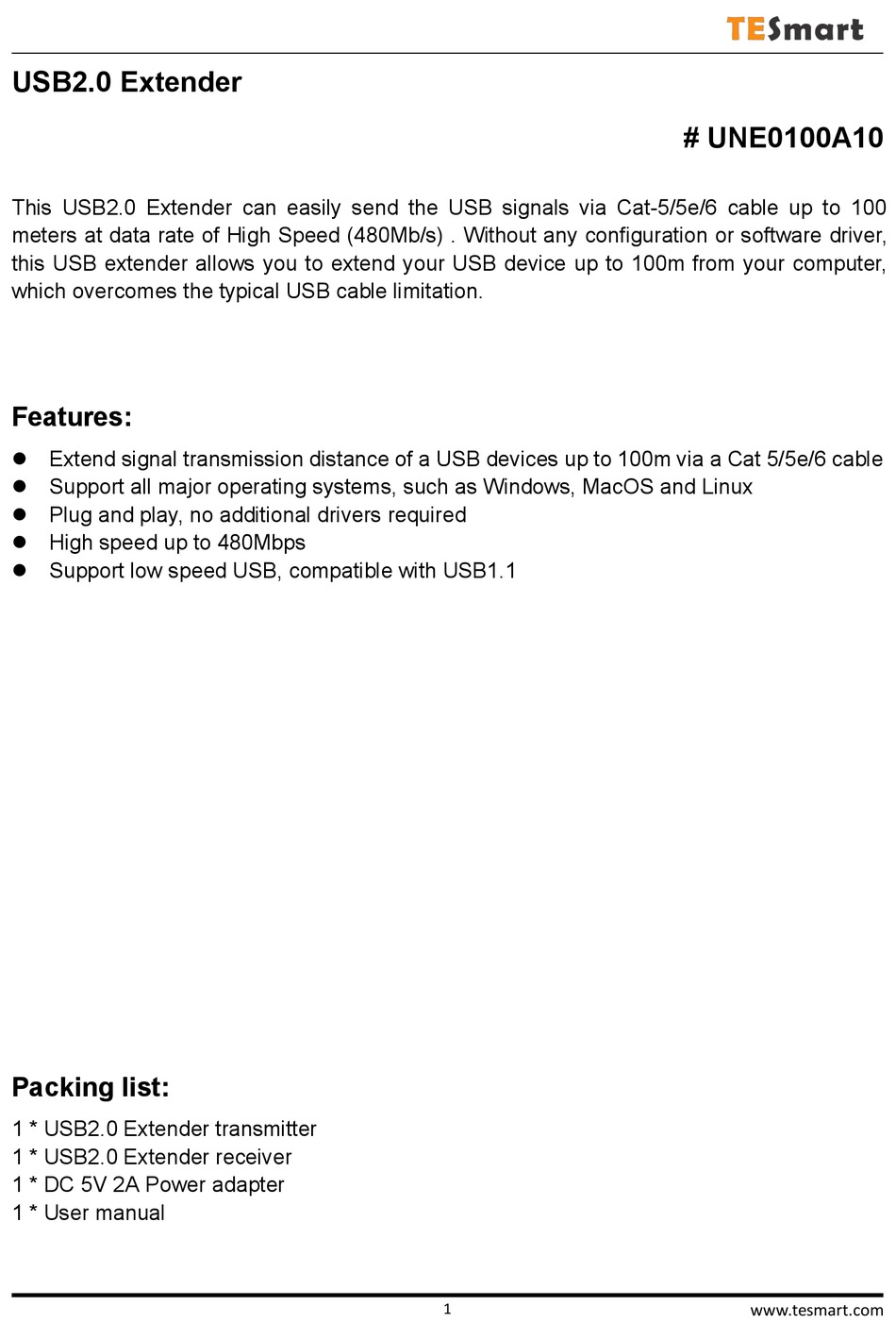

USB2.0 Extender
# UNE0100A10
This USB2.0 Extender can easily send the USB signals via Cat-5/5e/6 cable up to 100
meters at data rate of High Speed (480Mb/s) . Without any configuration or software driver,
this USB extender allows you to extend your USB device up to 100m from your computer,
which overcomes the typical USB cable limitation.
Features:
Extend signal transmission distance of a USB devices up to 100m via a Cat 5/5e/6 cable
Support all major operating systems, such as Windows, MacOS and Linux
Plug and play, no additional drivers required
High speed up to 480Mbps
Support low speed USB, compatible with USB1.1
Packing list:
1 * USB2.0 Extender transmitter
1 * USB2.0 Extender receiver
1 * DC 5V 2A Power adapter
1 * User manual
1
www.tesmart.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TESmart UNE0100A10
Summary of Contents for TESmart UNE0100A10
- Page 1 USB2.0 Extender # UNE0100A10 This USB2.0 Extender can easily send the USB signals via Cat-5/5e/6 cable up to 100 meters at data rate of High Speed (480Mb/s) . Without any configuration or software driver, this USB extender allows you to extend your USB device up to 100m from your computer, which overcomes the typical USB cable limitation.
- Page 2 Connect a Cat 5/5e/6 cable between this port and the UTP input RJ45 connector port on the sending unit The LED will be active once receiver is connected 5V Power status DC power supply USB input Connect the USB source to this output www.tesmart.com...
- Page 3 Connection Diagram: www.tesmart.com...
- Page 4 Specification UNE0100A10 USB2.0 Extender Technical Transmission distance 100M Data rate 480Mbps ESD protection Human body model - ±8kV (Air-gap discharge) 1* USB Type A Transmitter 1* RJ45 1* RJ45 Receiver 1* USB Type A Mechanical Chasing material Aluminum Alloy RX: 60 (W) x 48 (D) x 24 (H) mm...
