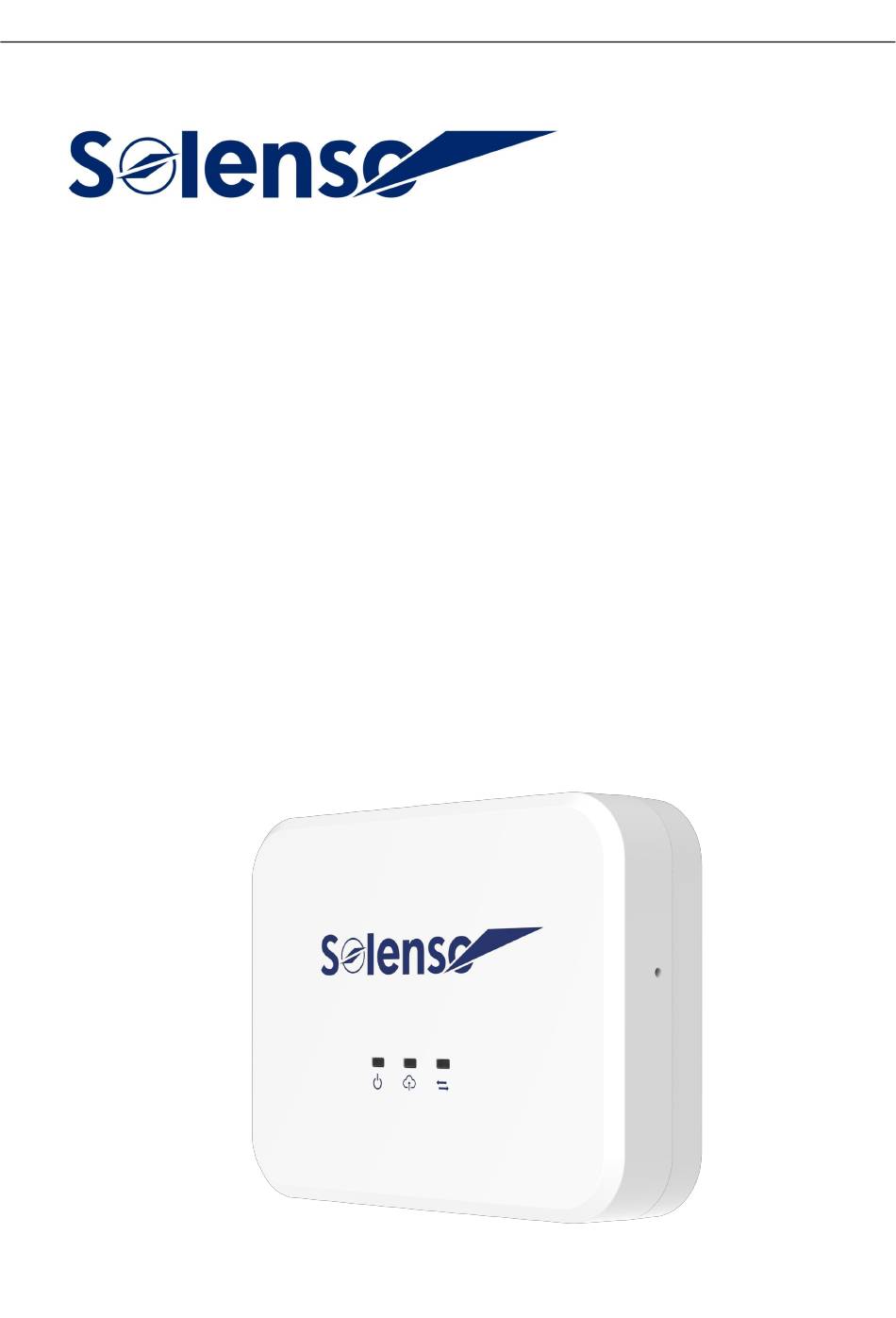

- Page 1 DTU SLT User Manual...
- Page 2 SLT under the guide of this document. Other Information Product information is subject to change without notice. User manual will be updated frequently, please refer to Solenso official website at https://www.solenso-global.com/ for the latest version. © 2023 Solenso electronic materials Co.,LTD. All rights reserved.
- Page 3 Table of Contents 1. Terminals Introduction ........................1 2. Introduction to product software functions ................4 3. Installation ............................9 4.Technical parameters ........................10 © 2023 Solenso electronic materials Co.,LTD. All rights reserved.
-
Page 4: Terminals Introduction
Specific functions of each port see Section 1.3 and Section 1.5. 1.2 Communication mode Adopt the 2.4G wireless scheme with the SLT communication; Adopt the network cable and Wi-Fi coexistence scheme for the communication with the monitoring platform. © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`... - Page 5 AP：This button is used to switch between AP and STA modes. When DTU use WiFi router communicate to Solenso cloud please use AP mode, when use DTU use a 4G SIM card communicate to Solenso cloud please use STA mode.
- Page 6 SLT and microinverter communication （green） Often bright Communication is normal Light flash 0.5s+0.5s There are microinverter not on the communication Light flash1s+1s All microinverter are not communicated on Light flash1.5s SLT unconfigured microinverter ID © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`...
-
Page 7: Introduction To Product Software Functions
DTU serial number) . 2、Use the mobile phone to open the installer APP Sofia Pro and log in. Enter the "Operation and Maintenance Center" at the bottom of the page. © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`... - Page 8 SLT network port. Use the mobile phone to open the installation terminal APP and log in, enter the "Operation and Maintenance Center" at the bottom of the page, and then enter the "Network Configuration", and select "Ethernet" © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`...
- Page 9 6、Click on“Send to DTU" and waiting for the "Connection Succeeded" tips. 2.2 Microinverter data and information upload At the data level, the data is uploaded in units of micro-inverse. 1、Network disconnection storage data for a week； © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`...
- Page 10 2.3 Monitoring system 1、Login 1）Apply for account number For distributors, you can contact the Solenso team to create an account; For installers, you can contact the distributors to create an account; For individuals, you can contact the installer to create an account.
- Page 11 Installer APP Sofia Pro Installer APP Sofia Android Android 6、setting 1）Zero export setting Select Enable Export Management, if open the Anti-counter current, select power grid mode, select electricity meter position. 2）Power station setting © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`...
-
Page 12: Installation
1. When installing a SLT with a wall-mounted bracket, select a cool, dry indoor position, fit the wall installed by the SLT, using two gypsum board screws or wall anchors, align and slide the SLT to the mounting screw. © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`... -
Page 13: Technical Parameters
4 .The picture below indicates the RS485 A Port and B Port on SLT. 4.Technical parameters Model Communication to Microinverter Type Wireless_2.4G Maximum distance (open space) 200m Max. number of connected microinverter Communication to Cloud Signal Wi-Fi(802.11b/g/n) /Ethernet © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`... - Page 14 -20°C to 50°C Dimensions(W×H×D mm) 114×87×28.5 Weight 0.20 kg Installation options Wall mounting / Desktop mounting Features Compliance *1 Depending on the installation environment, please refer to user manual for more details. © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`...
- Page 15 *2 If the SLT installation location is inside the metal box or under the metal/concrete roof, extended antenna will be suggested. © 2023 Solenso electronic materials Co.,LTD. All rights reserved.`...
