Summary of Contents for Focus F640

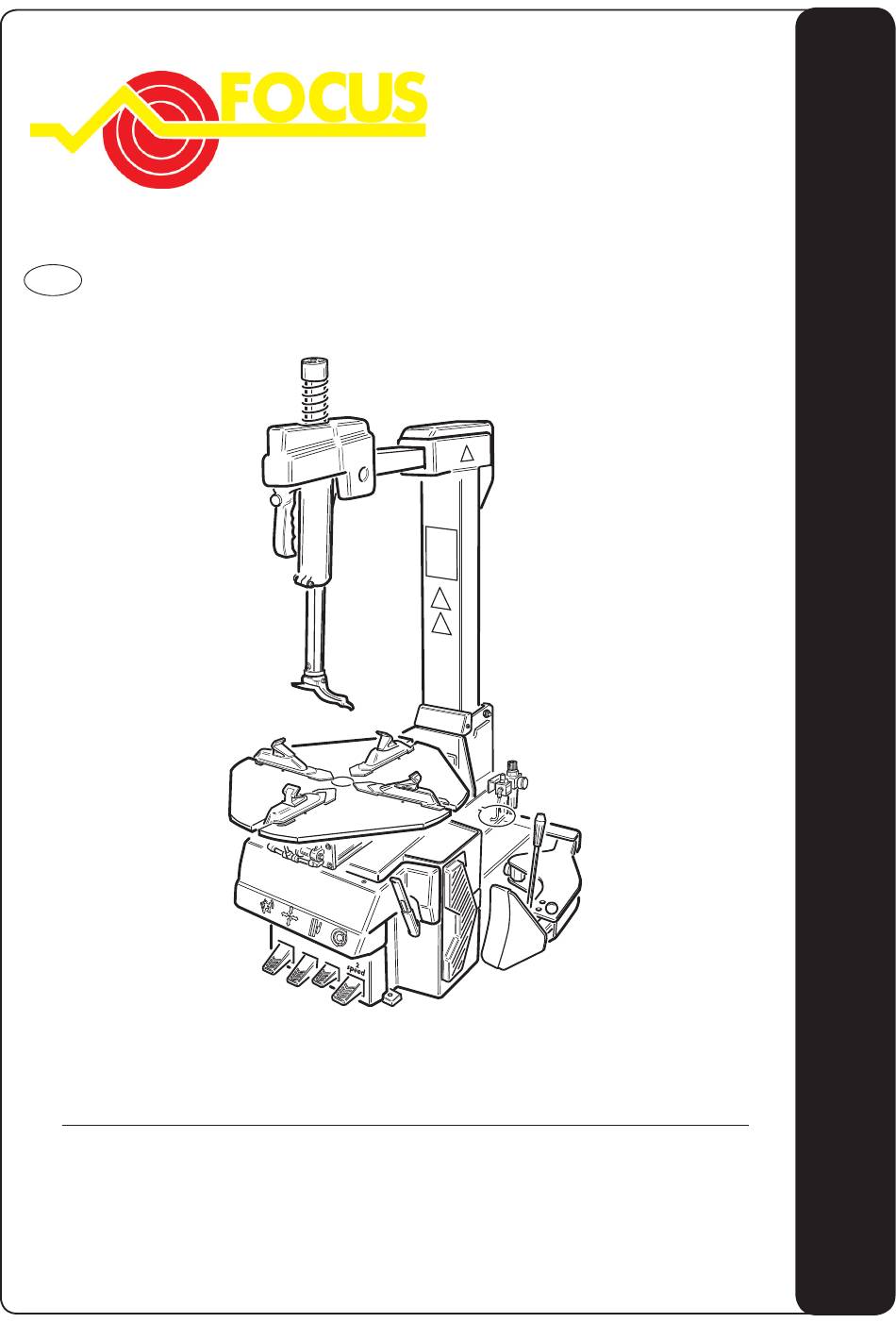

  • Page 1 User’s manual F640 The Manufacturer declines all liability for any damage to people or property caused by incorrect use of this product. Subject to change without prior notice.
  • Page 2 (including English microfilm and photocopies) are reserved. The information in this manual is subject to variation without notice. Elaborazione grafica e impaginazione fficio ubblicazioni ecniche User’s manual - F640...

  • Page 3: Table Of Contents

    MAINTENANCE .................... 23 ENVIRONMENTAL INFORMATION .............. 24 INFORMATION AND WARNINGS ABOUT OIL ..........26 RECOMMENDED FIRE-EXTINGUISHING DEVICES ........26 GLOSSARY ....................27 TROUBLE SHOOTING ................. 27 ELECTRICAL SYSTEM DIAGRAM ............... 29 PNEUMATIC SYSTEM DIAGRAM ..............32 User’s manual - F640...

  • Page 4: Introduction

    Do not attempt to perform operations unless properly qualified and with suitable experience. In case of need, contact an authorized Service Centre for assistance. User’s manual - F640...

  • Page 5: Transport, Storage And Handling

    Failure to follow these recommendations may result in damage to the machine and put the operator’s safety at risk. Before moving the machine, refer to the HOISTING/HANDLING section. User’s manual - F640...

  • Page 6: Unpacking/Assembly

    The installation site must be chosen in strict compliance with the relevant regulations regarding Safety in the workplace. IMPORTANT: for correct, safe use of the equipment, users must ensure a lighting level of at least 300 lux in the place of use. User’s manual - F640...

  • Page 7: Electrical And Pneumatic Connections

    Before connecting the air supply system, make sure the machine is set up as in fig. 4: pedal 3 and 4 totally downwards, column forward. - The electrical supply must be suitably sized in relation to: • the machine input power as specified in the corresponding machine data plate; User’s manual - F640...
  • Page 8 The customer must provide an air cut-off valve upstream of the air treatment and regulating device supplied with the machine. WARNING Connection 1 should be considered as an emergency valve to disconnect the machine from the air line (fi g.6) User’s manual - F640...

  • Page 9: Safety Regulations

    - User must wear personal protective equipment such as gloves, safety footwear and goggles. WARNING When operating or servicing the equipment, tie back long hair and do not wear loose-fitting clothes, ties, necklaces, rings or wristwatches which could become entrapped by moving parts. User’s manual - F640...

  • Page 10: Description

    TECO s.r.l. Via Pio La Torre 10 Ser. N. 42015 Correggio (R.E.) - ITALY tel. 0522/631562 - fax 0522/642373 Volt Year Weight Amp. WARNING It is forbidden to modify or remove the data in the plate. User’s manual - F640...

  • Page 11: Technical Data

    The permitted exposure levels may also vary according to the country. However, this information will enable machine users to make a more accurate assessment of hazard and risks. User’s manual - F640...

  • Page 12: Standard Accessories

    Keep hands well away from machine moving parts. WARNING To stop the machine in an emergency: - disconnect the power supply plug; - isolate the compressed air supply network by disconnecting the (quick-coupling) shut-off valve (fig. 6). User’s manual - F640...

  • Page 13: Main Operating Parts

    11 Filter Regulator + Lubricator Unit (regulates pressure, filters, removes humidity of and lubricates the compressed air supplied) 12 Wheel support 13 Bead breaker blade 14 Tyre lever 21 Locking button: A) working arm ascent; B) working arm descent; C) locked User’s manual - F640...
  • Page 14 User’s manual - F640...

  • Page 15: Warning Signals

    BODY BETWEEN THE BEAD BREAKER AND THE 000102800 WHEEL. 000103200 INFLATING GUN CONNECTION. DO NOT DIRECTLY CONNECT THE COMPRESSOR. DANGER OF CRUSHING PARTS OF THE (only on standard version) BODY BETWEEN THE BEAD BREAKER ARM AND THE MACHINE. 000102700 000103300 User’s manual - F640...

  • Page 16: Practical Hints

    B. On these wheels the bead must first be broken in correspondence with the valve hole, on both the top and bottom sides of the wheel. Wheels with low pressure indicator system - fig.10-D. User’s manual - F640...

  • Page 17: Use

    Place the wheel on the turntable, push it lightly down and act on the control pedal to lock the wheel in its proper position (fig. 15). User’s manual - F640...
  • Page 18 Press the locking button in position C to contemporarily lock vertical and horizontal arms. In this case the tool will be automatically positioned at a security distance from the rim edge. - Make the head go down on the rim (push button 18). User’s manual - F640...

  • Page 19: Demontage

    - Rotate the wheel through one turn and at the same time press down with a hand on the side of the tyre opposite to the mounting head, in order to position the bead in the central groove of the rim. User’s manual - F640...

  • Page 20: Montage

    - Place the bottom bead of the tyre underneath the tool and at the same time apply a little pressure to the tyre by hand while starting to rotate the wheel (pedal 1) for easier bead insertion. - Rotate until tyre mounting is complete. User’s manual - F640...

  • Page 21: Inflation

    DANGER Although the machine limits the pressure, it does not provide sufficient protection if the tyre bursts during inflation. Failure to comply with the instructions below will render tyre inflation dangerous. User’s manual - F640...
  • Page 22 - Lock the horizontal and vertical arms in the positions described on Fig.2.4. - Connect the Doyfe inflation chuck (32) on the air hose to the valve stem. - Inflate the tyre by using the inflaction gun User’s manual - F640...

  • Page 23: Maintenance

    Before proceeding with any adjustment or maintenance activity, disconnect the machine from the air supply and electrically insulate the machine by means of an omnipolar disconnection device. Make sure that all the mobile parts are locked. User’s manual - F640...
  • Page 24 Keep the working area clean. Never use compressed air, jets of water or solvent to remove dirt or deposits off the machine. When cleaning, take care not to create and raise dust as far as possible. User’s manual - F640...

  • Page 25: Environmental Information

    Furthermore this helps to recover, recycle and reuse many of the materials used in these products. User’s manual - F640...

  • Page 26: Information And Warnings About Oil

    - Inhalation: in case of exposure to high concentrations of fumes or mists, take the affected person to the open air and seek medical attention immediately. - Eyes: rinse with plenty of running water and seek medical attention as soon as possible. - Skin: wash with soap and water. User’s manual - F640...

  • Page 27: Glossary

    - Replace the inverter (skilled staff needed in this case). Motor shorted. - Replace the motor (skilled staff needed in this case). Belt broken. - Replace belt. Rotation control pedal fails to return to central position Control spring broken. • Replace the control spring. User’s manual - F640...
  • Page 28 Vertical and horizontal limit stops do not operate No air passing through clamping handle / valve. - Check hose circuit. - Replace handle / valve. Column does not tilt Column tilting cylinder faulty. - Replace column opening cylinder. User’s manual - F640...

  • Page 29: Electrical System Diagram

    WIRING DIAGRAM fig 28 Single / two-speed motor circuit board Motor Two-speed micro-switch Micro-switch (CLOCKWISE rotation) Micro-switch (ANTICLOCKWISE rotation) Connector Mains fi lter User’s manual - F640...
  • Page 30 Versione con Motoinverter F: Fuse Power Phase Neutral 200-230V / 1 / 50-60 Hz 250V, 12A 250V, 12A U V W GRUPPO COMANDI CONTROL SWITCH R T S GRUPPO MOTORE MOTOR UNIT User’s manual - F640...
  • Page 31 CONTATTI - Contacts ELEMENTI - Elements User’s manual - F640...

  • Page 32: Pneumatic System Diagram

    CONTATTI - Contacts ELEMENTI - Elements...
  • Page 33 CONTATTI - Contacts ELEMENTI - Elements...
  • Page 34 8-16 bar MAX 10 bar SCHEMA PNEUMATICO STD Pneumatic STD Diagram MAX 11 bar 8-16 bar MAX 10 bar SCHEMA PNEUMATICO T.I. Pneumatic T.I. Diagram REF. DESCRIZIONE DESCRIPTION INNESTO RAPIDO MASCHIO QUICK UNION GRUPPO FRL WATER SEPARATOR AND PRESSURE REGUL+LUBRIFICATOR VALVOLA GONFIAGGIO RAPIDO QUICK INFLATING VALVE PISTOLETTA DI GONFIAGGIO...
