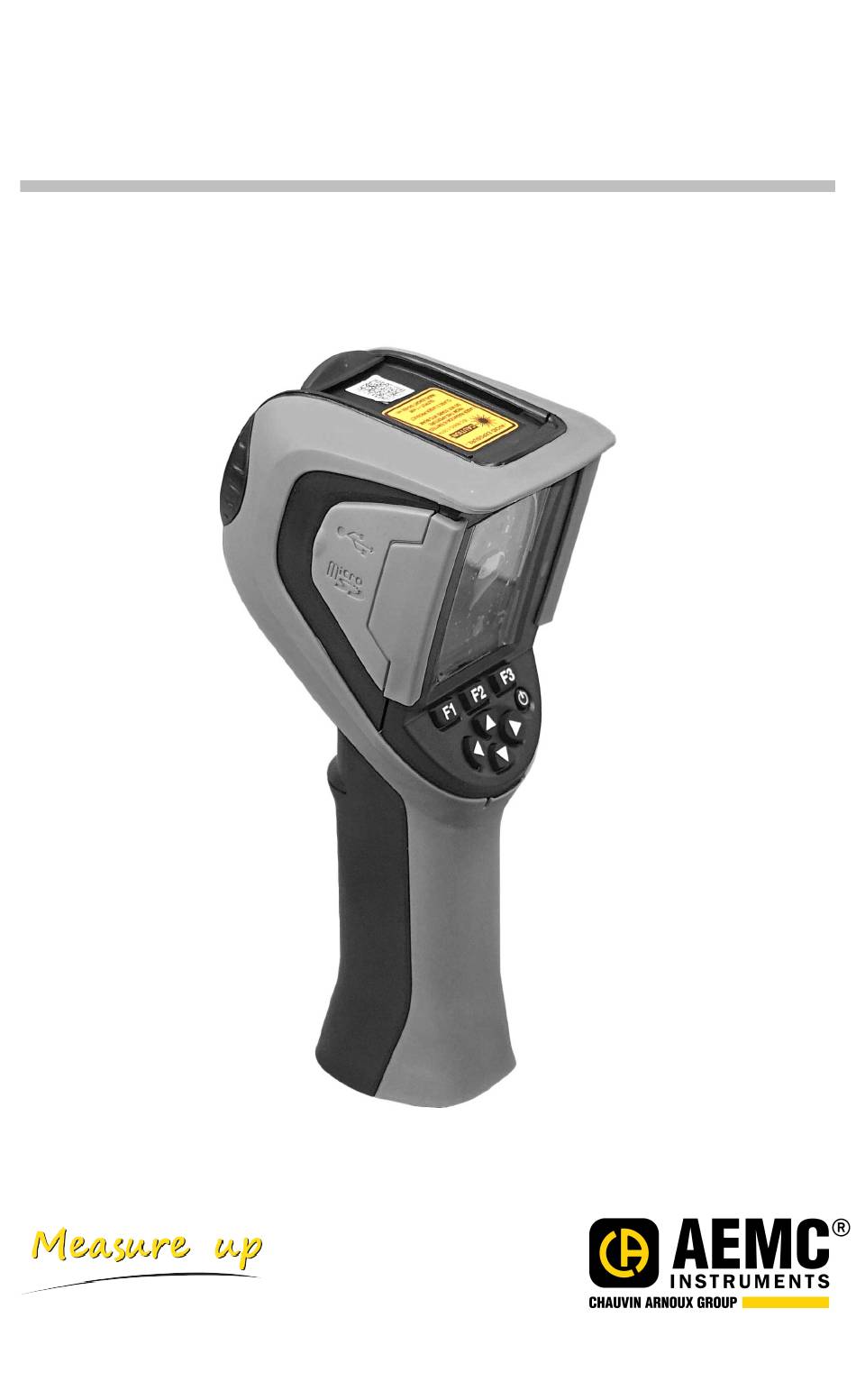

- Page 1 Thermal Imaging IR Camera Model 1954 Quick Start Guide ENGLISH www.aemc.com...
- Page 3 ATTENTION An infrared camera is a sensitive optical measuring device. Pay special attention to the following points: 1. Never aim the camera at the sun, a laser welding, or other source of powerful thermal radiation. 2. Avoid exposure to dust with the lens flap open. 3.
-
Page 4: Ordering Information
Save the damaged packing container to substantiate your claim. Ordering Information Thermal Imaging IR Camera Model 1954 ..Cat. #2121.41 Includes carrying case, external battery charger, USB cable, four NiMh rechargeable batteries, micro SD card with adaptor, Bluetooth headset, quick start guide, and a USB drive containing the user manual, CAmReport software, and software manual. -
Page 5: Quick Start Steps
1. QUICK START STEPS The following steps assume default settings: 1. Insert charged batteries in the camera (if not already installed). 2. Insert the micro SD memory card into its slot. 3. Open the flap protecting the lenses. 4. Press the ON/OFF key: ... -
Page 6: Front View
2. FRONT VIEW Lens protection flap Laser pointer Infrared camera lens Visible camera lens Multiple-function trigger... -
Page 7: Side View
3. SIDE VIEW USB connector SD card slot Rubber flap Keypad Multiple-function trigger... -
Page 8: Key Functions
4. KEY FUNCTIONS Multiple-function buttons associated with the display ON/OFF button Up/Down/Right/ Left Arrow navigation button... -
Page 9: Battery Compartment Cover
5. BATTERY COMPARTMENT COVER Tab locking the quarter- turn screw Quarter-turn screw for opening the cover ¼" camera tripod insert... - Page 10 6. DISPLAY Status bar Image Cursor Low palette temp High palette temp Measurement Temp at cursor display F1, F2, F3 Bluetooth button functions measurement Open previous Lock palette Stop acquisition menu (also locks temp min/max)
-
Page 11: Status Bar
7. STATUS BAR Battery Trigger Emissivity Acquisition mode indicator function Bluetooth Micro SD-card indicator indicator Image date/time... - Page 12 ® ® Chauvin Arnoux , Inc. d.b.a AEMC Instruments 15 Faraday Drive • Dover, NH 03820 USA www.aemc.com 99-MAN 100484 v1 06/19...
