IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is partly or fully completed unless the item is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• Wall fixings are not included.
• We recommend the use of the wall attachment strap provided for safety reasons.
• Do not use this item if any structual part is broken or missing.
PRODUCT INFORMATION
• Made from MDF with painted finish.
• Made in Poland.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed with a soft, clean, damp, cloth and dried immediately.
• Avoid keeping furniture in direct sunlight or close to a heat source as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• Assembly fixings should always be tightened properly and they should be periodically checked and tightened if
necessary.

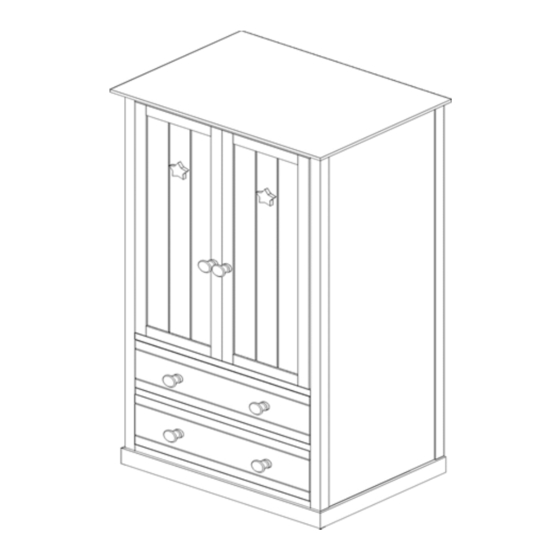

788685 HEARTS & STARS DOUBLE ROBE
ASSEMBLY INSTRUCTIONS.
Page 1 of 9
788685 double robe 01
