SPOT 9
MANUALE D'USO | USER MANUAL
850gr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPOT 9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PLG SPOT 9

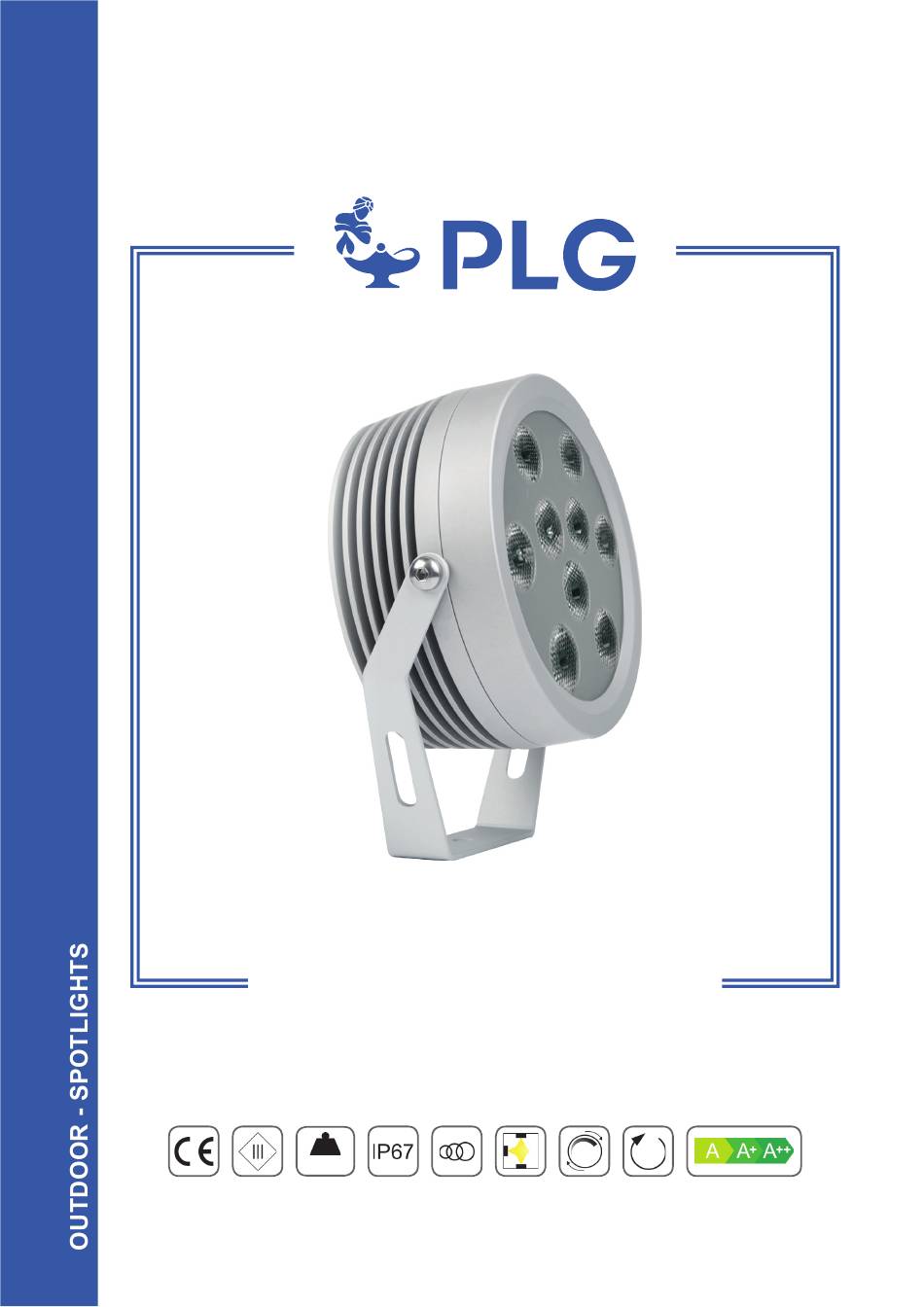

  • Page 1 SPOT 9 MANUALE D’USO | USER MANUAL 850gr...
  • Page 2 SPOT 9 MANUALE D’USO USER MANUAL ATTENZIONE WARNING Read and store following instructions Leggere e conservare le seguenti istruzioni • Prima di procedere alla installazione o alla manutenzione del • Before proceeding with the installation or maintenance of this presente dispositivo è necessario disattivare sempre l’energia device, you must always turn off...
  • Page 3 SPOT 9 MANUALE D’USO USER MANUAL DIMENSIONI DIMENSIONS DATI TECNICI | TECHNICAL DATA POTENZA MASSIMA / POWER MAX : 18W - 500mA / 27W - 700mA ( RGB ) NUMERO DI LED / LED QUANTITY : 9 power LEDs 5500 - 4000 - 3000 - 3000 CRI 90 - 2700 - AMBER - RED - GREEN - BLUE ( 18W - 500mA )
  • Page 4 SPOT 9 MANUALE D’USO USER MANUAL ACCESSORI | ACCESSORIES INSTALLAZIONE - INSTALLATION PICCHETTI INOX / INOX STAKES ESTENSIONI / EXTENSIONS CODE : PI001 - PI002 - PI003 CODE : PI004 - PI005 CINTURA PER ALBERI - TREE LIGHT BELT CINGHIE / BELTS...
  • Page 5 SPOT 9 MANUALE D’USO USER MANUAL CONNESSIONI | CONNECTIONS Schema di connessione in serie per versione 350 / 500mA - Connection diagram for 350 / 500mA version ROSSO ROSSO - NERO ROSSO ROSSO - NERO ROSSO ROSSO - NERO VERDE...
  • Page 6 SPOT 9 MANUALE D’USO USER MANUAL ISTRUZIONI DI MONTAGGIO | ASSEMBLY INSTRUCTIONS 1 - FISSAGGIO AD APPLIQUE 1 - APPLIQUES FIXING SYSTEM Rimuovere il faretto dalla staff a, svitando le due viti di supporto e rimuovendo le rondelle Remove the spot from the bracket, unscrewing the screws and removing the washers Bloccare la staff...
  • Page 7 SPOT 9 MANUALE D’USO USER MANUAL ISTRUZIONI DI MONTAGGIO | ASSEMBLY INSTRUCTIONS 1 - FISSAGGIO SU PICCHETTO 1 - FIXING ON STAKE Rimuovere il faretto dalla staff a, svitando le due viti di supporto e rimuovendo le rondelle Remove the spot from the bracket, unscrewing the screws and removing the washers Fissare la staff...
