OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK
IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING
TOOL DATA
MODEL: HCC-2
ASSEMBLY No: 6560000
TYPE: AIR/HYDRAULIC OPERATED
NET WEIGHT:
HYDRAULIC PRESSURE: 2000 P.S.I. (138 bar) MAXIMUM
INLET AIR PRESSURE: 90 P.S.I. (6-7) BARS
KENTMASTER MFG. CO., INC.
HYDRO-CLIPPER HORN SHEAR "HCC-2"
70 LBS (32 KG)
1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA
TELEPHONE: (626) 359-8888 FAX: (626) 303-5151
THIS TOOL.
REV B: 02/2/18
Page 1 of 13
Advertisement
Table of Contents
Related Manuals for KENTMASTER HCC-2
Summary of Contents for KENTMASTER HCC-2

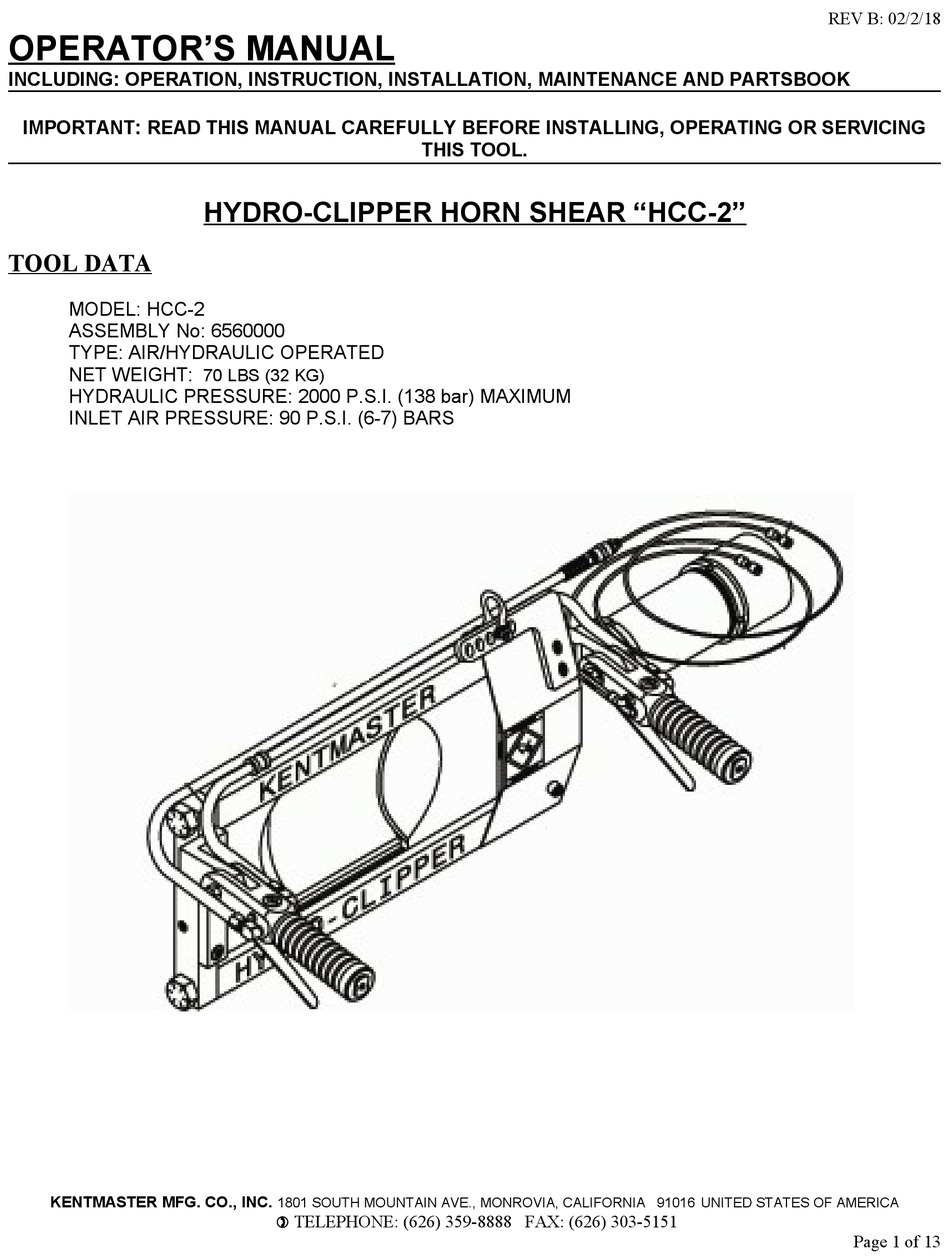

- Page 1 REV B: 02/2/18 OPERATOR’S MANUAL INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS TOOL. HYDRO-CLIPPER HORN SHEAR “HCC-2” TOOL DATA MODEL: HCC-2 ASSEMBLY No: 6560000 TYPE: AIR/HYDRAULIC OPERATED NET WEIGHT: 70 LBS (32 KG) HYDRAULIC PRESSURE: 2000 P.S.I.
-
Page 2: Operating And Safety Instructions
THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED. WARNING KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 ... -
Page 3: Maintenance
AN AIR FILTER-REGULATOR-LUBRICATOR (PART NO. 7200030) MUST BE INSTALLED IN AIR SUPPLY FOR EACH TOOL. 3. FILL LUBRICATOR WITH KENTMASTER AIR MIST OIL (PART NO. 7903050). SET DRIP RATE ACCORDING TO INSTRUCTIONS SUPPLIED. TURN ADJUSTMENT ON SIGHT FEED DOME TO INCREASE/DECREASE OIL DELIVERY. - Page 4 REV B: 02/2/18 Figure 1 MODEL “HCC-2” – MAIN ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 4 of 13...
- Page 5 REV B: 02/2/18 Heavy duty shaft option: Use parts 6560081- Shaft, 6560061 and 6560062 (CLEVIS) Figure 2 BOM FOR MODEL “HCC-2 ” KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 ...
- Page 6 8415160 SCREW 8500150 NUT 8505160 WASHER 8620080 PIN 8890010 SPRING Figure 3 AIR HANDLE KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 Page 6 of 13...
-
Page 7: Tubing Diagram
REV B: 02/2/18 TUBING DIAGRAM HCC-2 TUBING DIAGRAM WITHOUT ANTI-TIE DOWN OPTION Figure 4 HCC-2 TUBING DIAGRAM WITHOUT ANTI-TIE DOWN KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 ... - Page 8 REV B: 02/2/18 HCC-2 TUBING DIAGRAM WITH ANTI-TIE DOWN OPTION Figure 5 HCC-2 TUBING DIAGRAM WITH ANTI-TIE DOWN KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 ...
-
Page 9: General Information
REV B: 02/2/18 [ENGLISH] GENERAL INFORMATION MODEL “HCC-2” HYDRO-CLIPPER HORH SHEAR ___________________________________________________________________________ SERVICE CENTERS KENTMASTER LTD. (U.K) KENTMASTER MFG. CO., INC. 16 AVONBANK INDUSTRIAL CENTRE 1801 SOUTH MOUNTAIN AVE. WEST TOWN ROAD MONROVIA, CALIFORNIA 91016 AVONMOUTH - BRISTOL BS11 9DE... - Page 10 8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators...
- Page 11 (A) Installing or removing blade from tool. (B) Making repairs or adjustments to the tool. (C) performing maintenance or cleanup work. KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 ...
- Page 12 REV B: 02/2/18 Kentmaster Worldwide Location Kentmaster Equipment (Aust) PTY.LTD. Kentmaster South Africa (PTY) LTD. Unit 2,24 Central Court Johannesburg - S. Africa Browns Plains Qld. 4118 Unit 54 Sunnyrock Park Australia Sunrock Close, Germiston South Africa Telephone: (07) 3806-8400...
- Page 13 Figure 1 MODEL “HCC-2” – MAIN ASSEMBLY..........................4 Figure 2 BOM FOR MODEL “HCC-2”..............................5 Figure 3 AIR HANDLE.....................................6 Figure 4 HCC-2 TUBING DIAGRAM WITHOUT ANTI-TIE DOWN....................7 Figure 5 HCC-2 TUBING DIAGRAM WITH ANTI-TIE DOWN......................8 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 ...
