Adding a New Network Connection

In some cases, the Dashboard software provided by your mobile SIM provider

does not recognize your modem card. We are working with the various modem

card manufacturers and mobile ISP's to provide a satisfactory solution to this

problem, but in the interim period, it is possible to configure your Internet access

manually using the Windows New Network Wizard. The process for Windows

2000 is shown below, it is very similar in Windows XP.

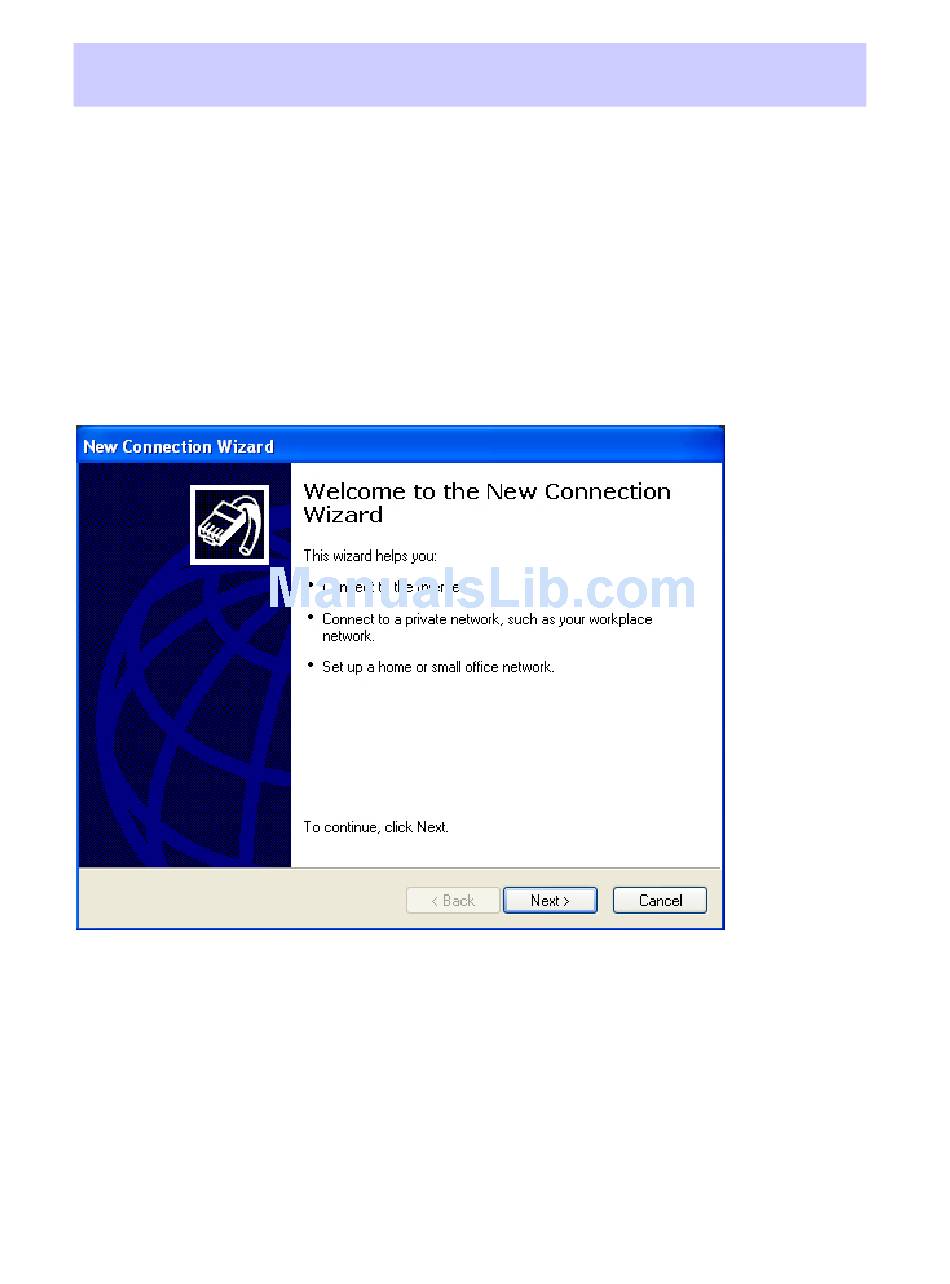

From the "Network Connection" icon in your device manager, click "File and

chose New Connection" from the drop down menu. The following dialog should

appear..., click "Next"

Need help?

Do you have a question about the PCD-X/U132-E and is the answer not in the manual?

Page 1 Adding a New Network Connection In some cases, the Dashboard software provided by your mobile SIM provider does not recognize your modem card. We are working with the various modem card manufacturers and mobile ISP's to provide a satisfactory solution to this problem, but in the interim period, it is possible to configure your Internet access manually using the Windows New Network Wizard.
Page 2 Select “Connect to the Internet” and click “Next” Select “Set up my connection manually” and click “Next”...
Page 3 Select “Connect using a dial up modem” and click “Next” On the Select a Device page, select your PCMCIA card you will be using to connect to the internet.
Page 4 Type in the name of your Internet Service Provider eg: Verizon and click “Next” Enter in the phone number needed for your Internet Service Provider eg:Verizon is #777...
Page 5 Enter the correct Username and Password for your Internet Service Provider and click "Next", and "Finish" on the final dialog box. After clicking Finish, the Connect Dialog will pop up. Click Dial to make the connection. Username: Your cell phone number@vzw3g.com Password: Confirm password:...
