Quatech ETR-USB2 Install Manual

USB Extension Over CAT5

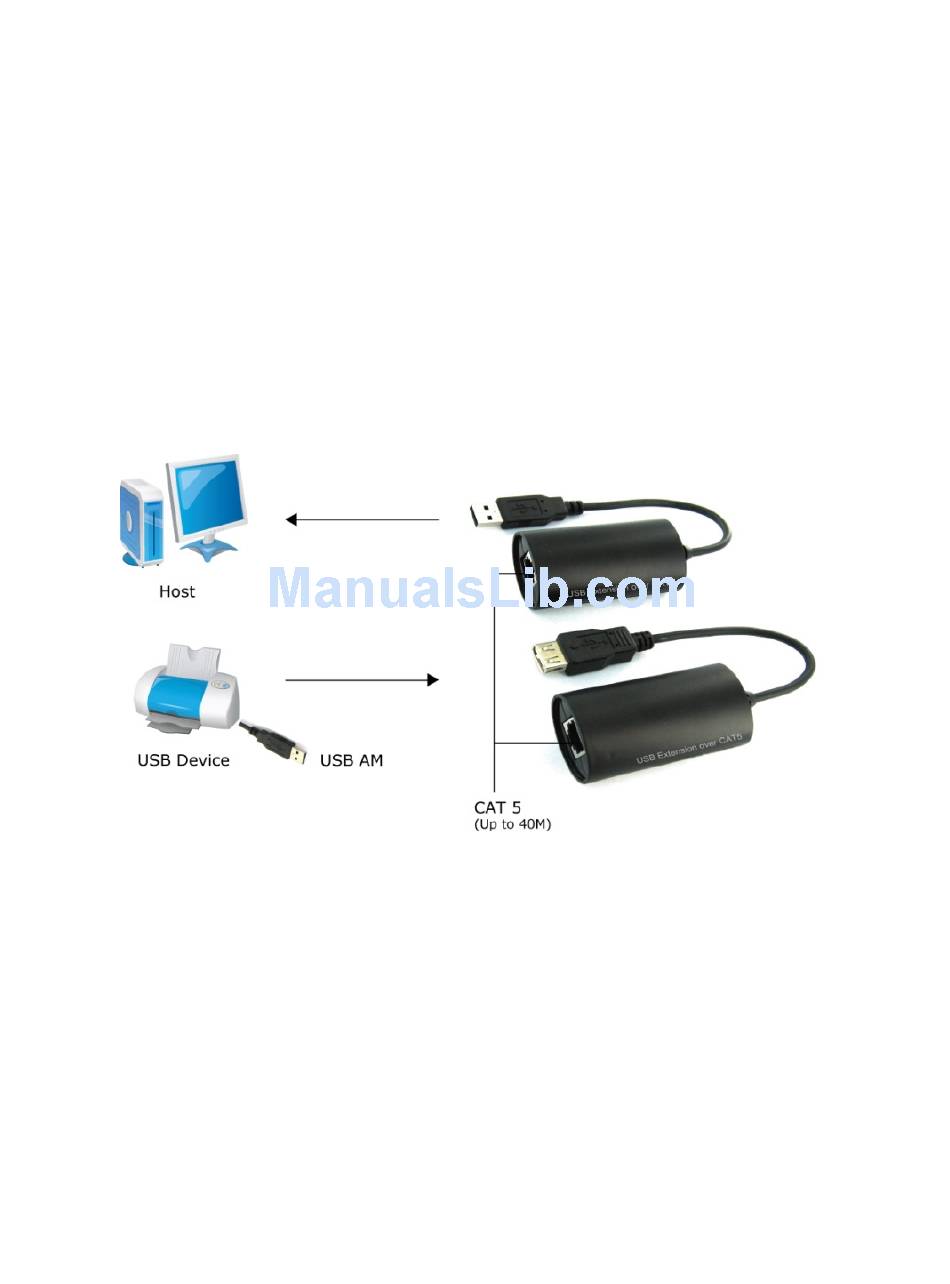

1. Installation Guide

1.1 Connect the (Transmitter side) USB Type-A Male connector to the Host Computer
1.2 Connect the RJ45 CAT 5 cable (up to 40m) between the Transmitter and the
Receiver
1.3 Connect the USB Device to the (Receiver side) USB Type A Female connector

2. Troubleshooting

If you are having trouble with the extension:
2.1 Try re-plugging each connector
2.2 Confirm the two Host Computer's USB ports are functional
2.3 Ensure the USB Device is turned 'ON'
2.4 Test and confirm the RJ45 CAT5 Patch Cord is functional
